DTC P0112, P0113: IAT Sensor: Wiring Diagram

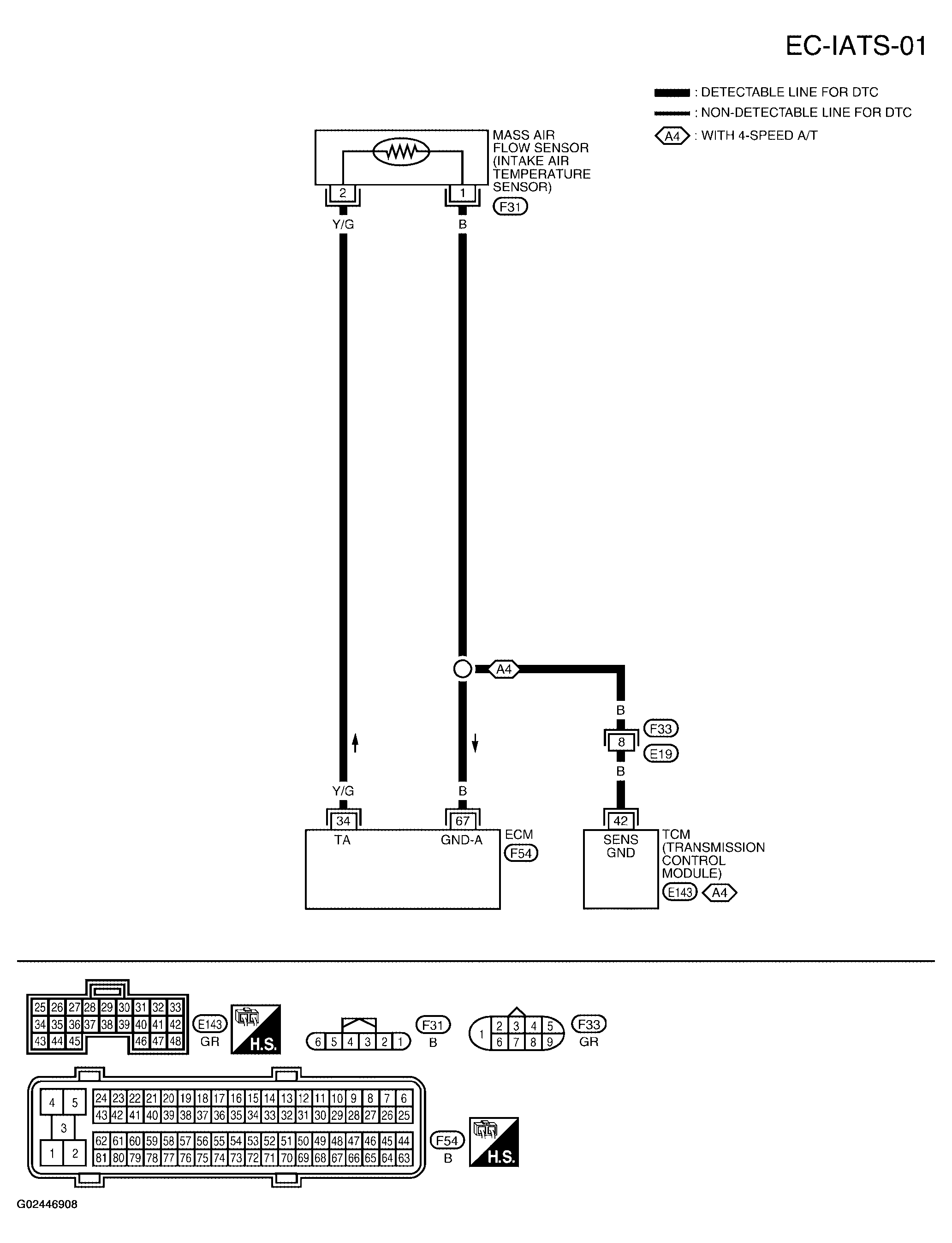

Fig 1: Wiring Diagram - IAT Sensor - EC-IATS-01

G02446908

Courtesy of NISSAN MOTOR CO., U.S.A.
