Home >> Nissan-Datsun >> 2005 >> Quest Base >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Removal and Installation >> Notes

Removal and Installation: Notes

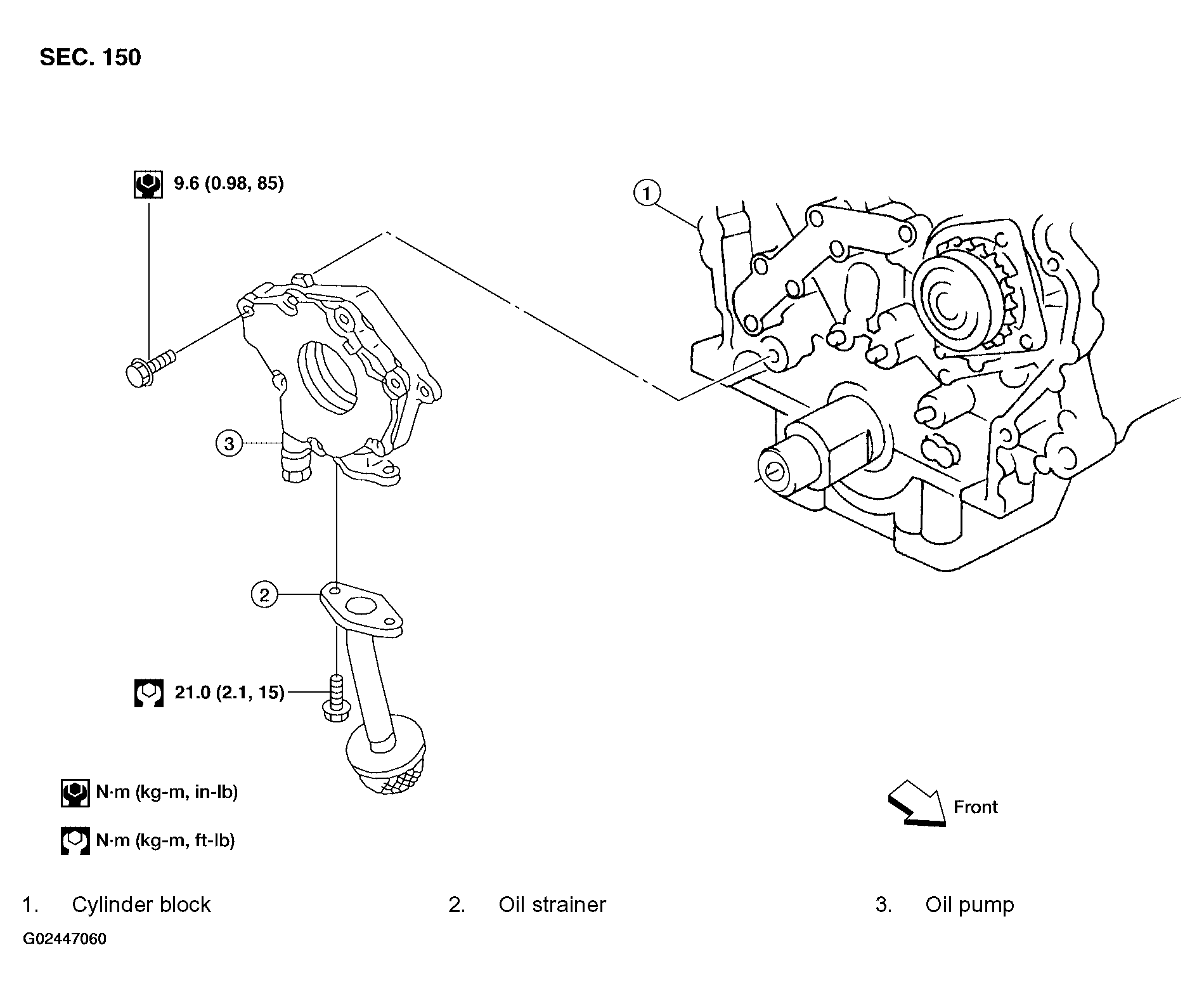

Fig 1: Oil Pump Replacement Components -- With Torque Specifications

G02447060

Courtesy of NISSAN MOTOR CO., U.S.A.
