Pathfinder SE, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Engine Control System
>>
Fuel Cut Control (at No Load and High Engine Speed)
>>
Input/Output Signal Chart
Input/Output Signal Chart

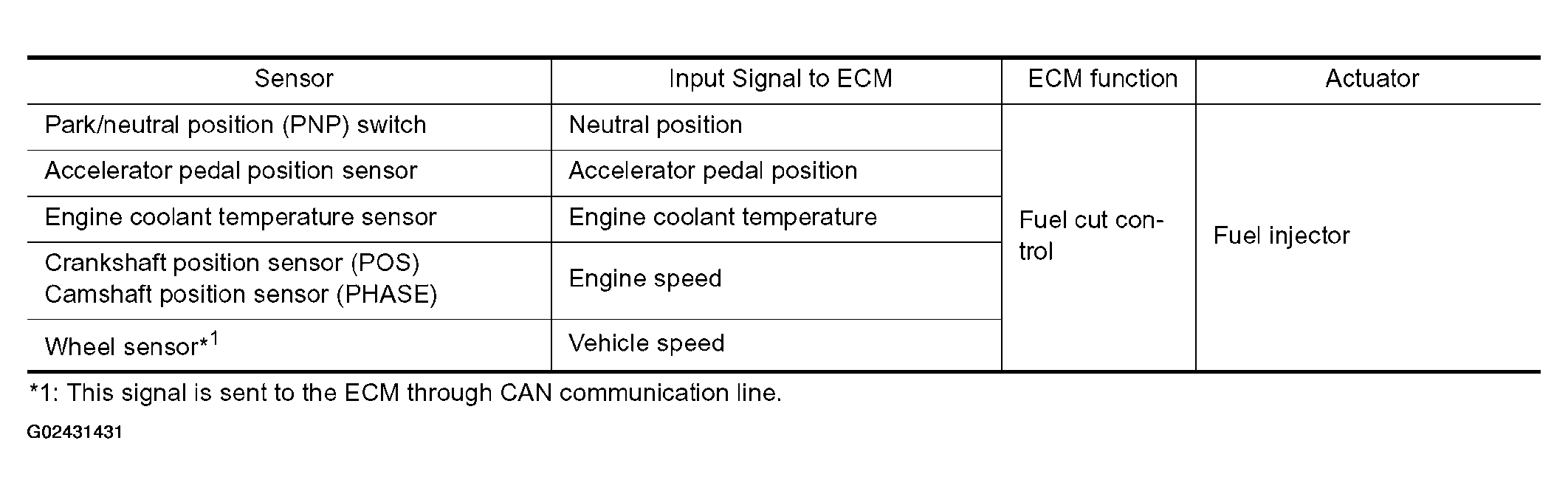

Fig 1: Input/Output Signal Chart - Fuel Cut Control (At No Load And High Engine Speed)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
