Home >> Nissan-Datsun >> 2005 >> Pathfinder SE, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Shift Control System >> Control Device Removal and Installation >> Notes

Control Device Removal and Installation: Notes

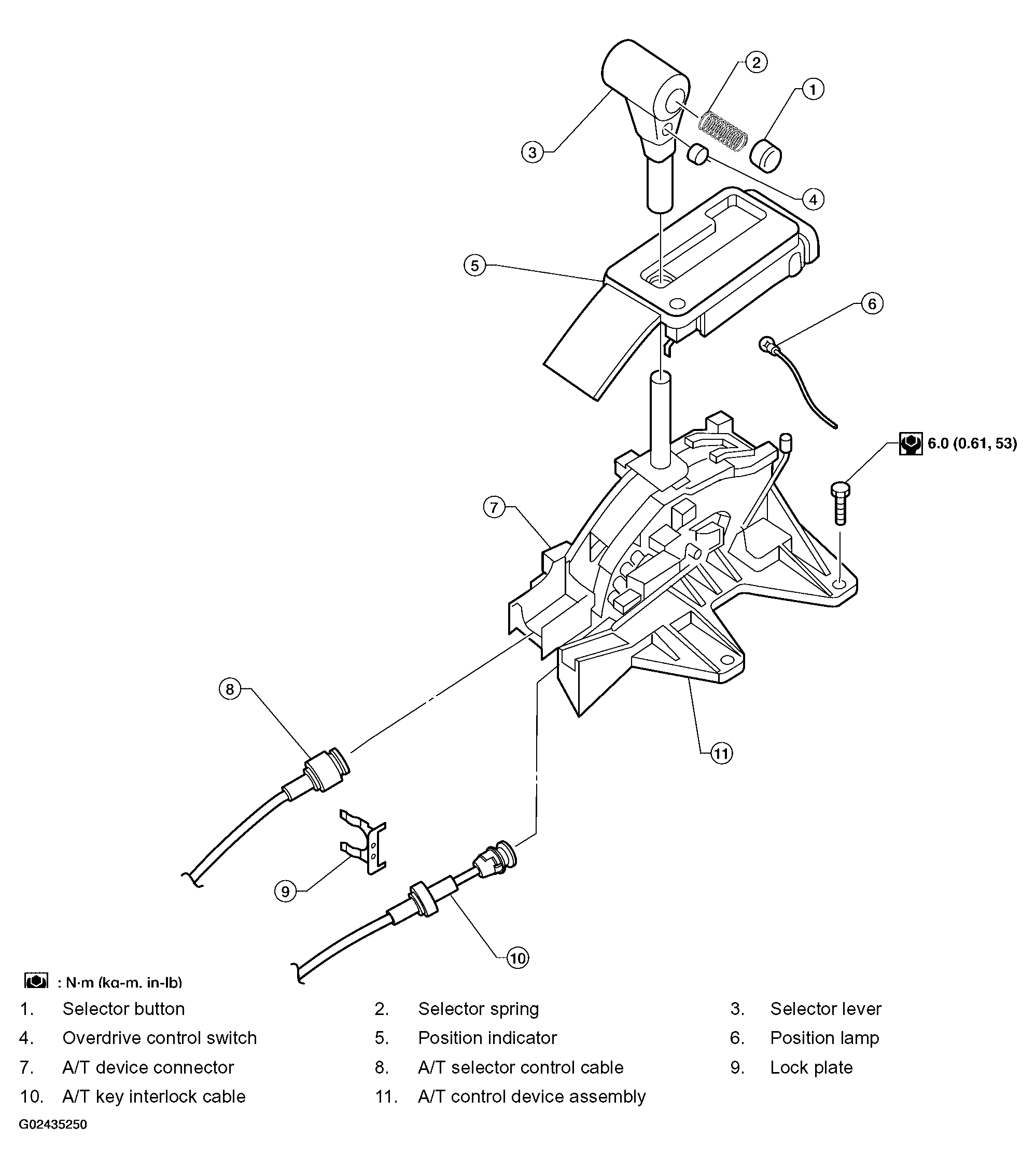

Fig 1: Exploded View Of Shift Control System With Torque Specifications

G02435250

Courtesy of NISSAN MOTOR CO., U.S.A.
