Adjustment of A/T Position
- Loosen nut of control cable.
- Place the manual lever and selector lever in "P" position.

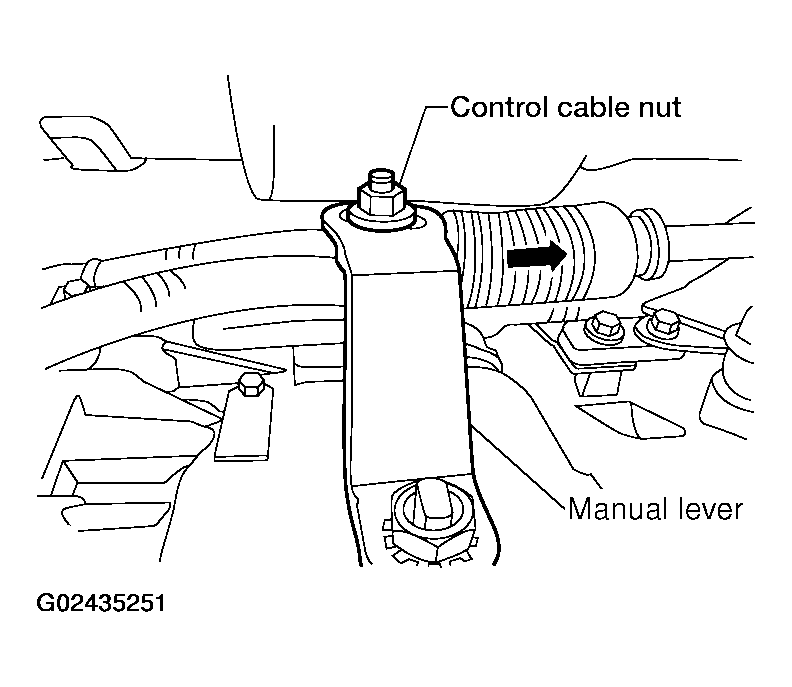

- Push the control cable in the direction shown with a force of 9.8 N (1 kg, 2.2 lb), release it. This is in the natural state, tighten control cable nut to specifications.
- Control cable nut: 14.5 N.m (1.5 kg-m, 11 ft-lb)
