Home >> Nissan-Datsun >> 2005 >> Pathfinder SE, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Repair For Component Parts >> Direct Clutch >> Components

Direct Clutch: Components

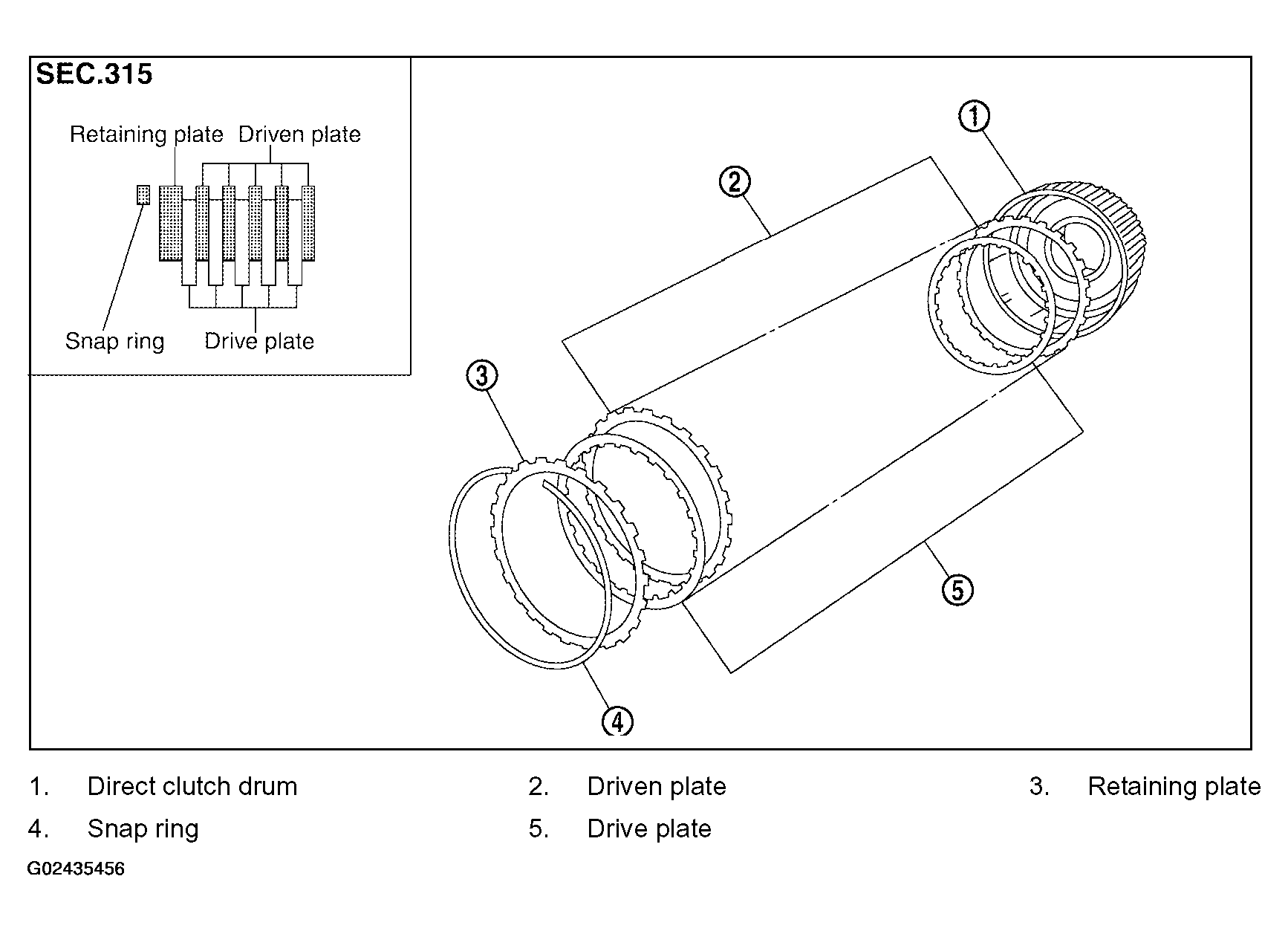

Fig 1: Identifying Direct Clutch Components

G02435456

Courtesy of NISSAN MOTOR CO., U.S.A.
