Automatic Transmission: Overhaul: Components

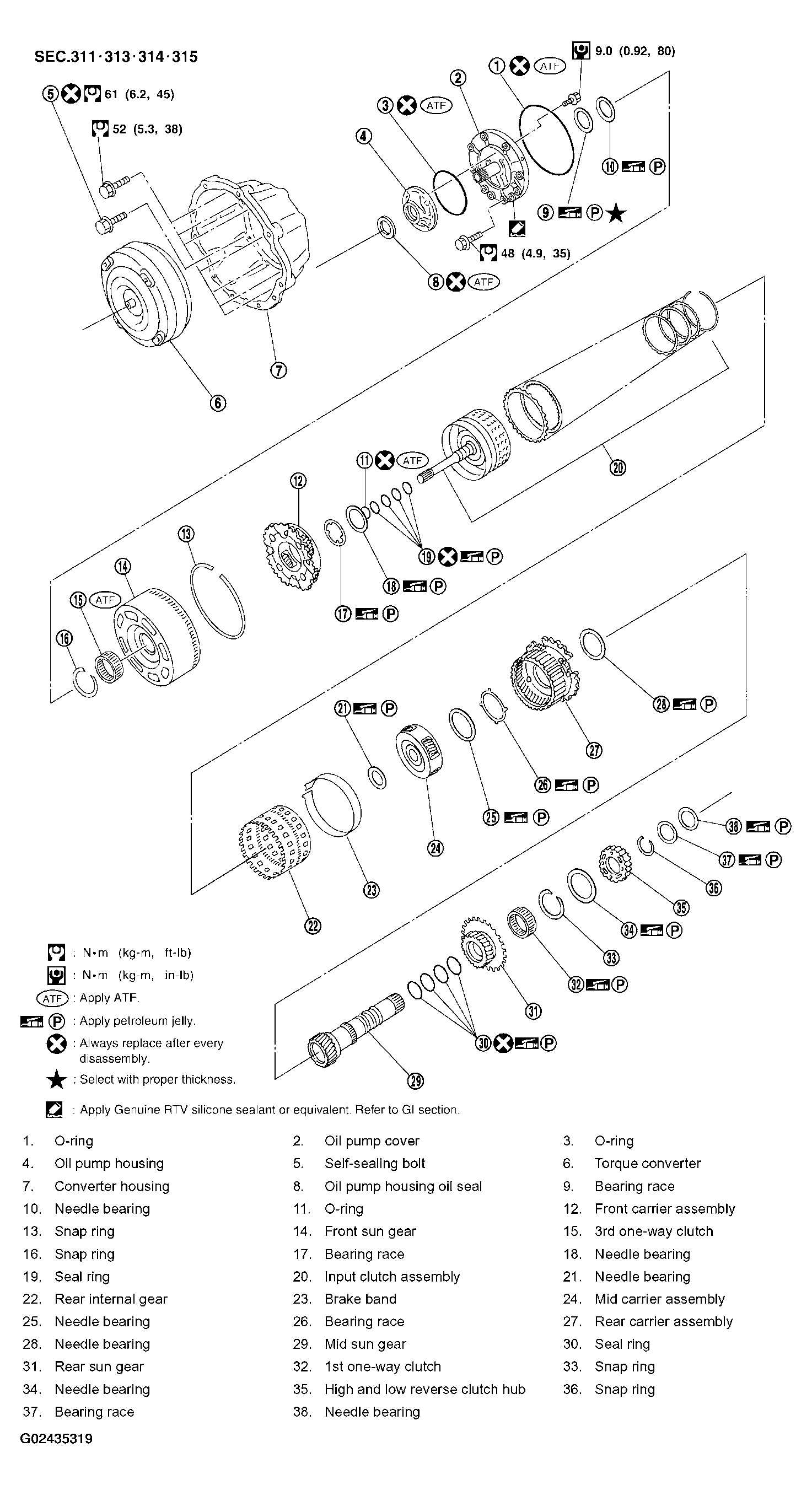

Fig 1: Exploded View Of Overhaul Components (1 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

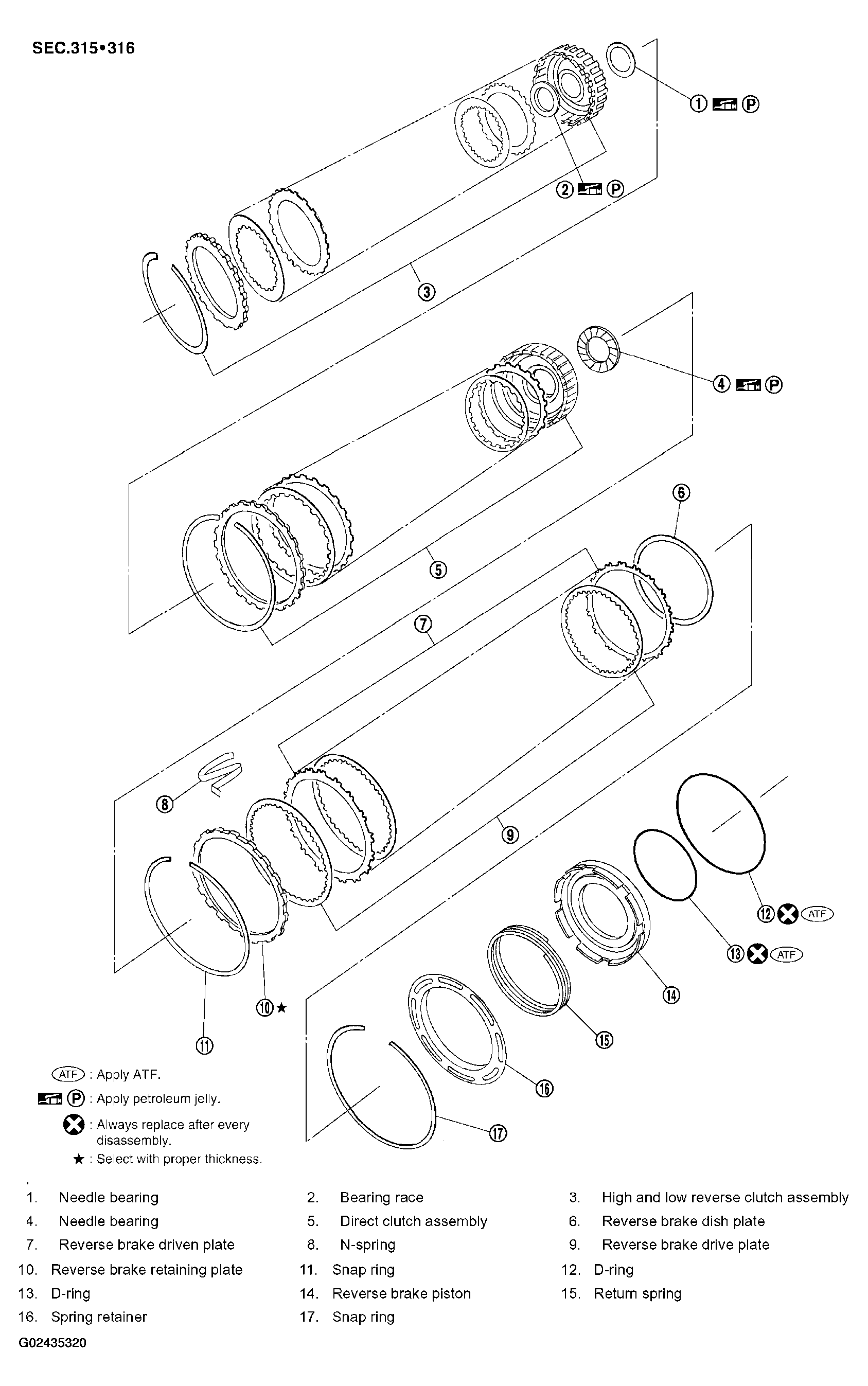

Fig 2: Exploded View Of Overhaul Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

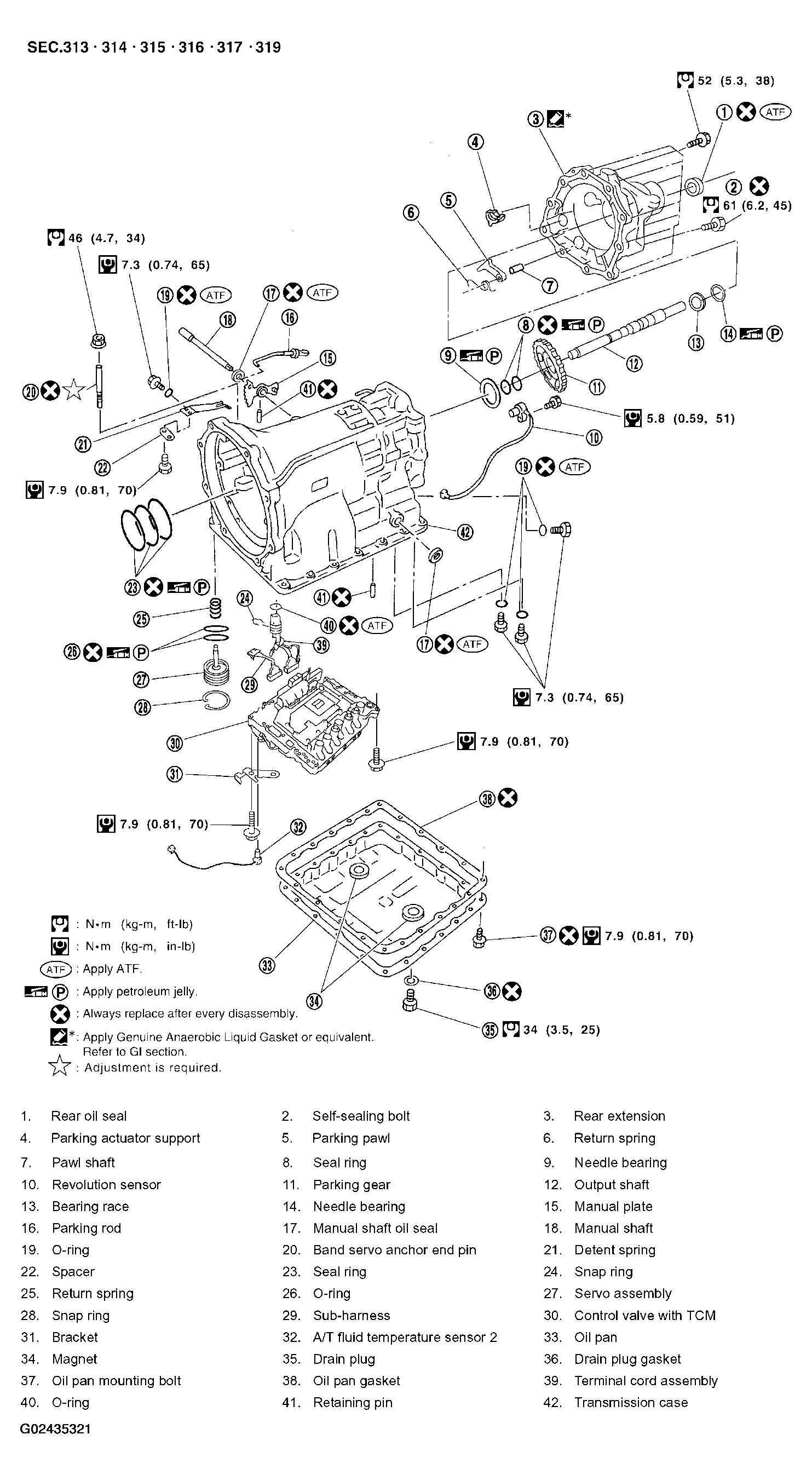

Fig 3: Exploded View Of Overhaul Components - 2WD Models 128 With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

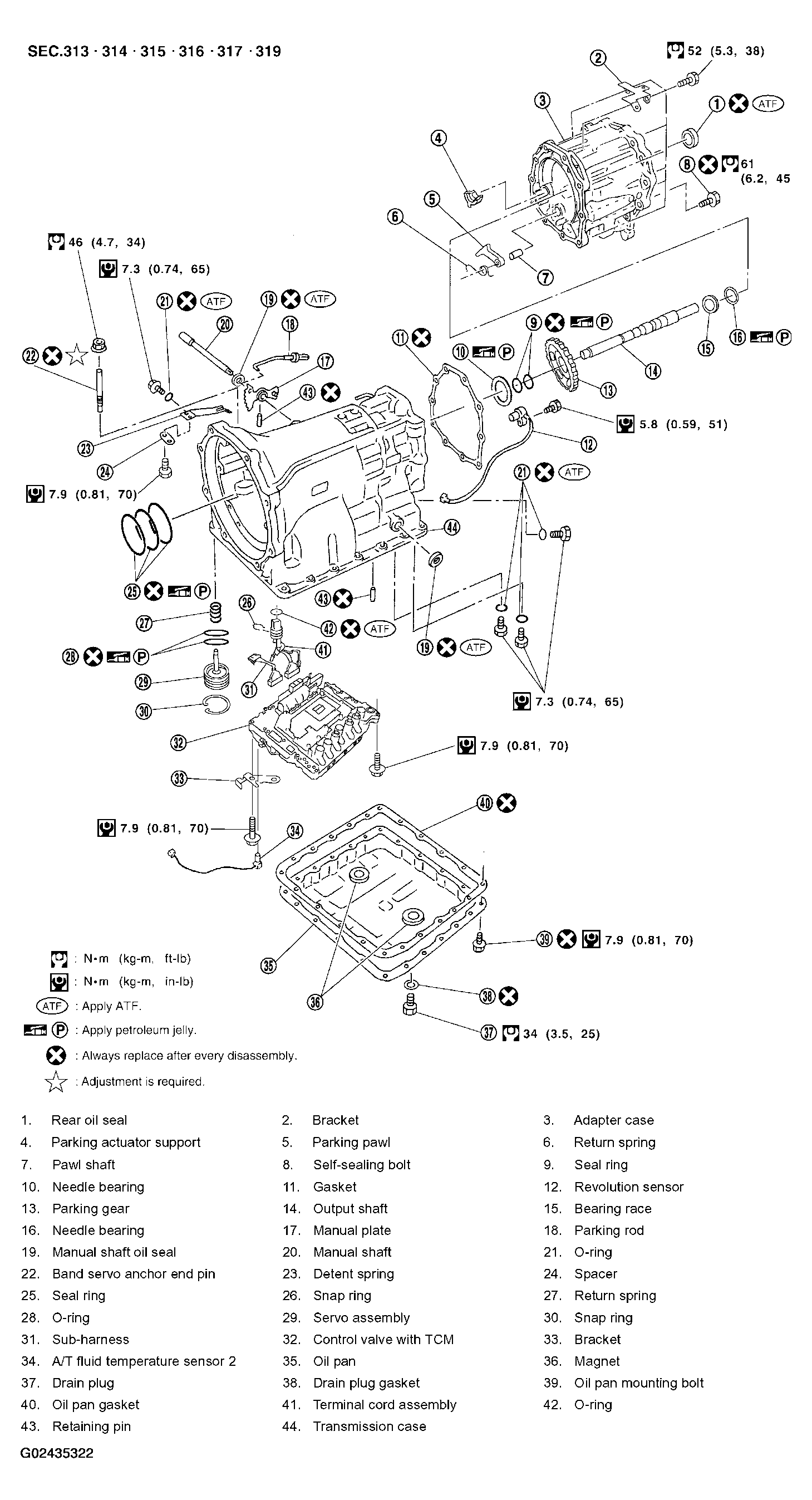

Fig 4: Exploded View Of Overhaul Components - 4WD Models 129 With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
