Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

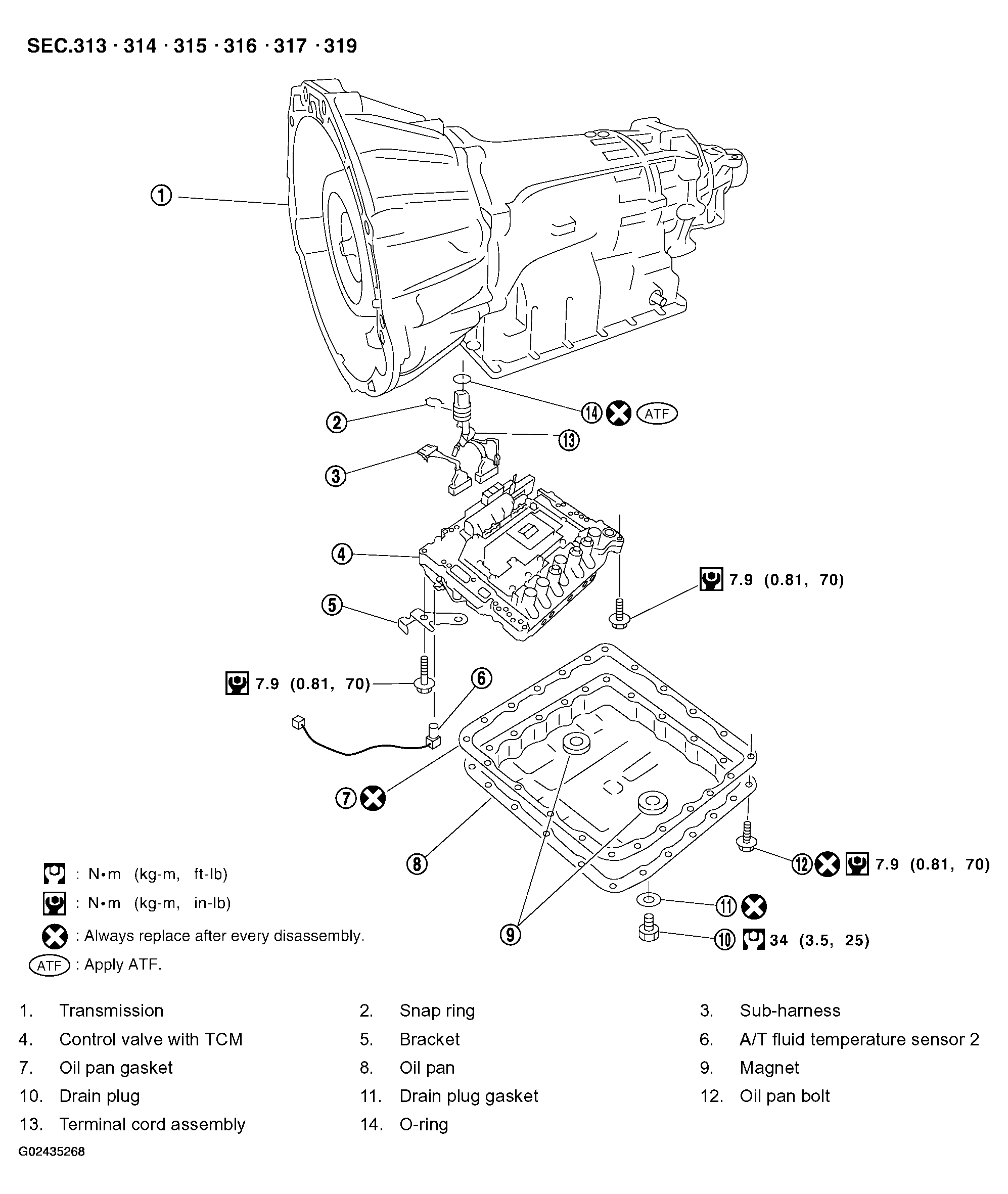

Fig 1: Locating A/T Fluid Temperature Sensor 2 With Torque Specifications

G02435268

Courtesy of NISSAN MOTOR CO., U.S.A.
