Torque Converter Clutch Control Valve Control: Notes

Lock-up Control System Diagram

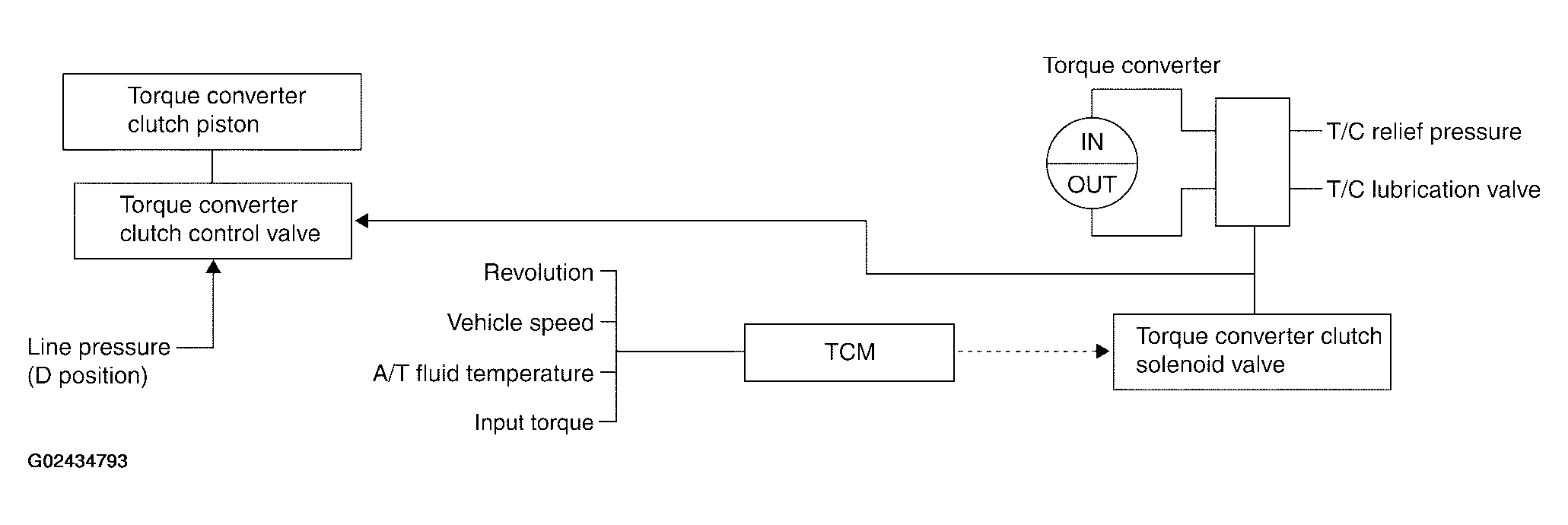

Fig 1: Lock-Up Control System Diagram

G02434793

Courtesy of NISSAN MOTOR CO., U.S.A.
