Cross-Sectional View
Cross-Sectional View

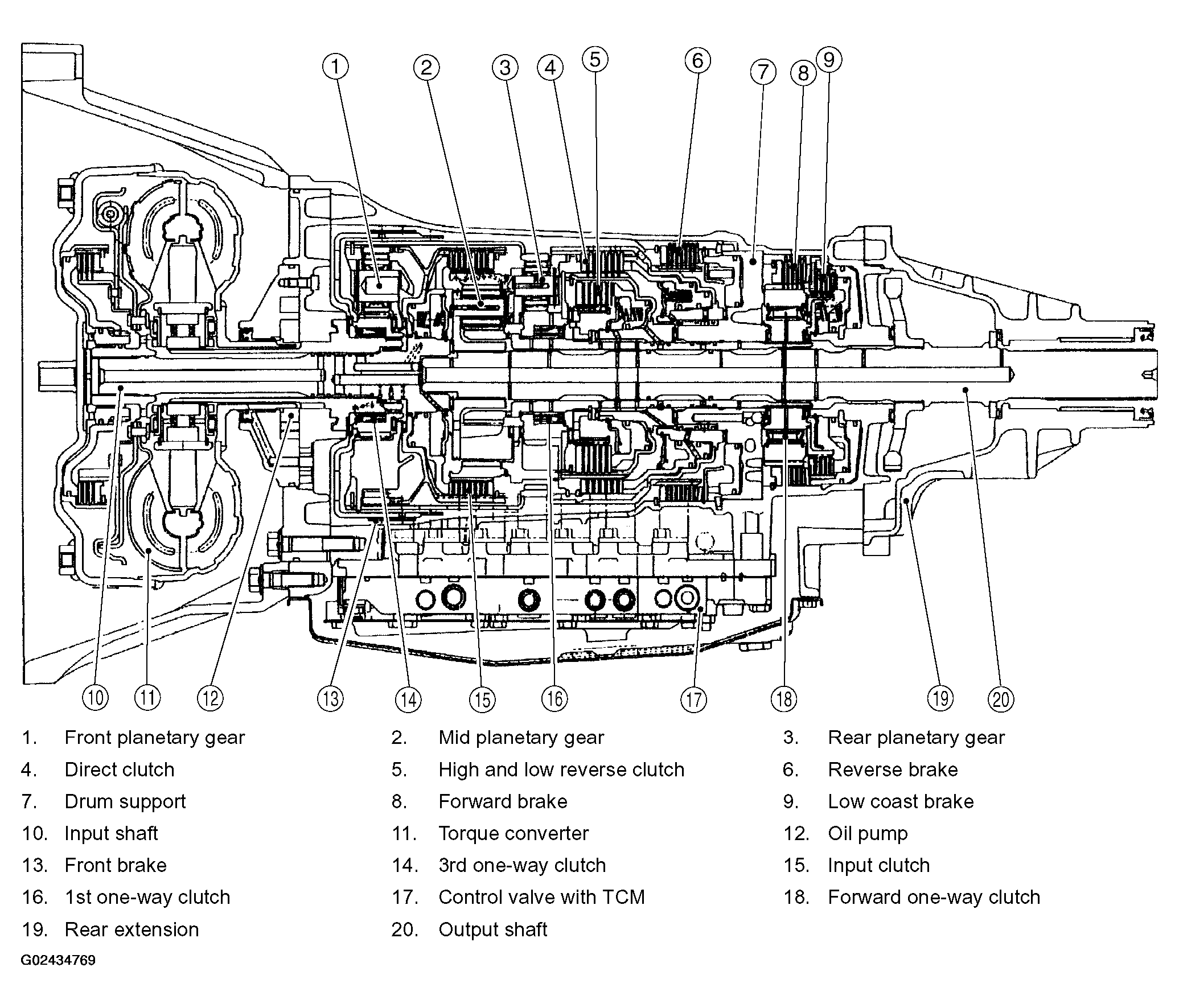

Fig 1: Cross-Sectional View Of A/T Control System (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

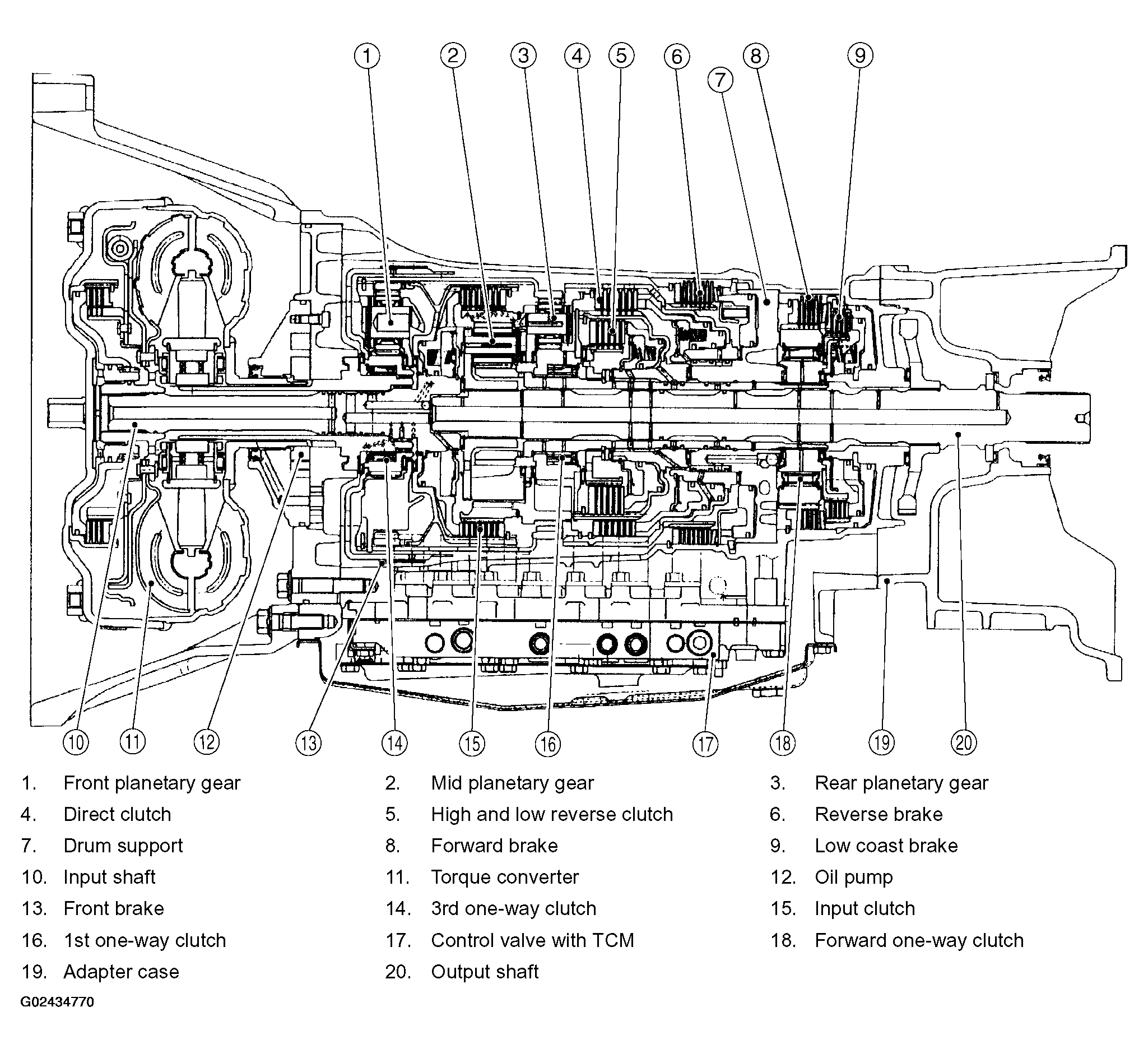

Fig 2: Cross-Sectional View Of A/T Control System (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
