Inspection After Assembly

When the steering wheel does not turn smoothly, check as follows:

1. Check the steering column for the following:
   • Damage to the column tube or bearings
   • Wear around the seal edges
   • Corrosion or pitting around the seal sliding area

   Replace the steering column as an assembly, if necessary.

   CAUTION:

   • Do not exert any axial load or impact to the steering column.
   • Replace the column if it is depleted of grease, worn, damaged, or if any scratches or coating separation is present on the shaft seal area.
2. If the vehicle has been in a collision, or if noises are heard coming from the steering column, check column length "L1" and "L2" as shown in Fig 1. If out of specification, replace the steering column as an assembly.
   • Steering column length
   • L1: 165.1 mm (6.500 in)
   • L2: 258.0 mm (10.16 in)

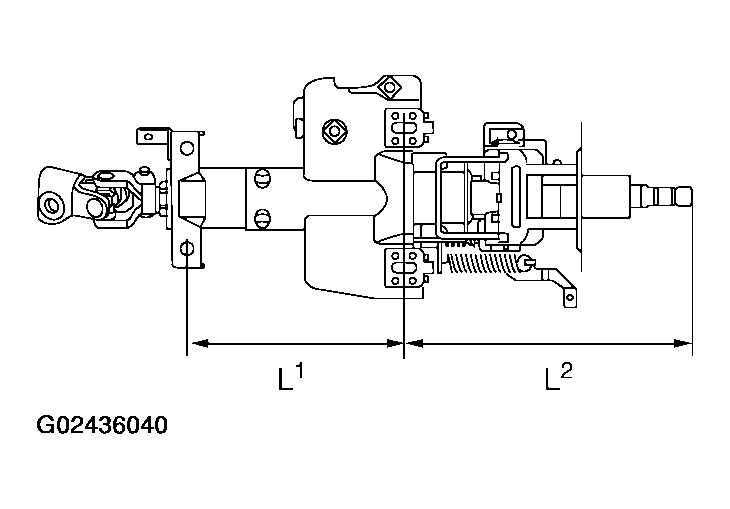

   Fig 1: Identifying Steering Column Length

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check the tilt device for proper operation range.
   • Range "A": 73.8 mm (2.906 in)

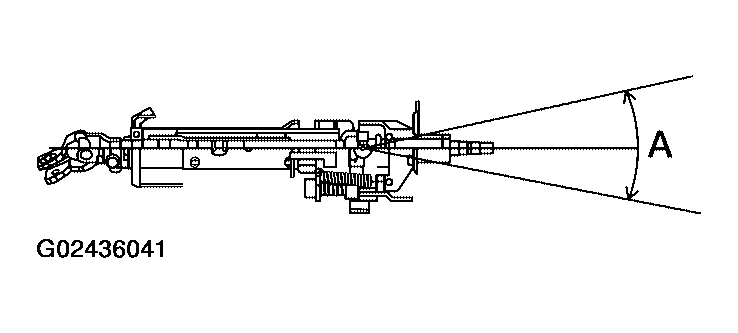

   Fig 2: Identifying Steering Column Tilt Range

   Courtesy of NISSAN MOTOR CO., U.S.A.
