With CONSULT-II

  1. Turn ignition switch ON.
  2. Fully depress the brake pedal for at least 5 seconds.
  3. Erase the DTC with CONSULT-II.
  4. Select "DATA MONITOR" mode with CONSULT-II.

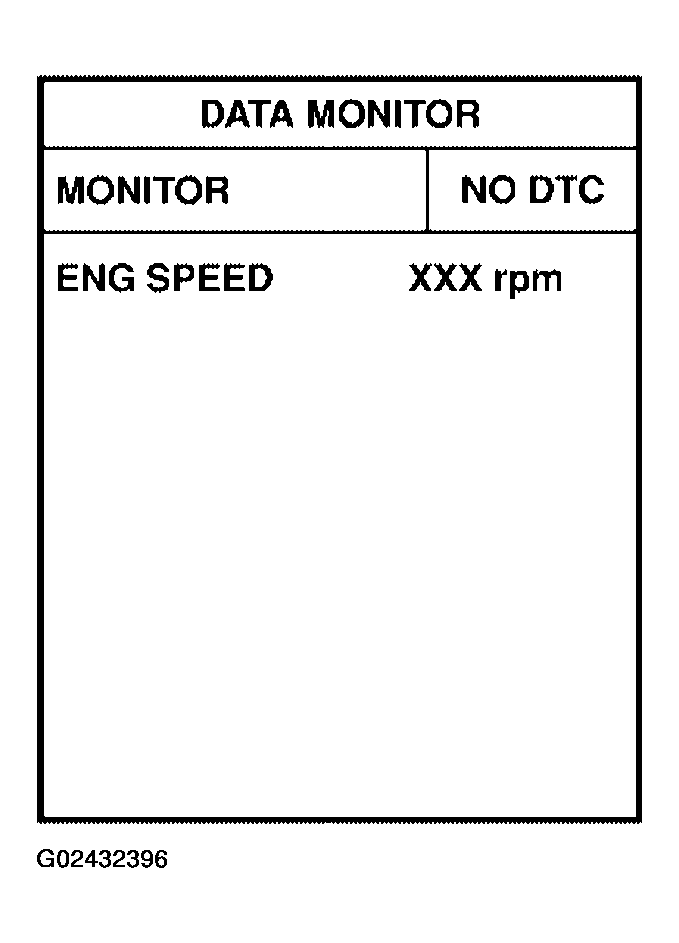

    Fig 1: CONSULT-II Display - Data Monitor Mode
    G02432396Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
