With GST

Check air passage continuity and operation delay time under theconditions listed in VIAS SOLENOID VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE - WITHOUT CONSULT-II .

VIAS SOLENOID VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE - WITHOUT CONSULT-II

Condition Air passage continuity between A and B Air passage continuity between A and C
12V direct current supply between terminals 1 and 2 Yes No
No supply No Yes

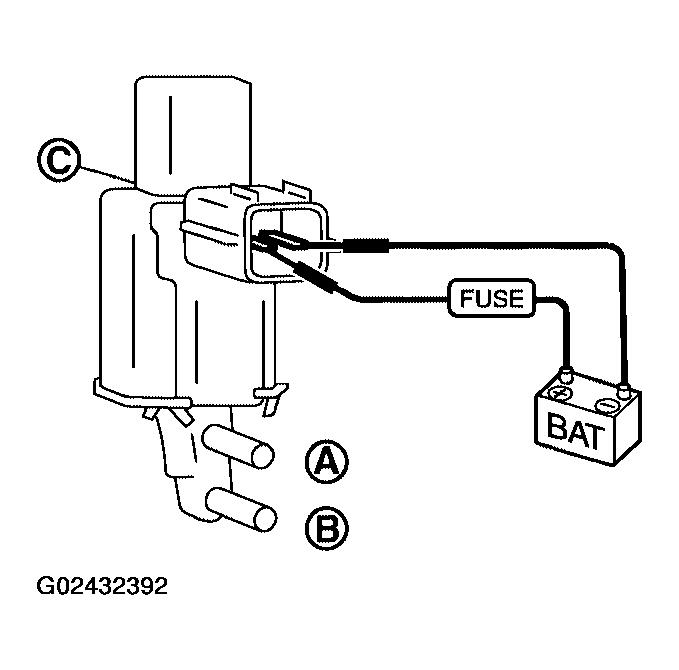

Fig 1: Checking VIAS Control Solenoid Valve Air Passage Continuity
G02432392Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
