With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
  4. Check air passage continuity and operation delay time under the conditions listed in VIAS SOLENOID VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE .
    VIAS SOLENOID VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE - WITH CONSULT-II

    Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C
    ON Yes No
    OFF No Yes

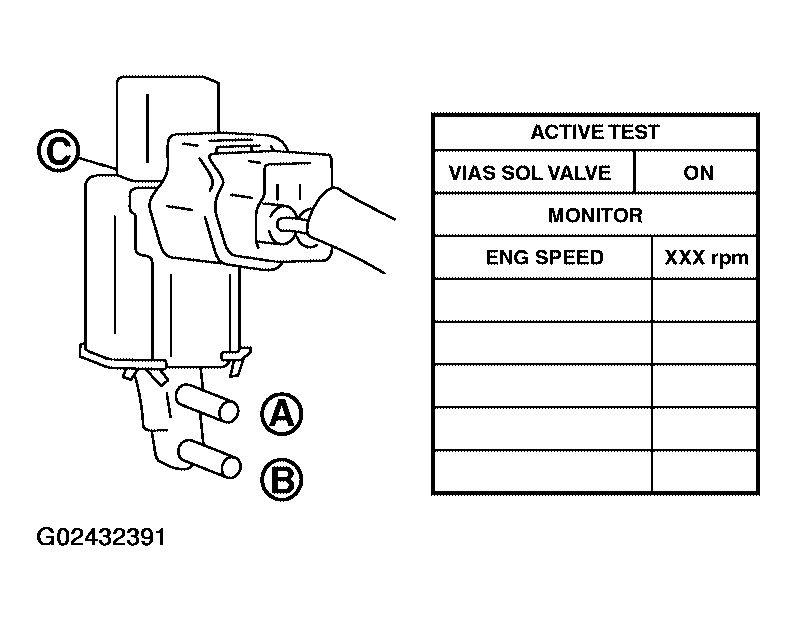

    Fig 1: Identifying VIAS Control Solenoid Valve Air Passages
    G02432391Courtesy of NISSAN MOTOR CO., U.S.A.

    Operation takes less than 1 second.
