With Consult-II

  1. Start engine (TCS switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.

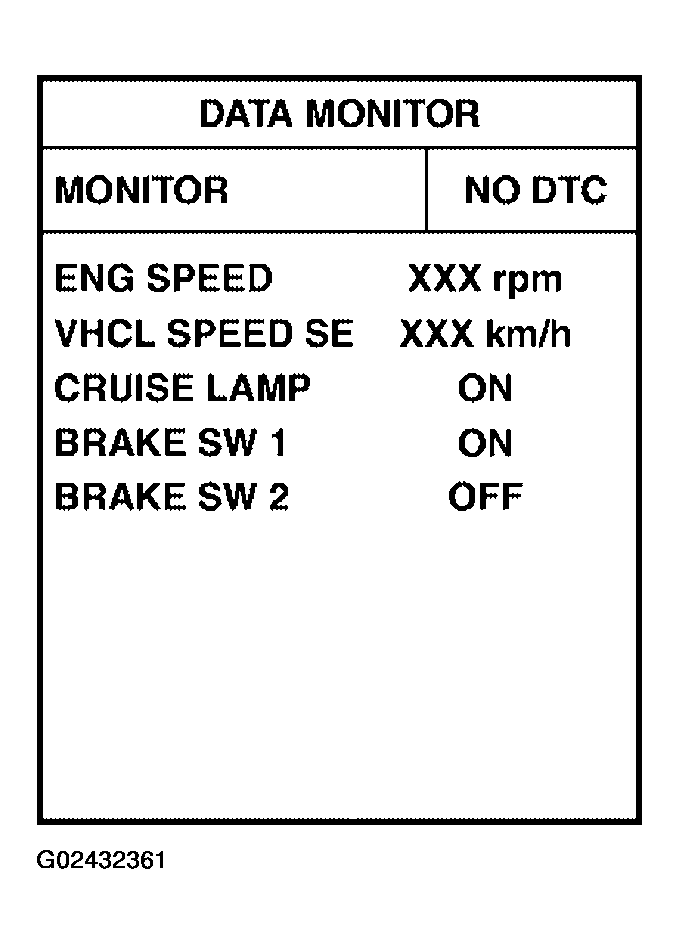

    Fig 1: CONSULT-II Display - Data Monitor Mode
    G02432361Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press CRUISE switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the conditions listed in DTC P1572 CONFIRMATION PROCEDURE - WITH CONSULT-II .
    DTC P1572 CONFIRMATION PROCEDURE - WITH CONSULT-II

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

    If DTC is detected, go to DIAGNOSTIC PROCEDURE .

    If DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the conditions listed in VEHICLE SPEED AND SELECTOR LEVER POSITION REFERENCE .
    VEHICLE SPEED AND SELECTOR LEVER POSITION REFERENCE

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned condition.
  6. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
