With Consult-II

  1. Start engine (TCS switch or VDC switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position. If NG, go to DIAGNOSTIC PROCEDURE . If OK, go to following step.
  3. Select "DATA MONITOR" mode with CONSULT-II.

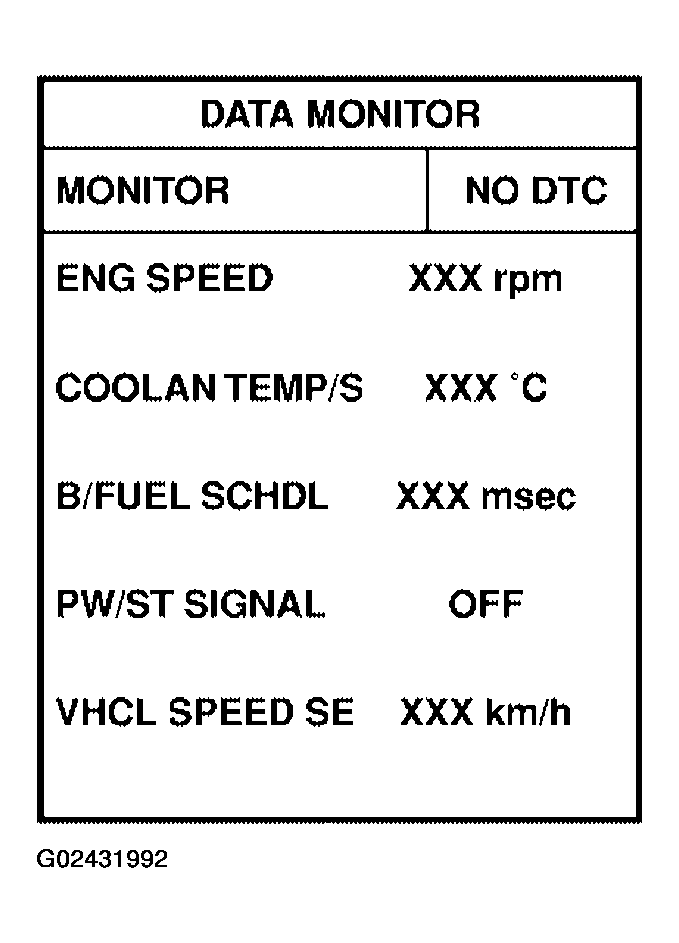

    Fig 1: CONSULT-II Display - Data Monitor Mode
    G02431992Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Warm engine up to normal operating temperature.
  5. Maintain the conditions listed in DTC P0500 CONFIRMATION PROCEDURE CONDITIONS  for at least 60 consecutive seconds.
    DTC P0500 CONFIRMATION PROCEDURE CONDITIONS

    ENG SPEED 1, 700 - 6, 000 rpm
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL 6.3 - 31.8 msec
    Selector lever Except P or N position
    PW/ST SIGNAL OFF
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
