Work Item
Work Item

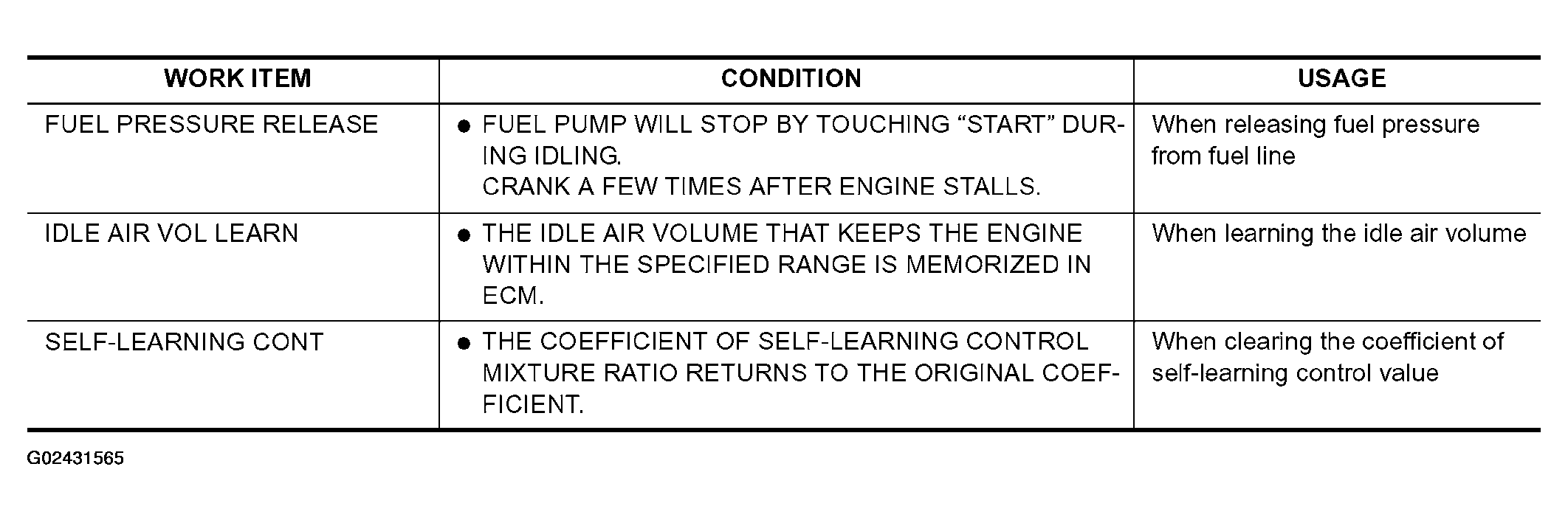

Fig 1: Work Item And Condition Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

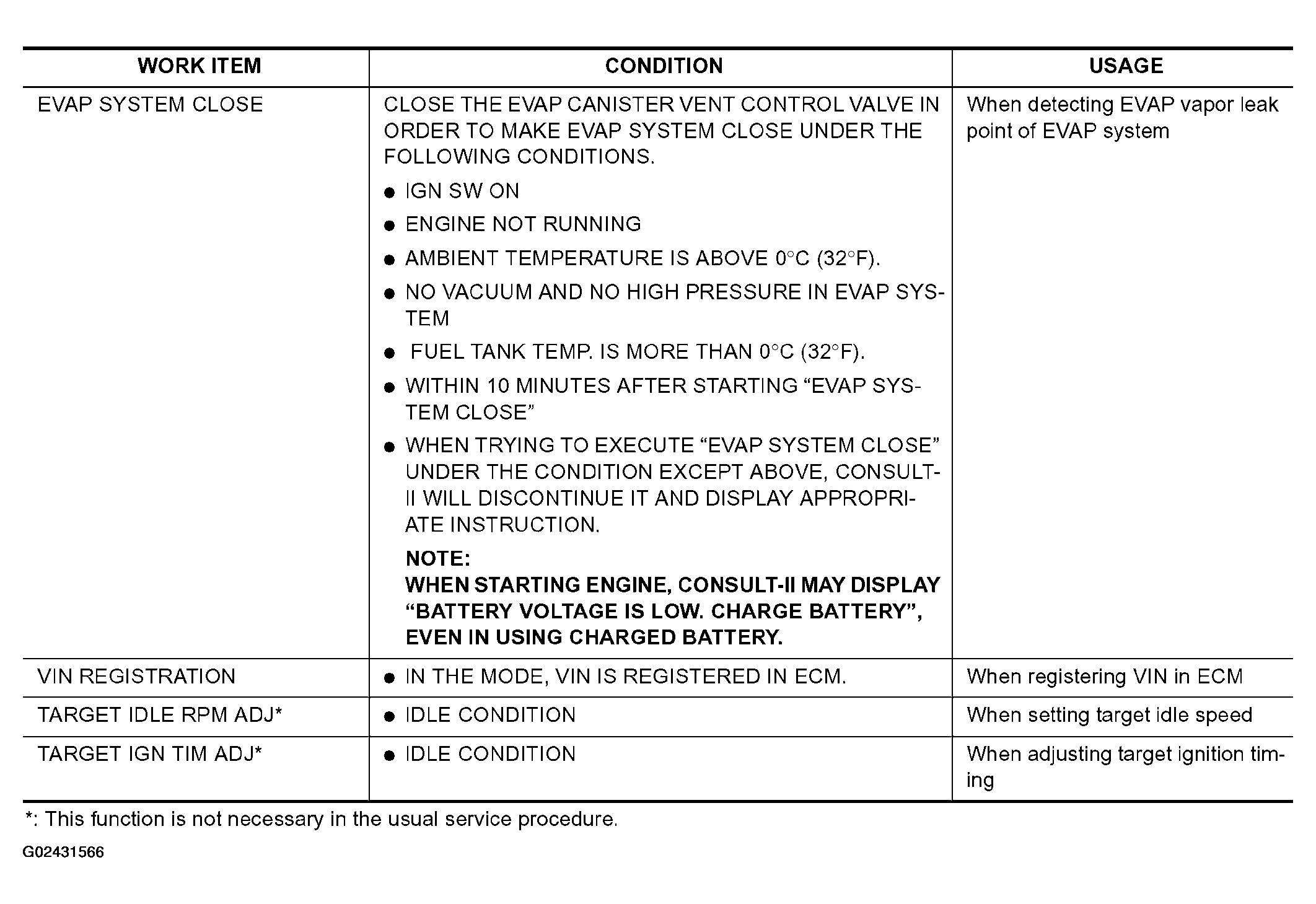

Fig 2: Work Item And Condition Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
