CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

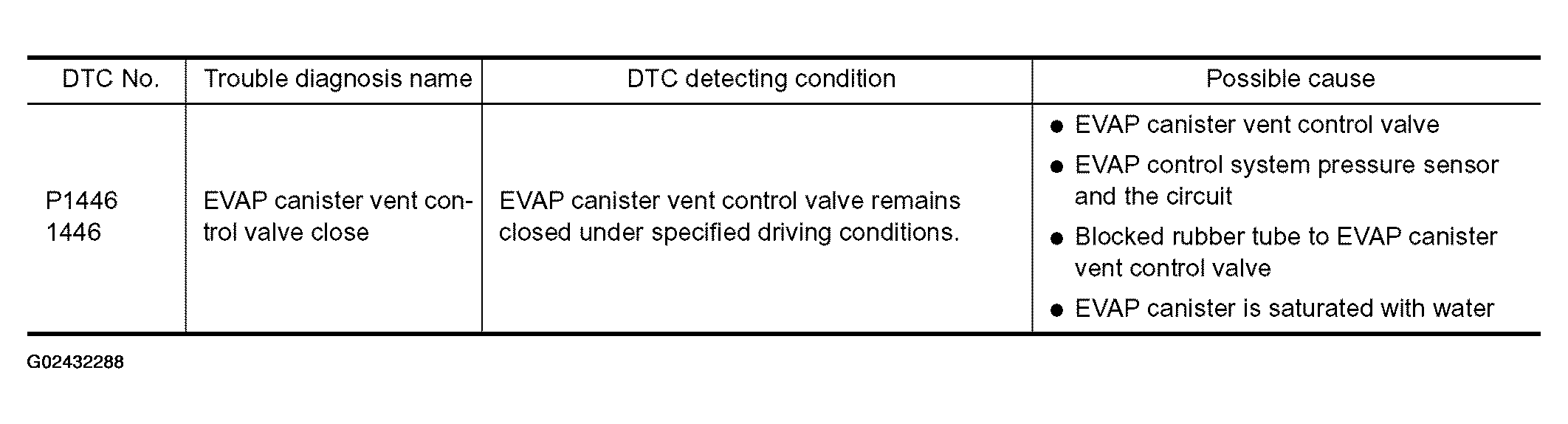

Fig 1: CONSULT-II Reference Value Chart - Condition/Possible Cause

G02432288

Courtesy of NISSAN MOTOR CO., U.S.A.
