DTC P0117, P0118: ECT Sensor: Wiring Diagram

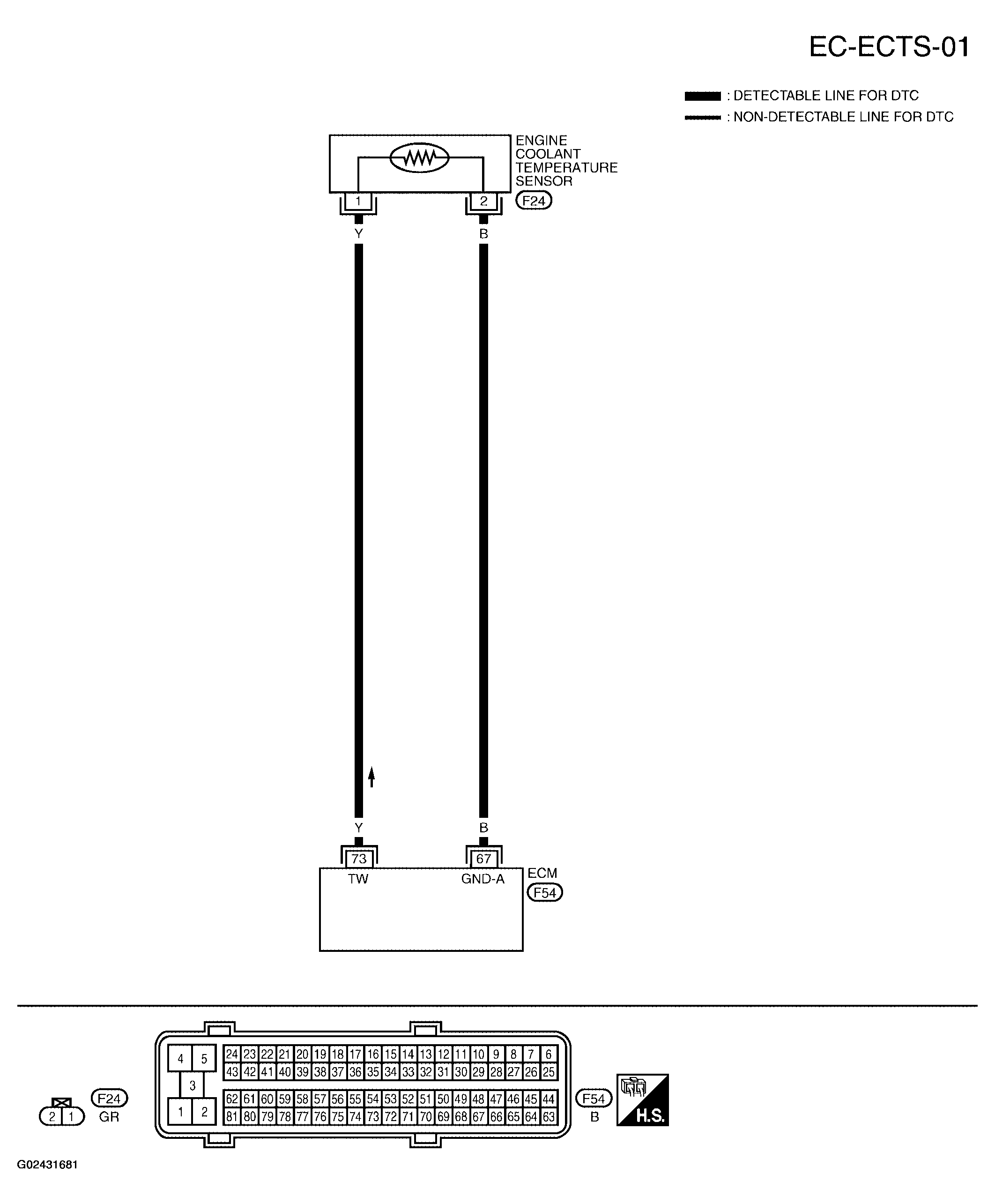

Fig 1: Wiring Diagram - Engine Coolant Temperature Sensor (EC-ECTS-01)

G02431681

Courtesy of NISSAN MOTOR CO., U.S.A.
