Nissan-Datsun
>>
2005
>>
Pathfinder LE, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
DTC P0101: MAF Sensor
>>
On Board Diagnosis Logic
On Board Diagnosis Logic

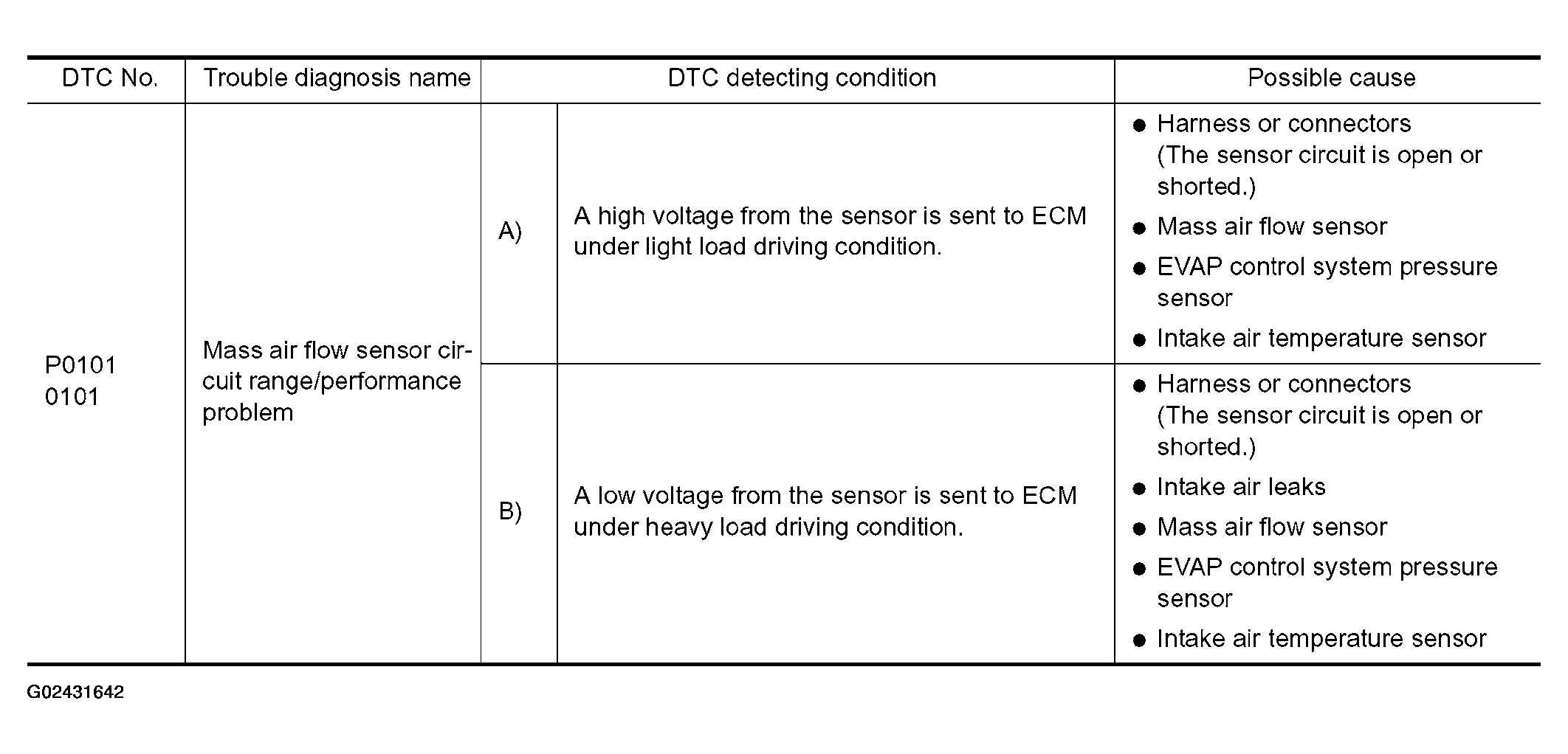

Fig 1: DTC P0101 Problem Symptom Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
