Nissan-Datsun
>>
2005
>>
Pathfinder LE, RWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Lubrication System
>>
System Chart
System Chart

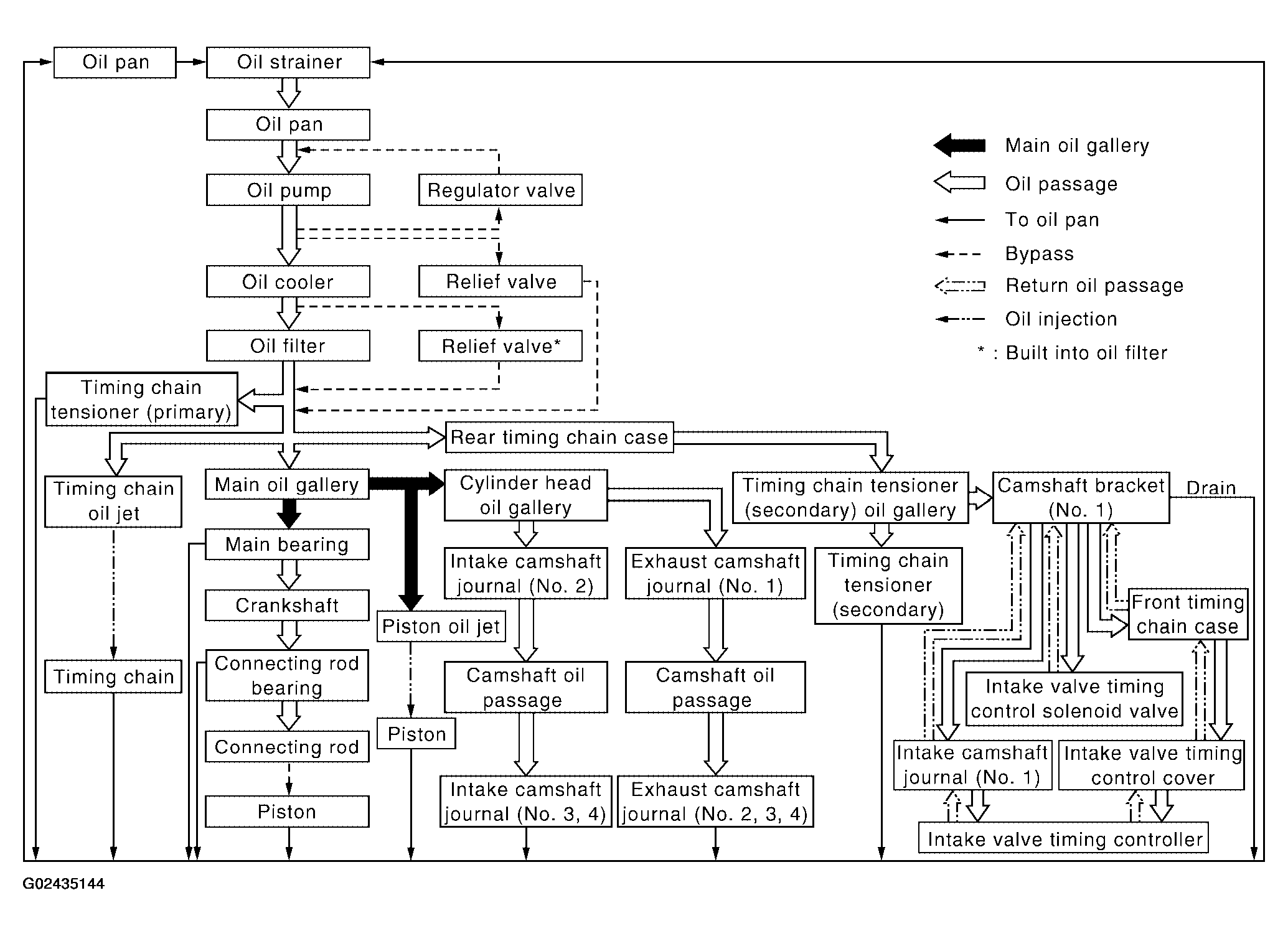

Fig 1: Lubrication System Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
