Nissan-Datsun
>>
2005
>>
Pathfinder LE, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
TX14B
>>
Trouble Diagnosis
>>
Transfer Control Unit Input/Output Signal Reference Values
>>
Transfer Control Unit Inspection Table
>>
Specifications with CONSULT-II
Specifications with CONSULT-II

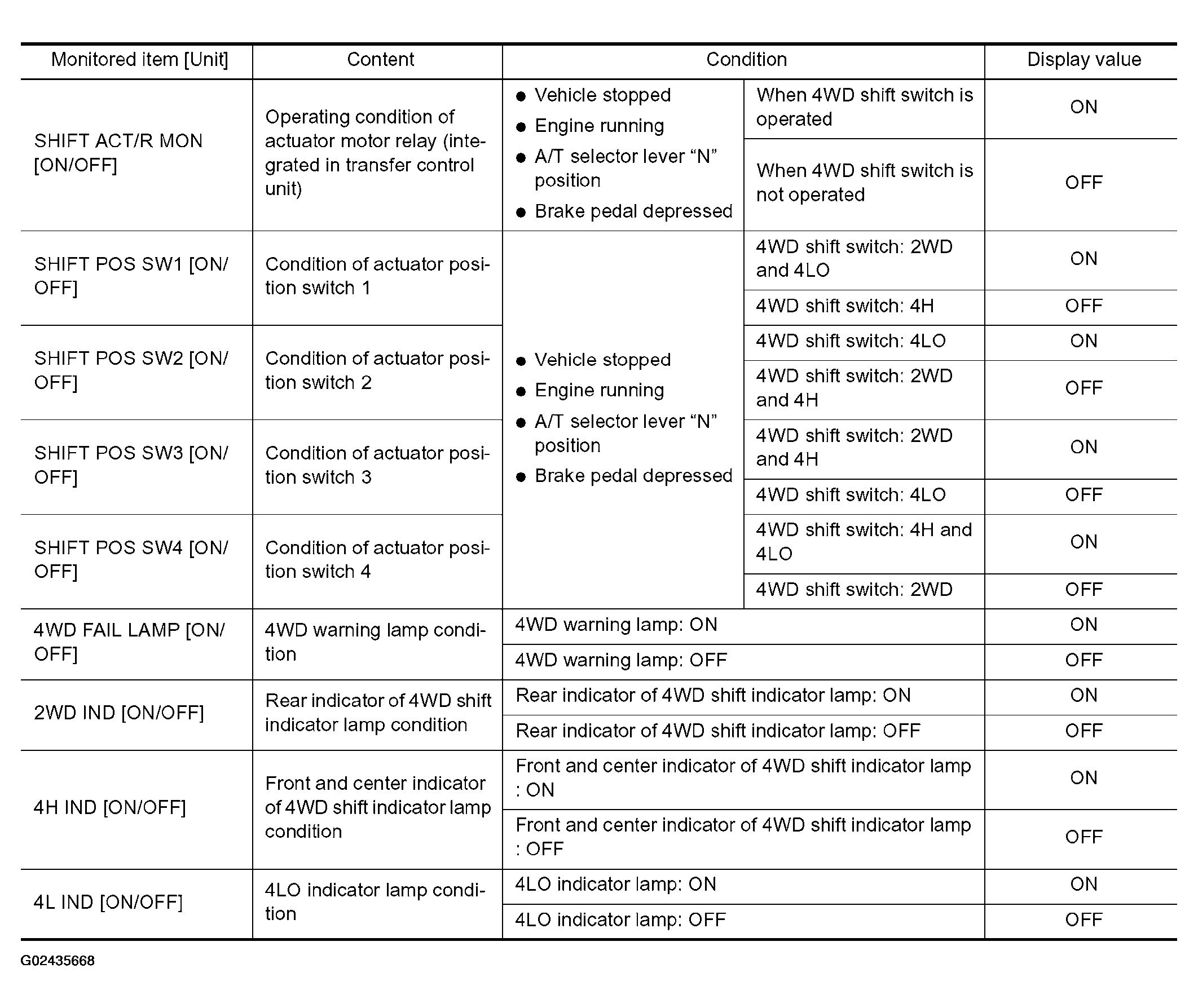

Fig 1: CONSULT-II Transfer Control Unit Monitored Items Chart - TX14B (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

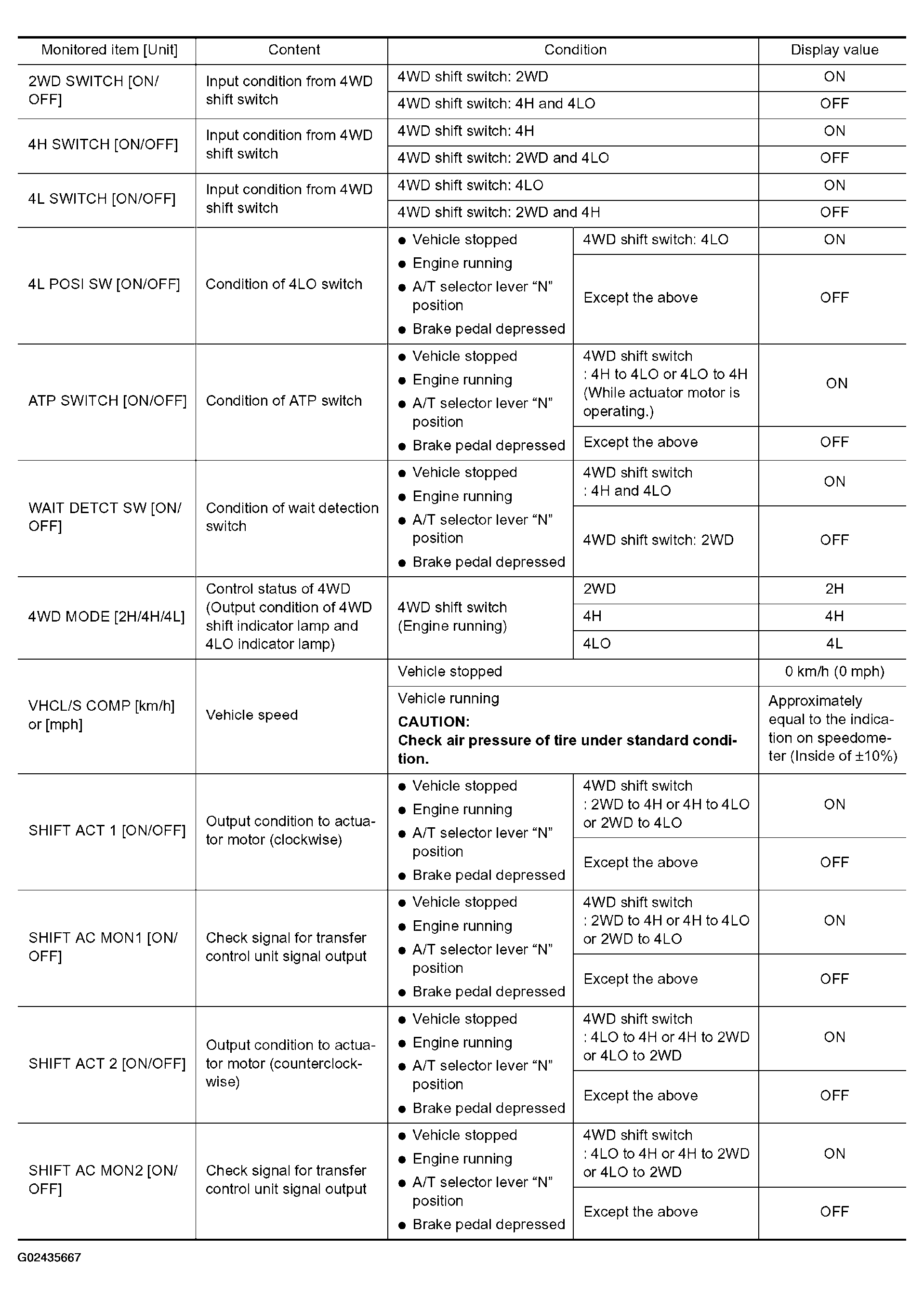

Fig 2: CONSULT-II Transfer Control Unit Monitored Items Chart - TX14B (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

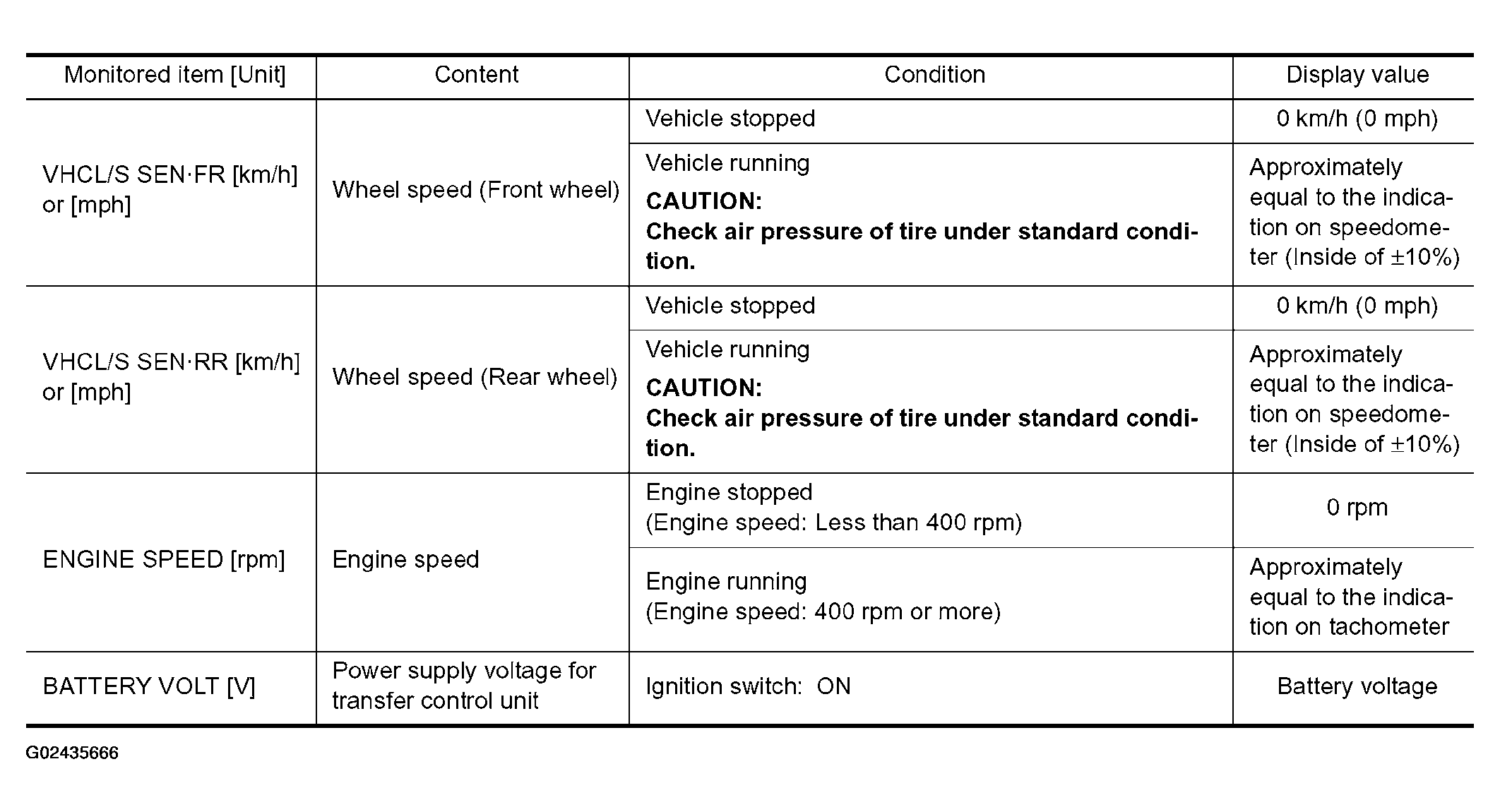

Fig 3: CONSULT-II Transfer Control Unit Monitored Items Chart - TX14B (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
