Specifications Between Transfer Control Unit Terminals

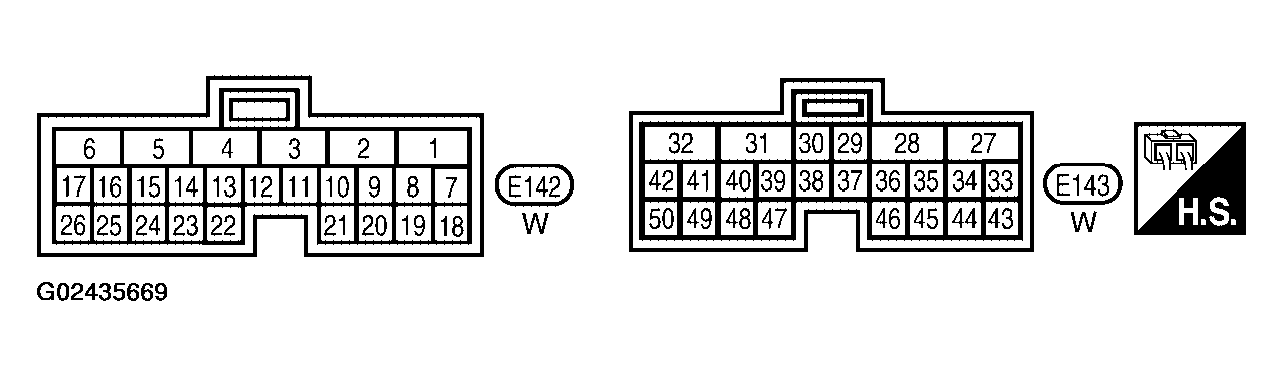

Fig 1: Identifying Transfer Control Unit Terminal Connector Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Data are reference value and are measured between each terminal and ground.

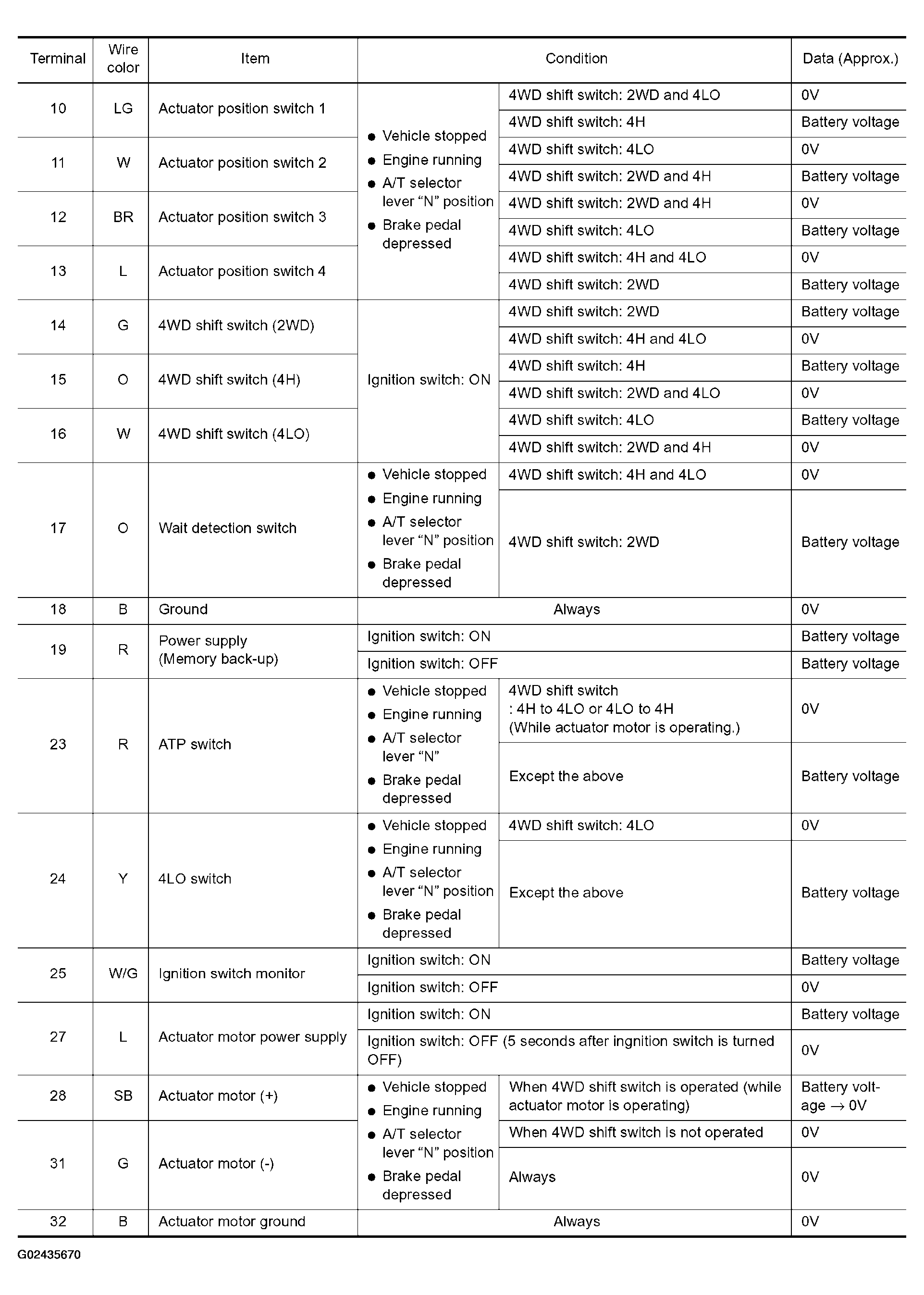

TRANSFER CONTROL UNIT TERMINAL CONNECTOR REFERENCE TABLE - TX14B (1 Of 3)

Terminal	Wire color	Item	Condition	Data (Approx.)
1	L	CAN-H	-	-
2	P	CAN-L	-	-
3	SB	K-Line (CONSULT-II signal)	-	-
6	B	Ground	Always	0V

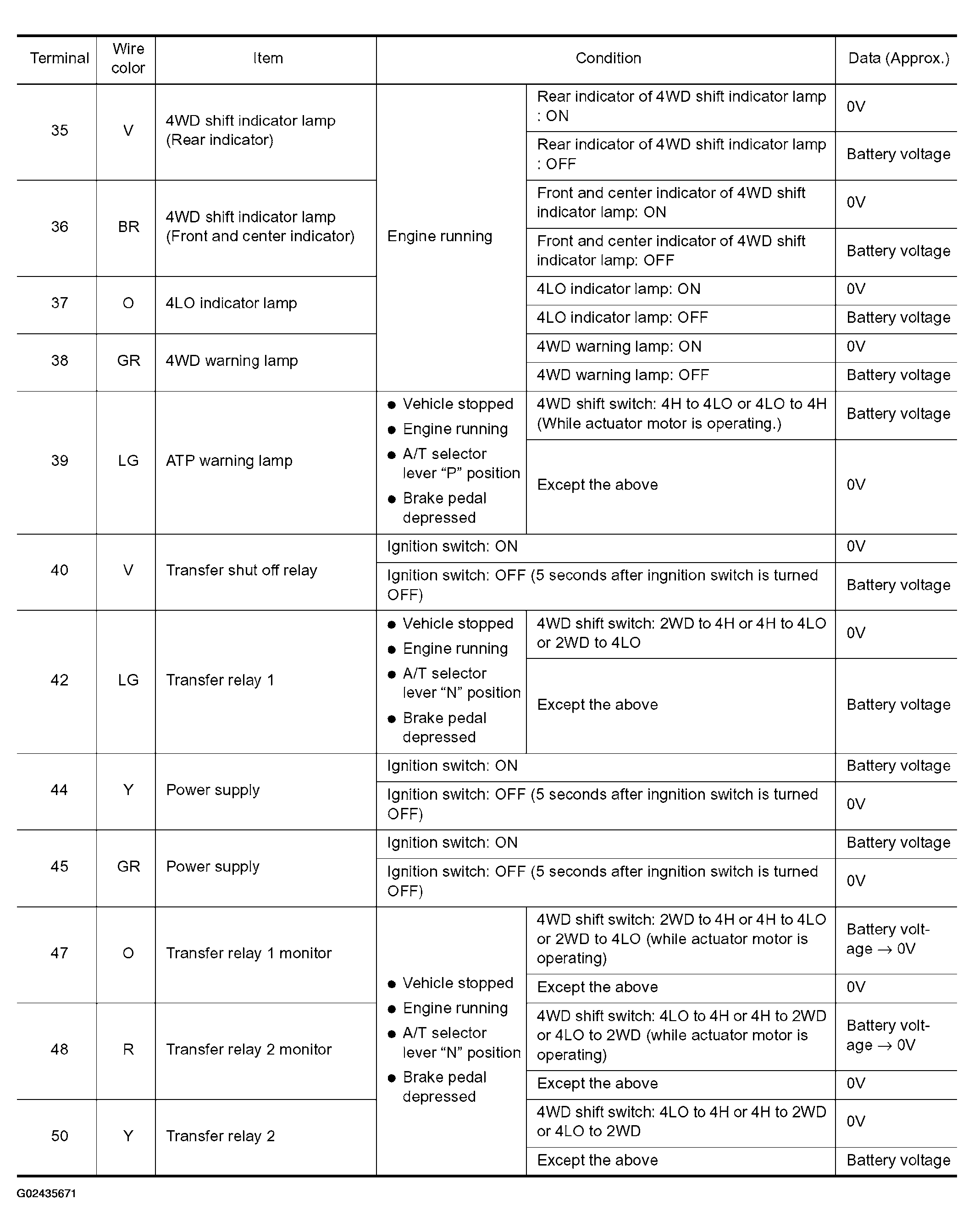

Fig 2: Transfer Control Unit Terminal Connector Reference Table - TX14B (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Transfer Control Unit Terminal Connector Reference Table - TX14B (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
