Transfer Control Unit Terminals And Reference Value

Data are reference value and are measured between each terminal and ground.

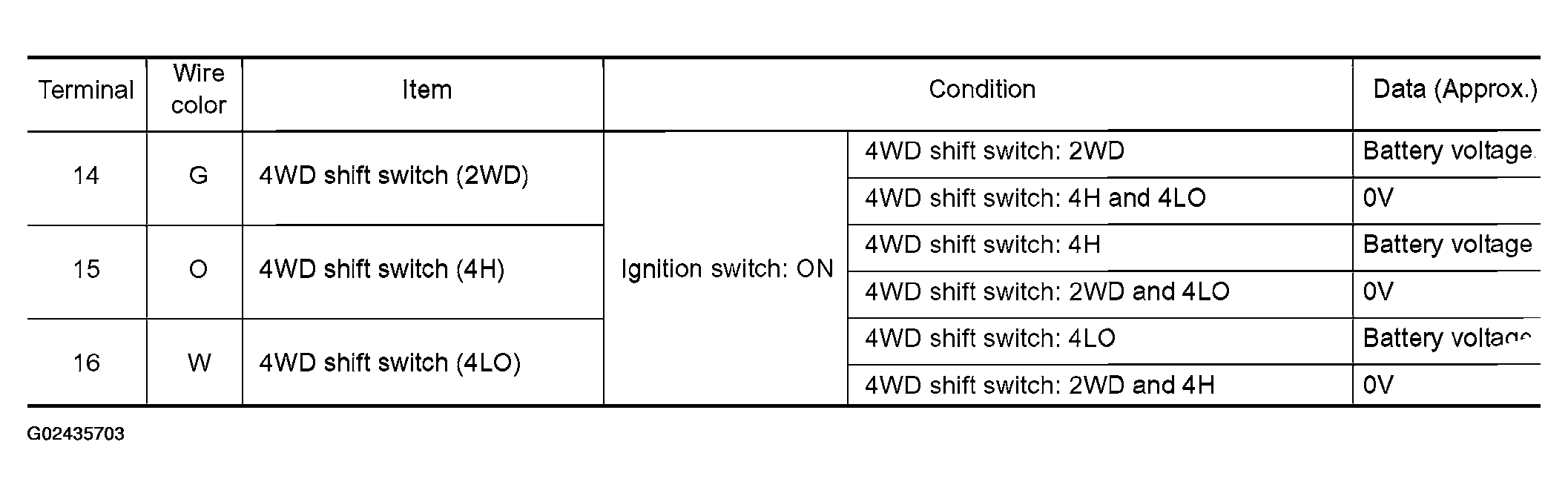

Fig 1: Transfer Control Unit Terminals 14, 15 16 Reference Value Chart - 4WD Shift Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
