Disassembly and Assembly: Components

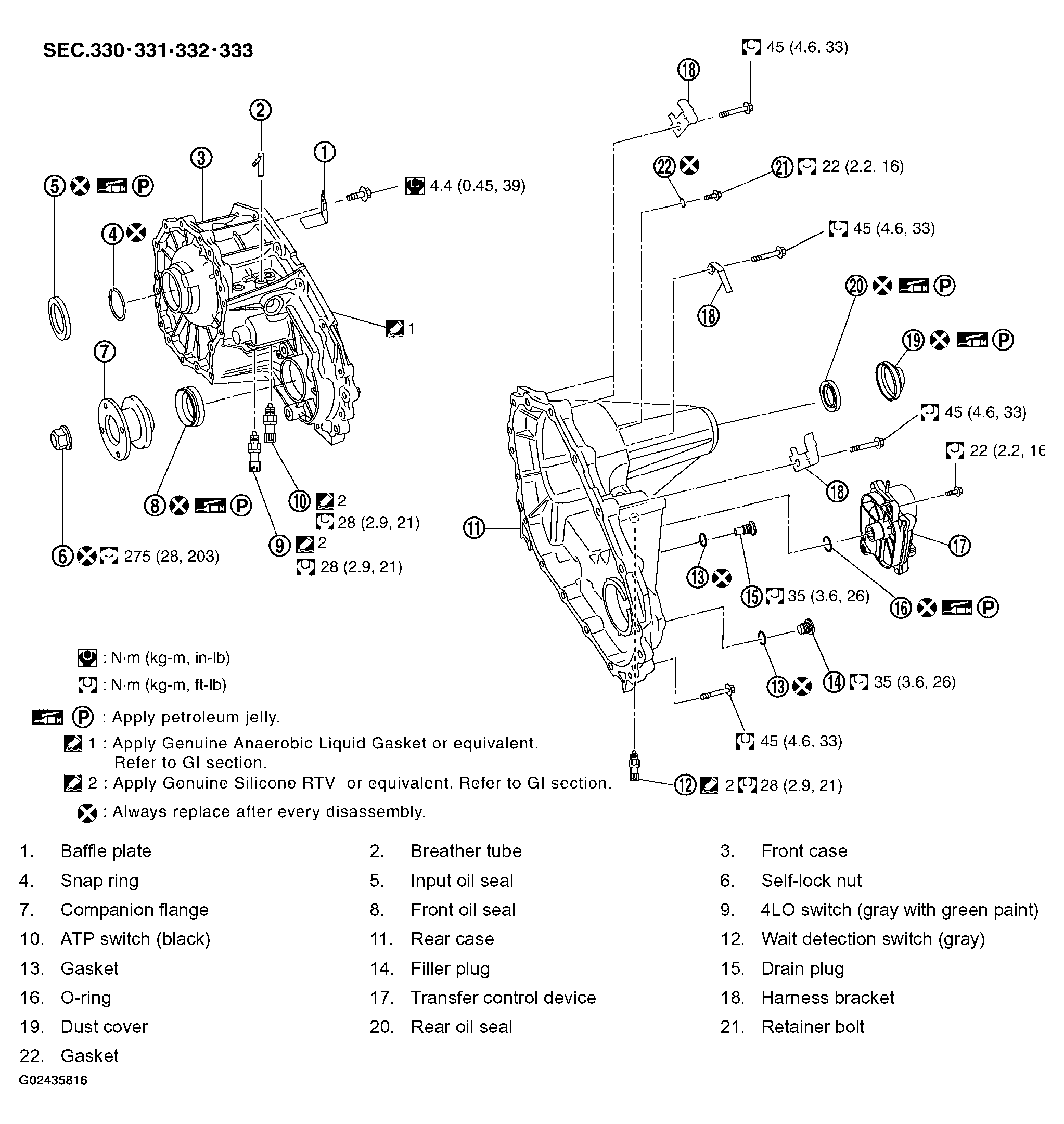

Fig 1: Disassembled View Of Transfer Assembly (1 Of 2)
G02435816Courtesy of NISSAN MOTOR CO., U.S.A.

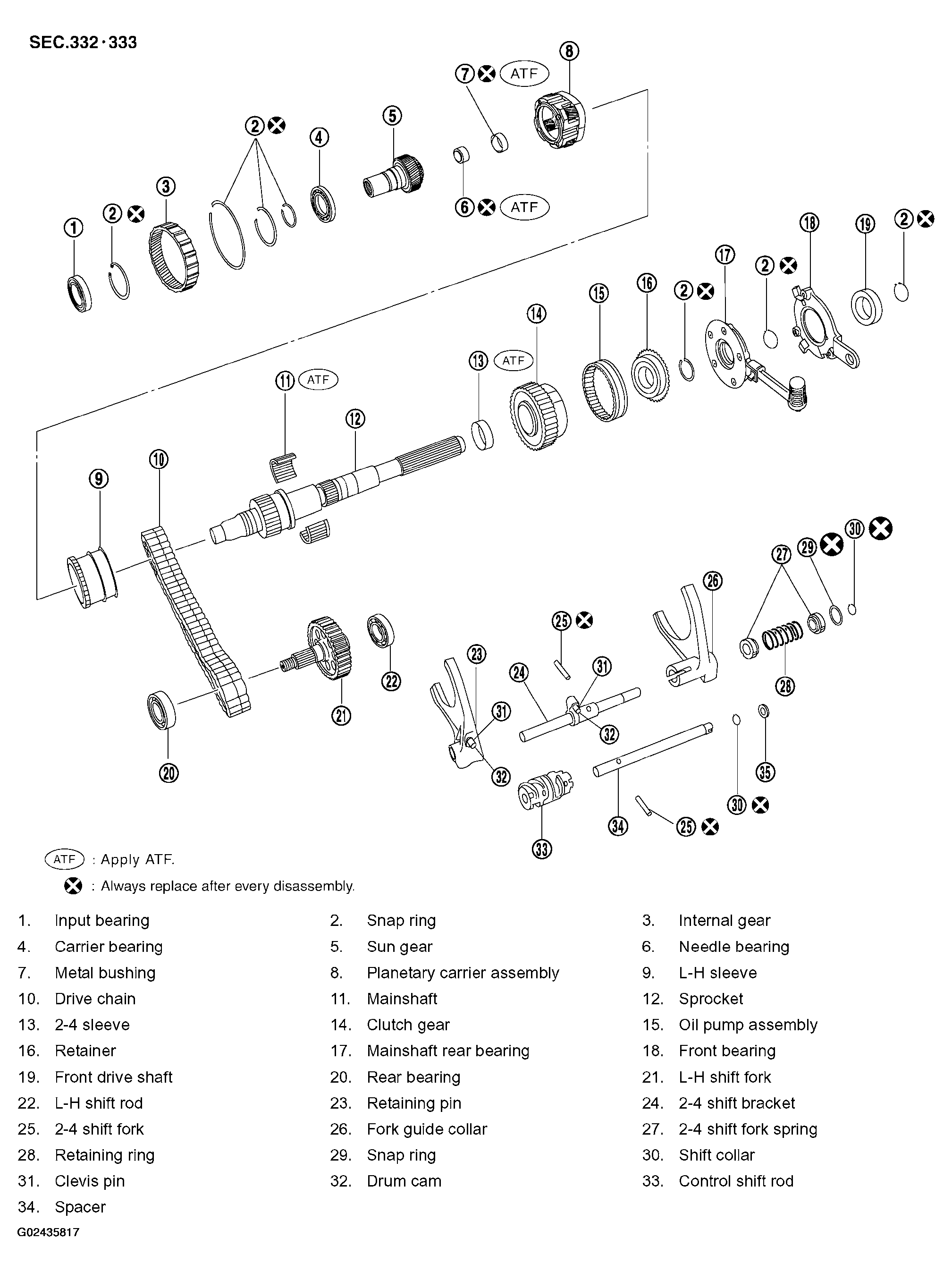

Fig 2: Disassembled View Of Transfer Assembly (2 Of 2)
G02435817Courtesy of NISSAN MOTOR CO., U.S.A.
