Disassembly and Assembly: Disassembly

  1. Remove the snap ring.
  2. Remove the retaining pin.
  3. Remove the drum cam from the control shift rod.

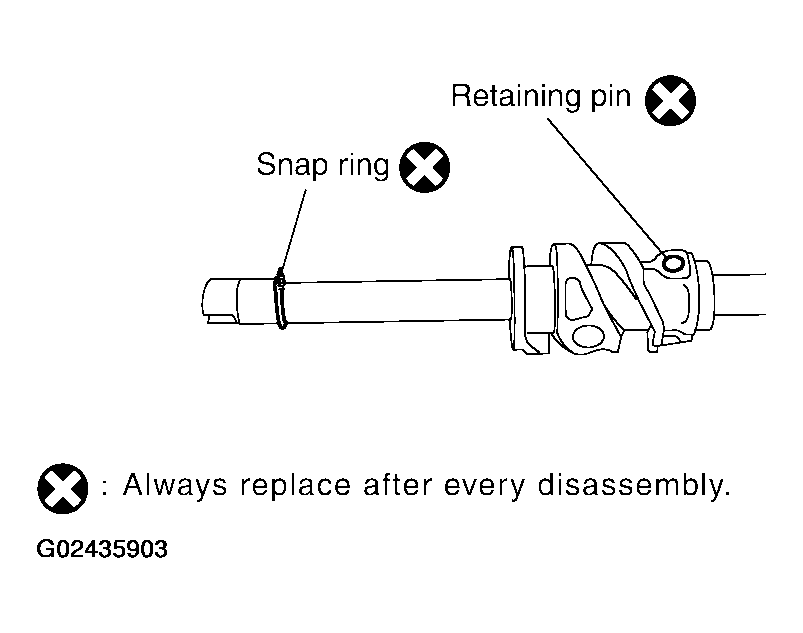

    Fig 1: Removing Snap Ring & Retaining Pin
    G02435903Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the retaining pin from the L-H shift rod.
  5. Remove the 2-4 shift bracket.

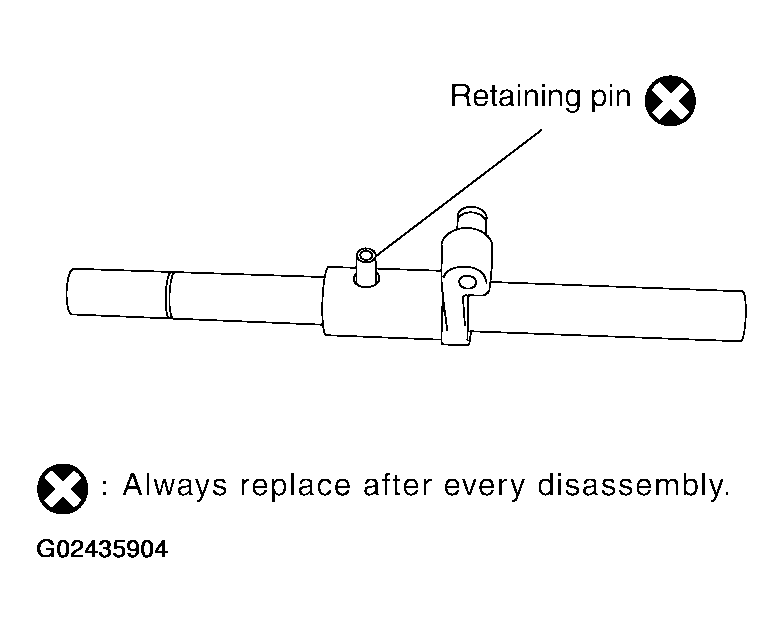

    Fig 2: Removing Retaining Pin From L-H Shift Rod
    G02435904Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the retaining ring from the 2-4 shift fork, using suitable tool.
  7. Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.

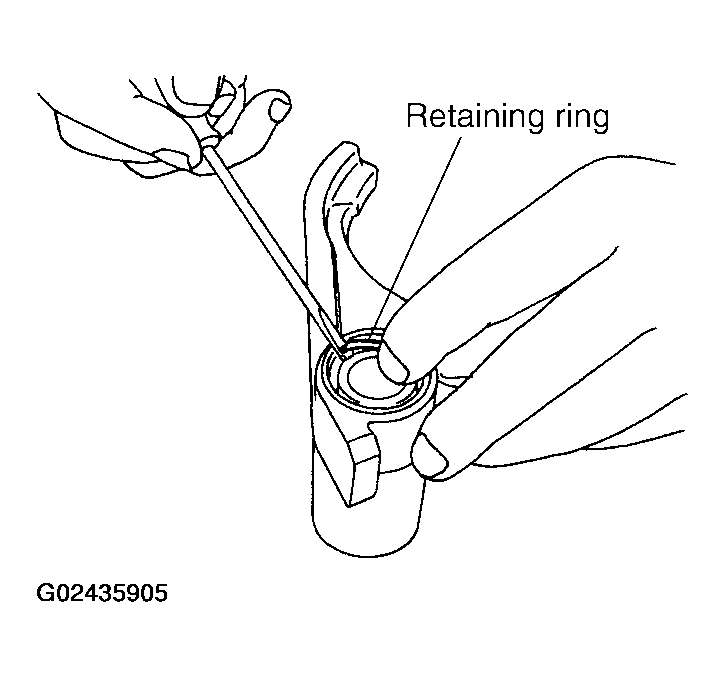

    Fig 3: Removing Retaining Ring From 2-4 Shift Fork
    G02435905Courtesy of NISSAN MOTOR CO., U.S.A.
