Disassembly and Assembly: Assembly

Install clevis pin and shift collar to L-H shift fork after assembling them.
CAUTION: Use caution when installing L-H shift fork, clevis pin or shift collar.
Install clevis pin and shift collar to 2-4 shift bracket after assembling them.
CAUTION: Use caution when installing 2-4 shift bracket.
Install guide fork collar and 2-4 shift fork spring to the 2-4 shift fork, and then secure it with the retaining ring.
CAUTION:
- Do not reuse retaining ring.
- Be careful with orientation.

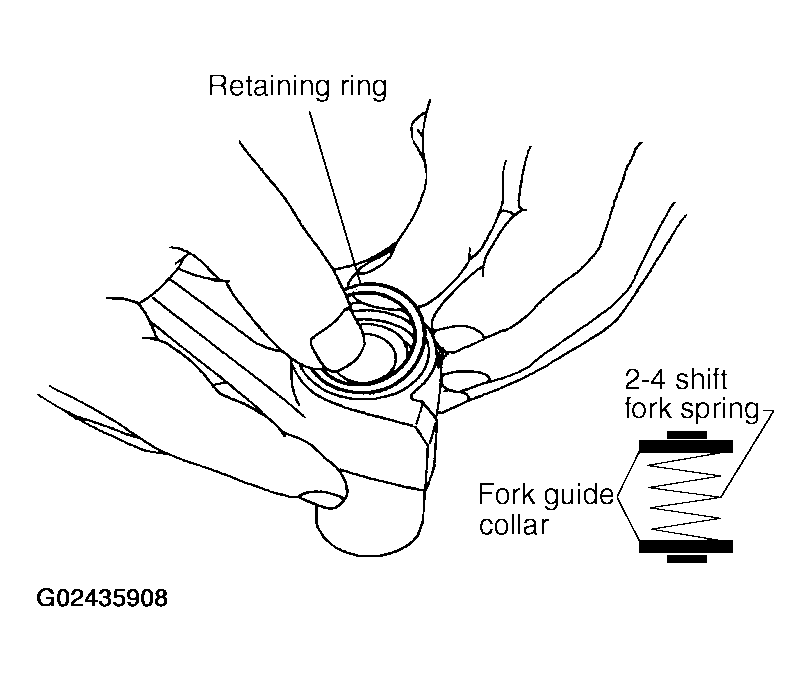

Fig 1: Installing Guide Fork Collar And 2-4 Shift Fork Spring To 2-4 Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the 2-4shift bracket to the L-H shift rod.
Install the retaining pin evenly to the L-H shift rod.
CAUTION: Do not reuse retaining pin.

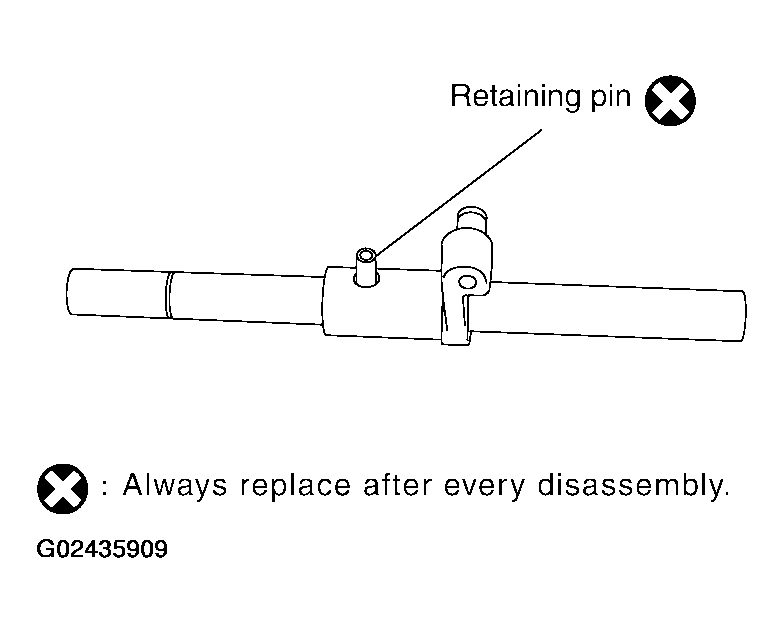

Fig 2: Installing Retaining Pin To The L-H Shift Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the drum cam to the control shift rod, and then secure it with the retaining pin.
CAUTION: Do not reuse retaining pin.
Install the snap ring to the control shift rod.
CAUTION: Do not reuse snap ring.

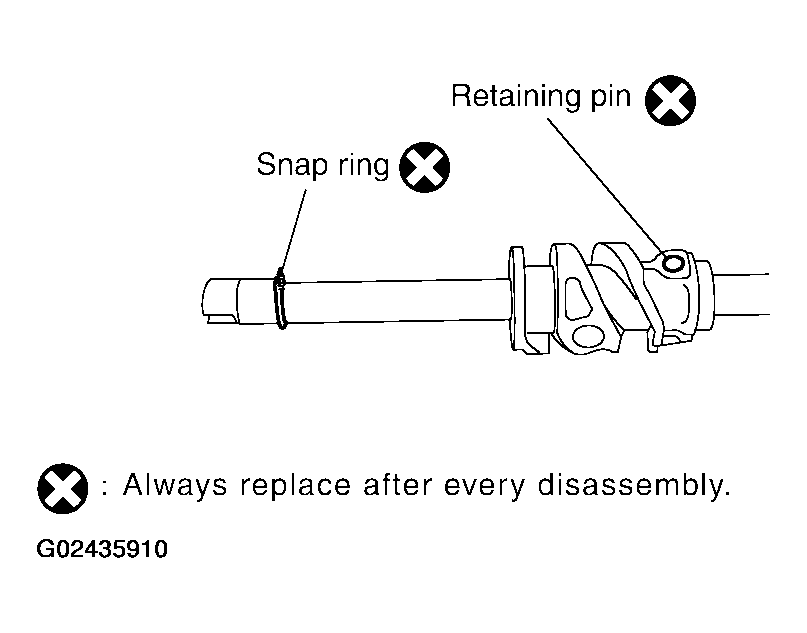

Fig 3: Installing Snap Ring To Control Shift Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
