Check 4WD Shift Indicator Pattern

Set 4WD shift switch to "2WD", "4H", "4LO", "4H" and "2WD" in order. Stay at each switch position for at least 2 seconds.
Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.

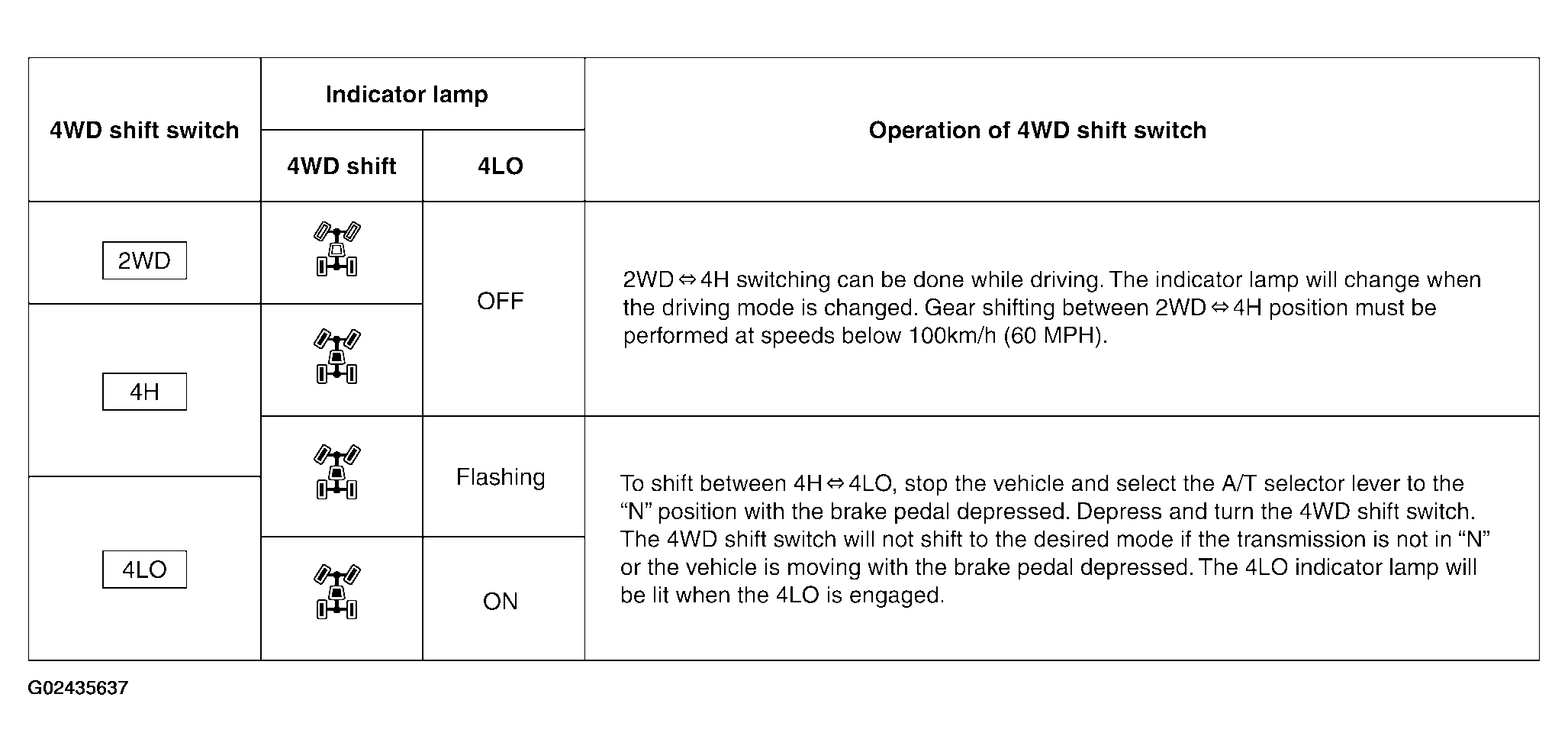

Fig 1: Checking 4WD Shift Indicator Pattern - TX14B
Courtesy of NISSAN MOTOR CO., U.S.A.
- If OK, the position between transfer assembly and transfer control unit is correct.
- If NG, the position is different between transfer assembly and transfer control unit.
  Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

Transfer position adjustment pattern

TRANSFER POSITION ADJUSTMENT PATTERN - TX14B

4WD shift switch condition	Refer procedure
4WD shift switch is under "2WD" condition when engine is being stopped.	, "METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "2WD "
4WD shift switch is under "4H" or "4LO" condition when engine is being stopped.	, "METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT "4H " OR "4LO"

NOTE: Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.
