System Diagram
>>
Components Function
Components Function

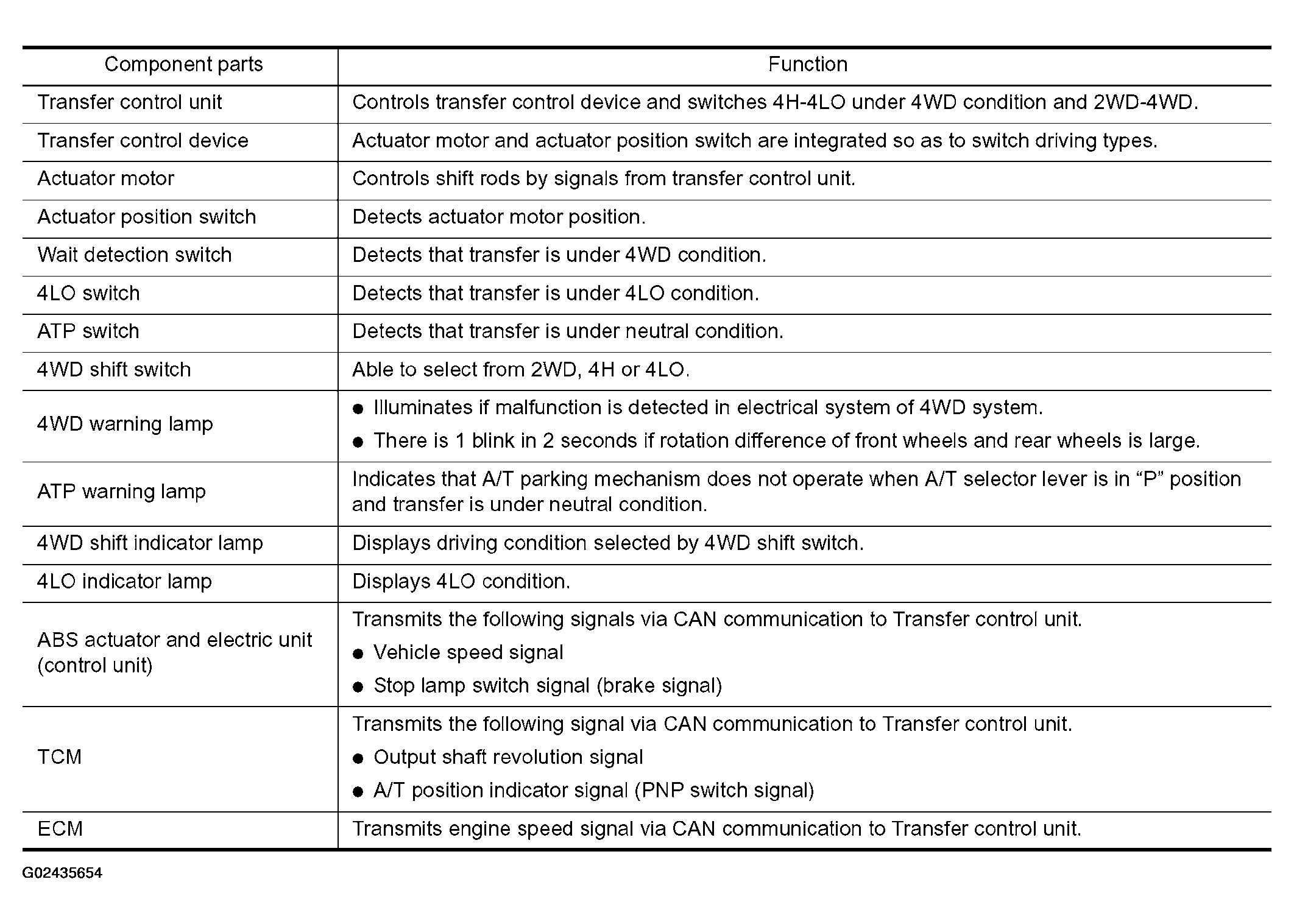

Fig 1: Transfer Case System Components Function Chart - TX14B
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
