Power Transfer Flow
Power Transfer Flow

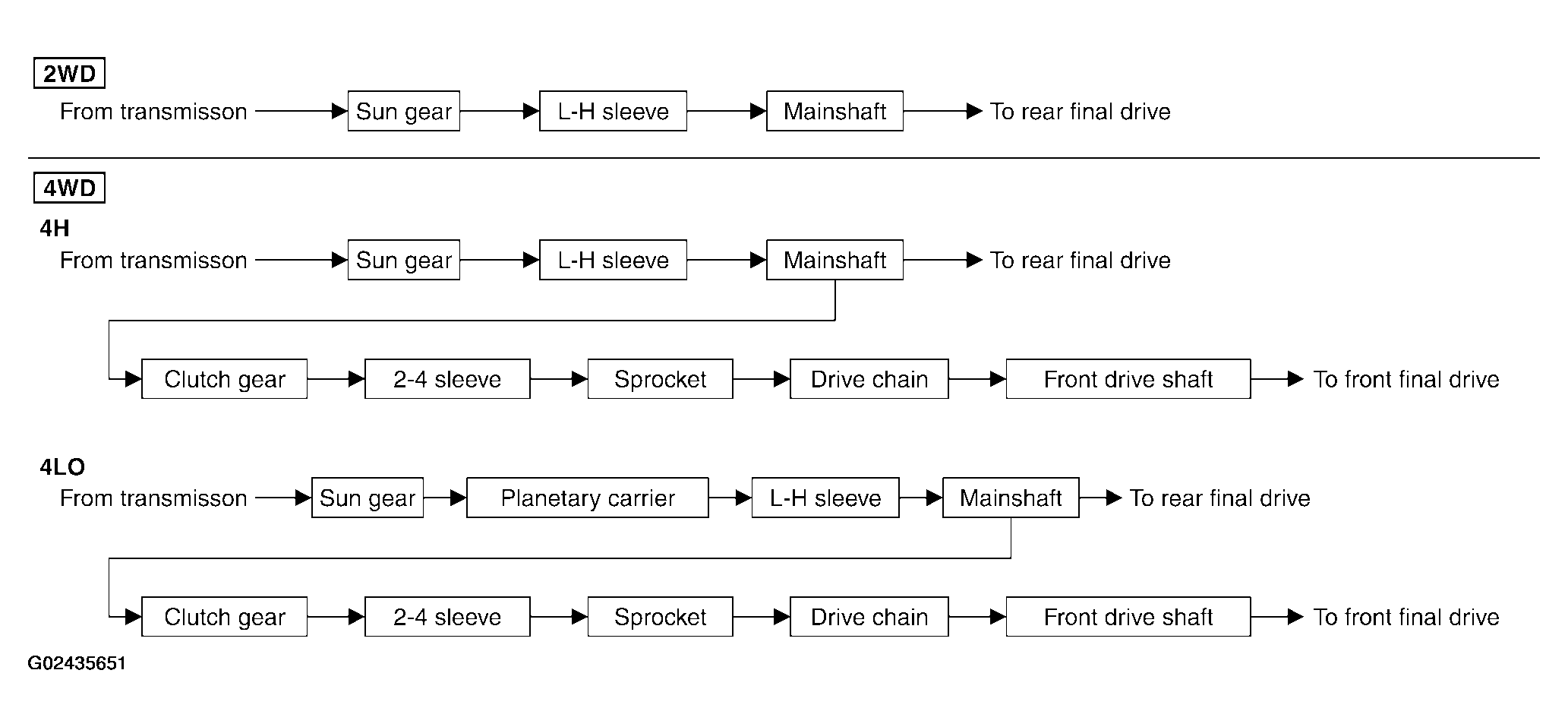

Fig 1: Power Transfer Flow Chart - TX14B
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
