Specifications with CONSULT-II

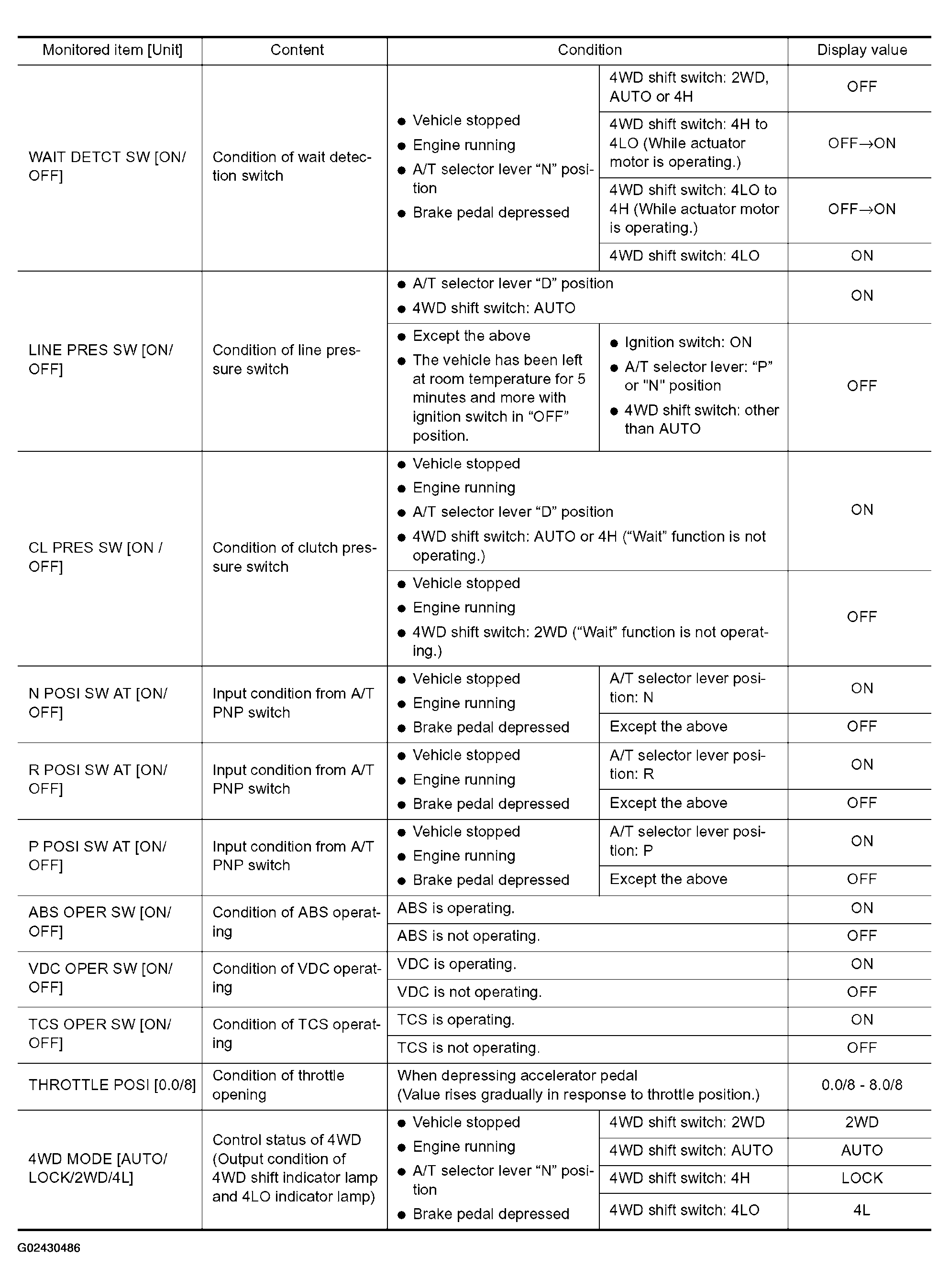

Fig 1: Transfer Control Unit Inspection Table - CONSULT-II Monitored Items, ATX14B (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

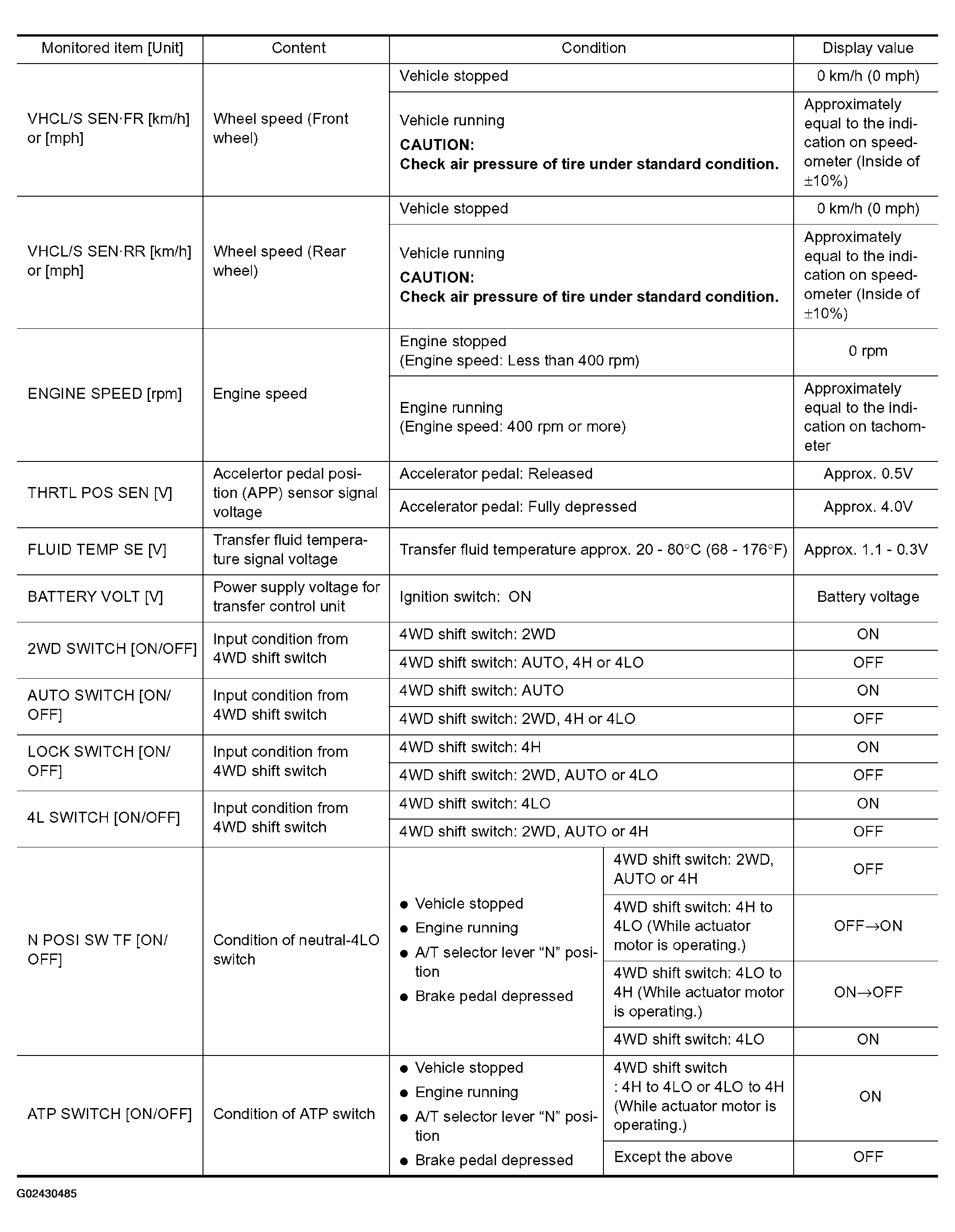

Fig 2: Transfer Control Unit Inspection Table - CONSULT-II Monitored Items, ATX14B (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

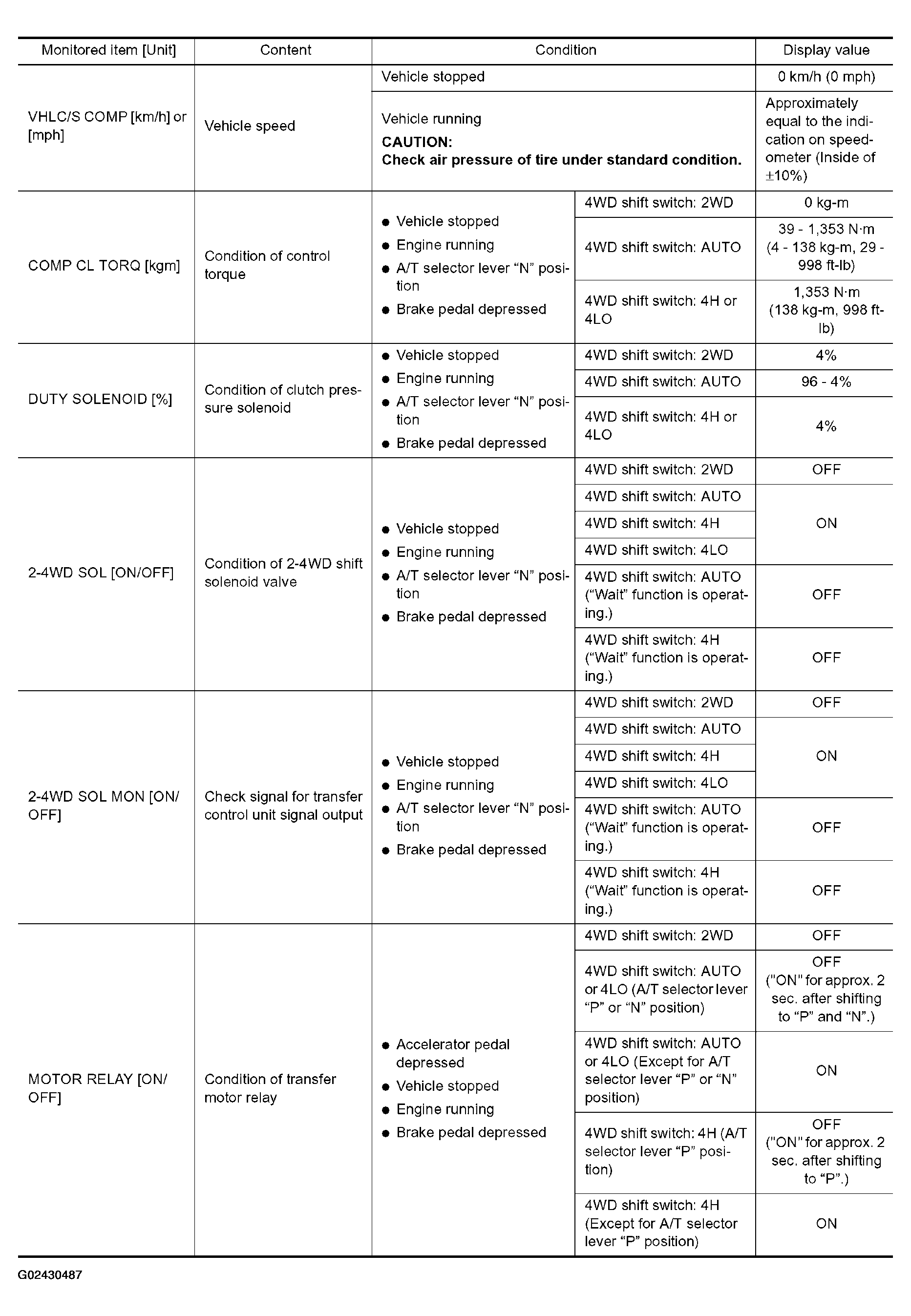

Fig 3: Transfer Control Unit Inspection Table - CONSULT-II Monitored Items, ATX14B (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

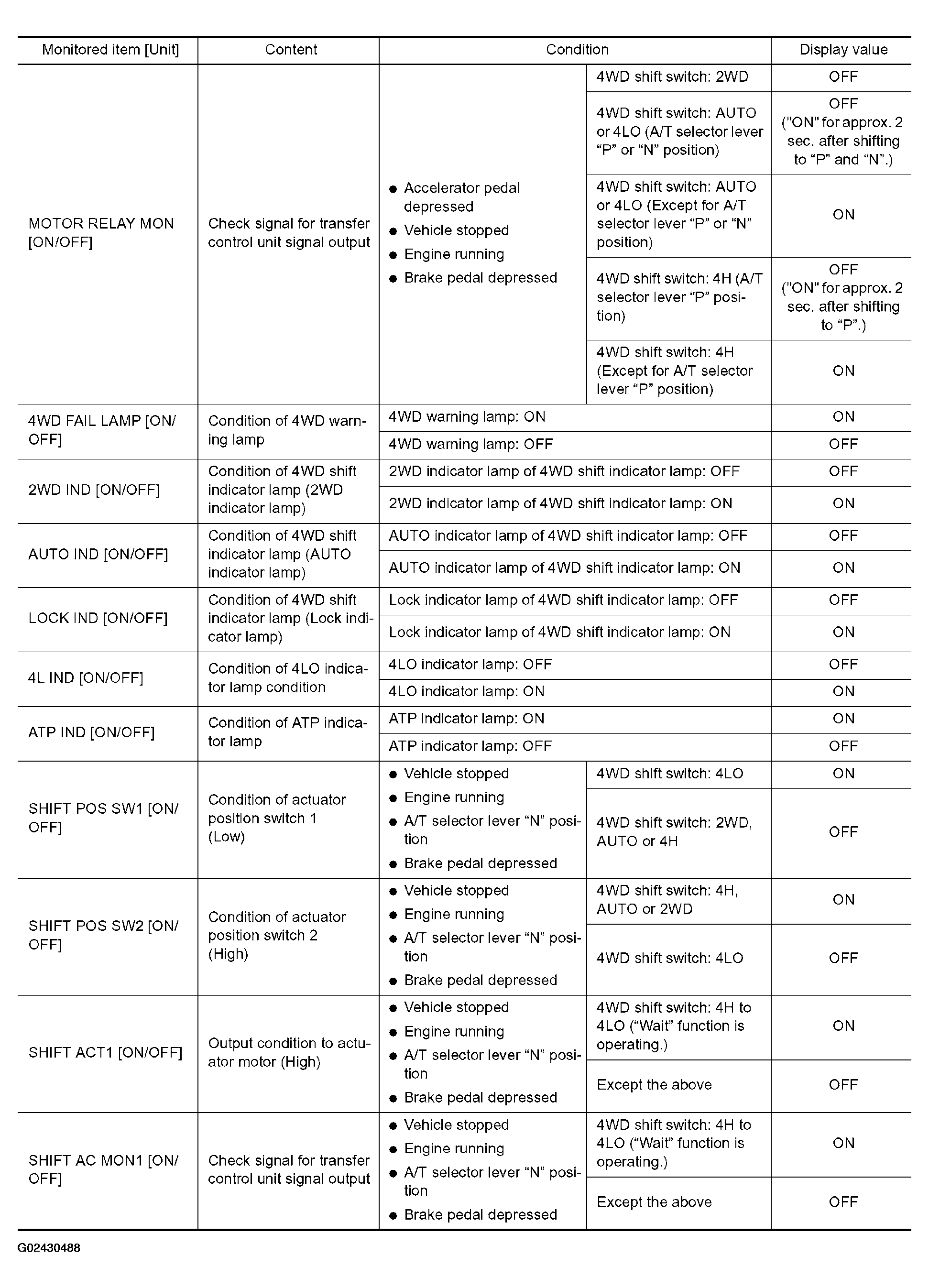

Fig 4: Transfer Control Unit Inspection Table - CONSULT-II Monitored Items, ATX14B (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

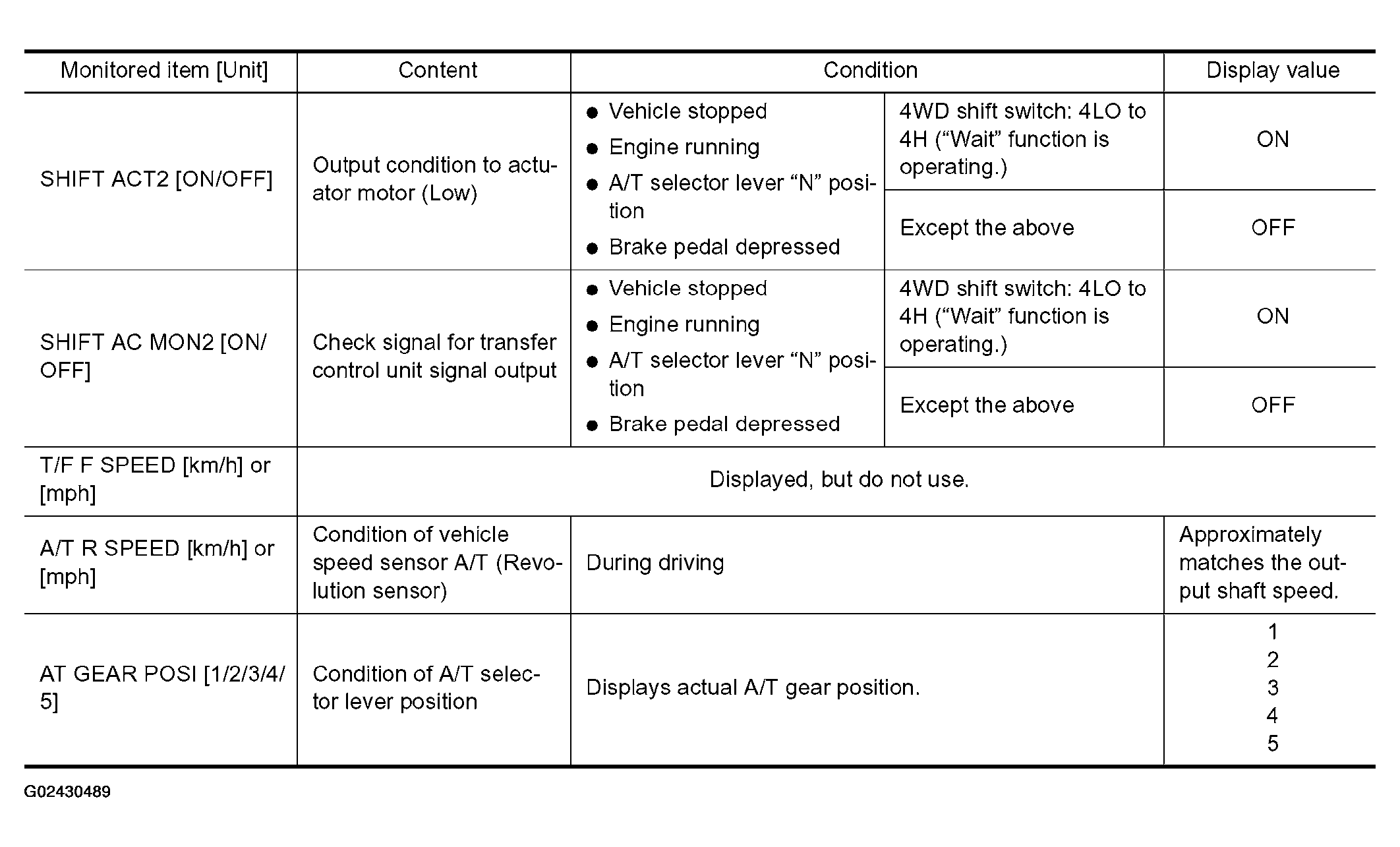

Fig 5: Transfer Control Unit Inspection Table - CONSULT-II Monitored Items, ATX14B (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
