Specifications Between Transfer Control Unit Terminals

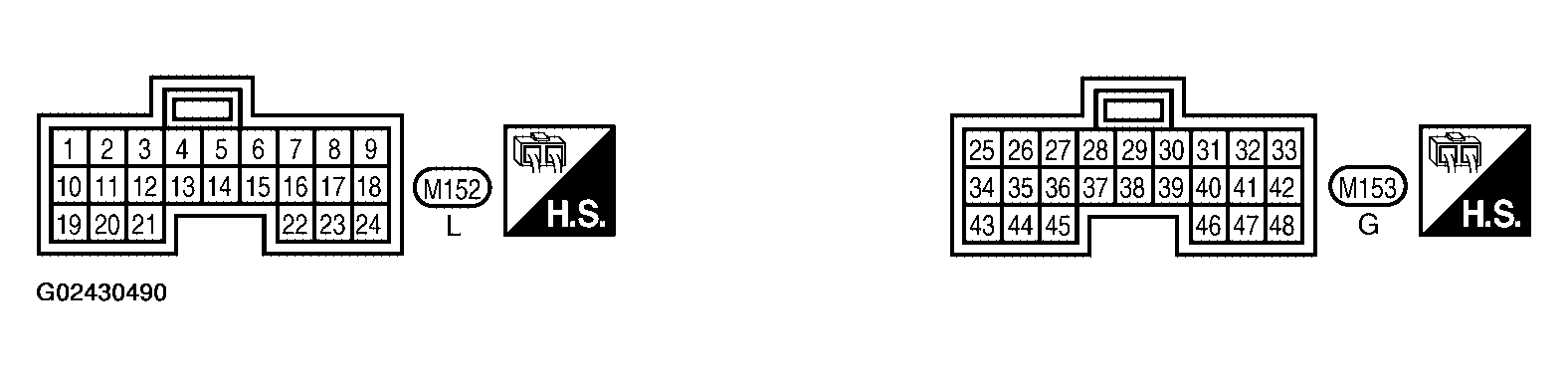

Fig 1: Transfer Control Unit Connector Terminal Layout, ATX14B

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Data are reference value and are measured between each terminal and ground.

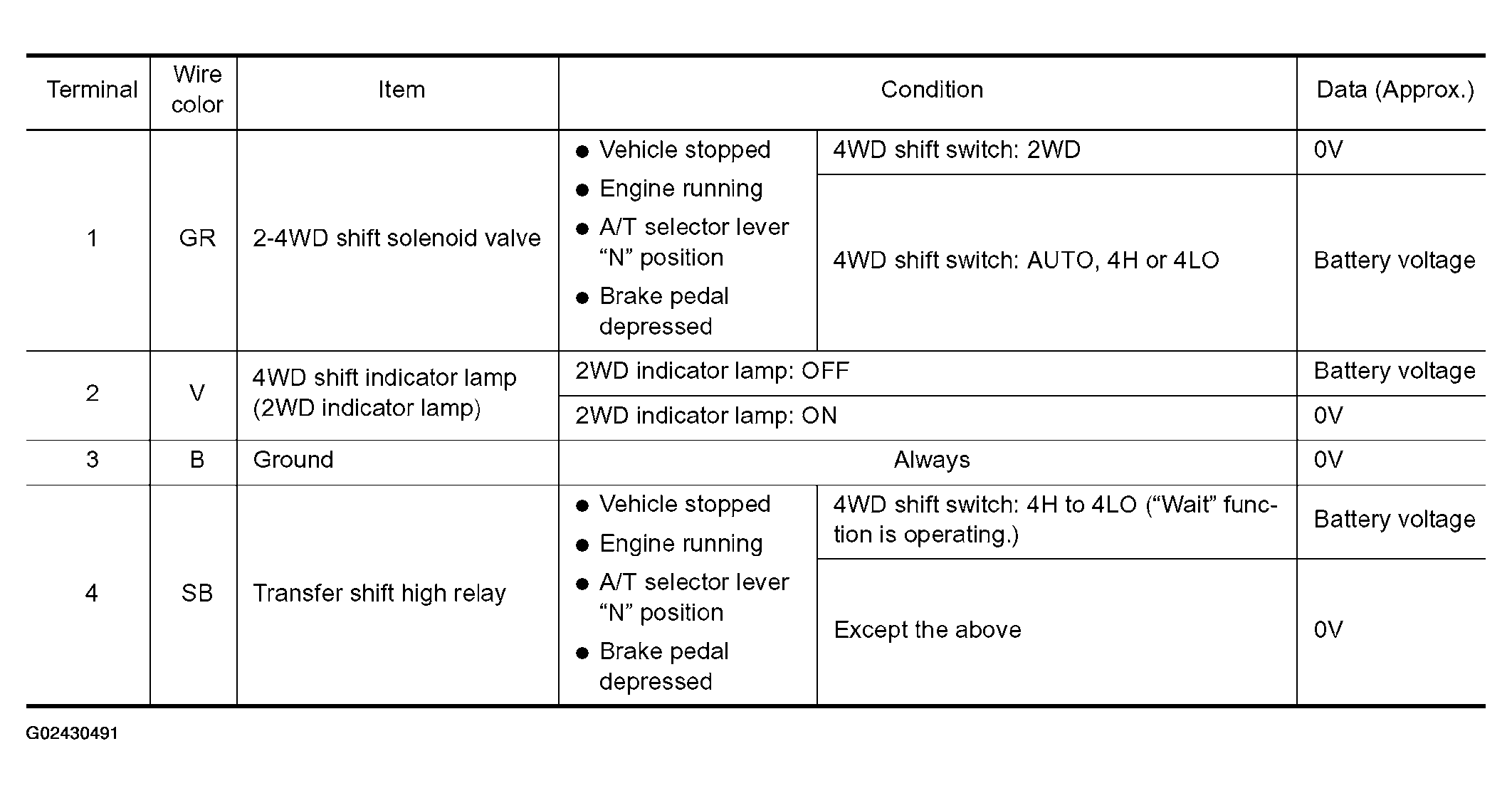

Fig 2: Transfer Control Unit Terminal Connector Terminals Reference Chart, ATX14B (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

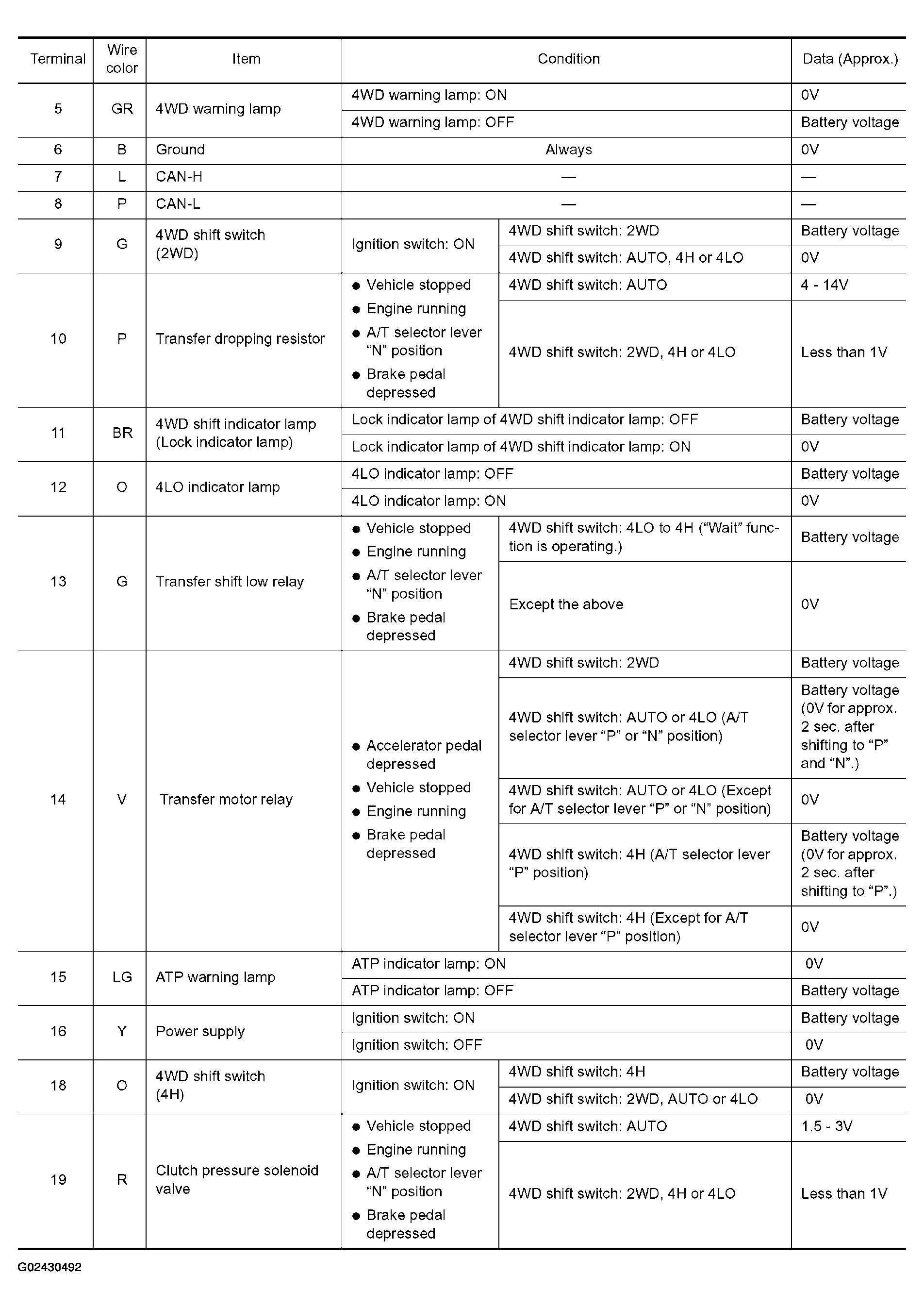

Fig 3: Transfer Control Unit Terminal Connector Terminals Reference Chart, ATX14B (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

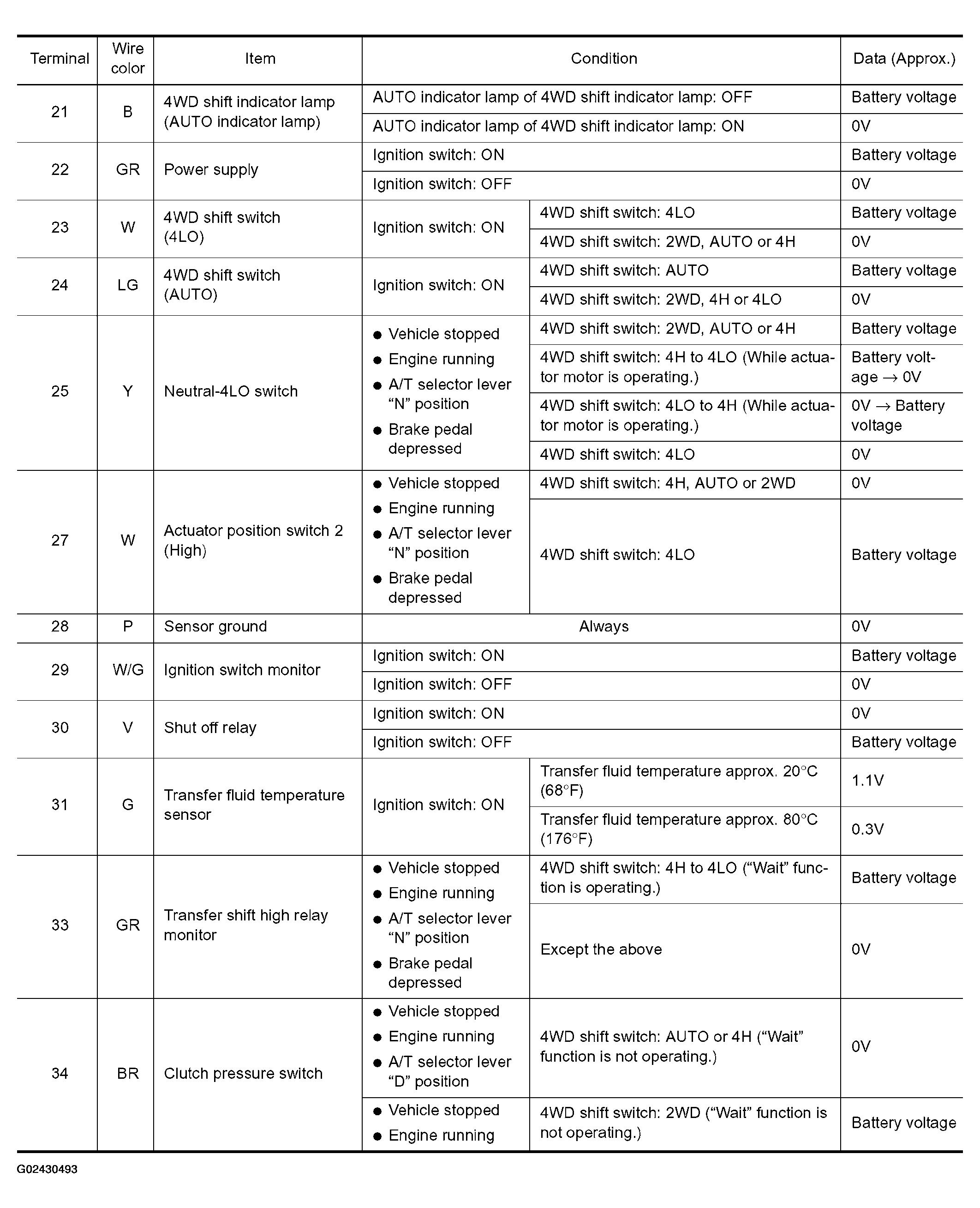

Fig 4: Transfer Control Unit Terminal Connector Terminals Reference Chart, ATX14B (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

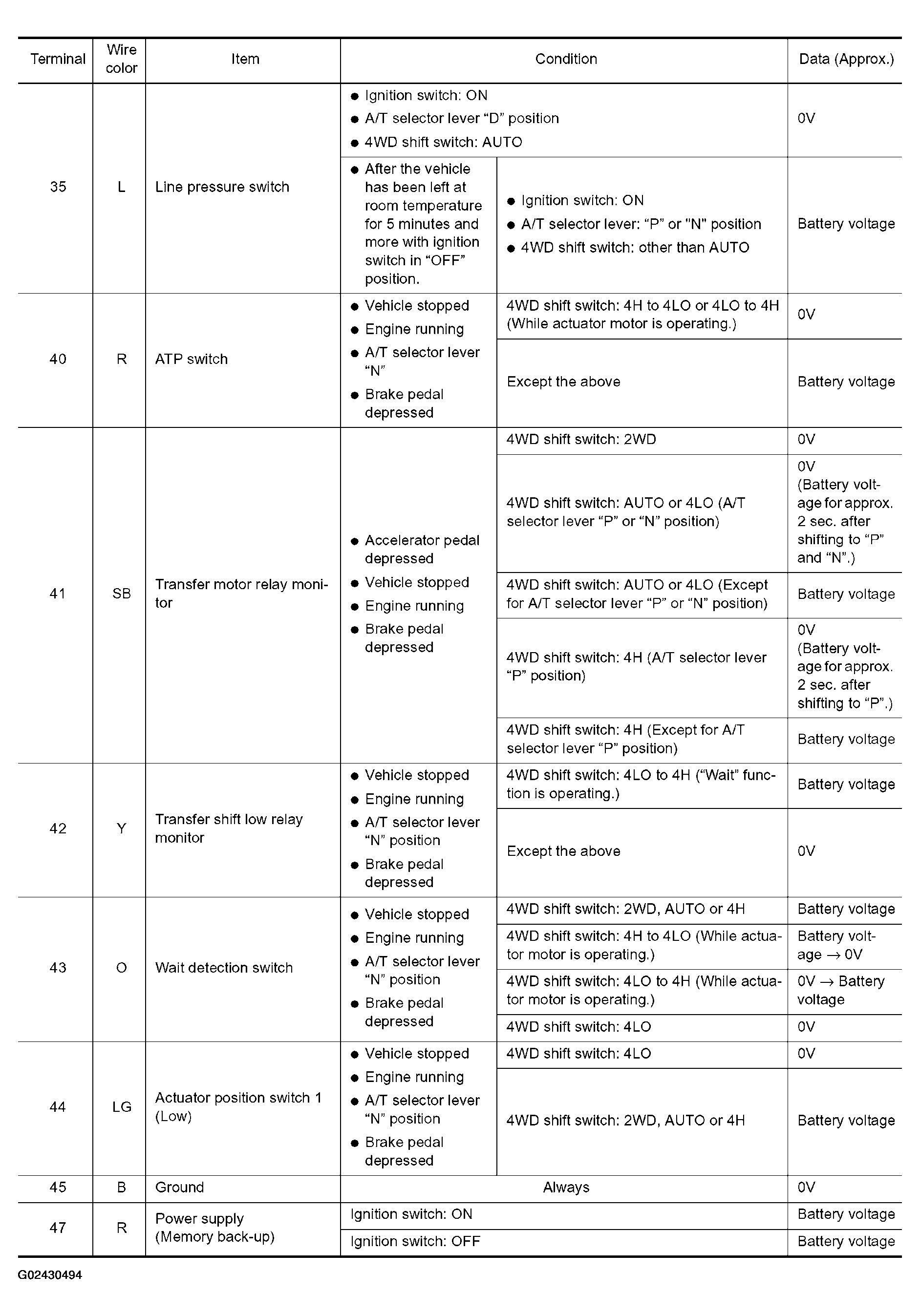

Fig 5: Transfer Control Unit Terminal Connector Terminals Reference Chart, ATX14B (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
