Consult-II Reference Value In Data Monitor Mode

Data are reference value.

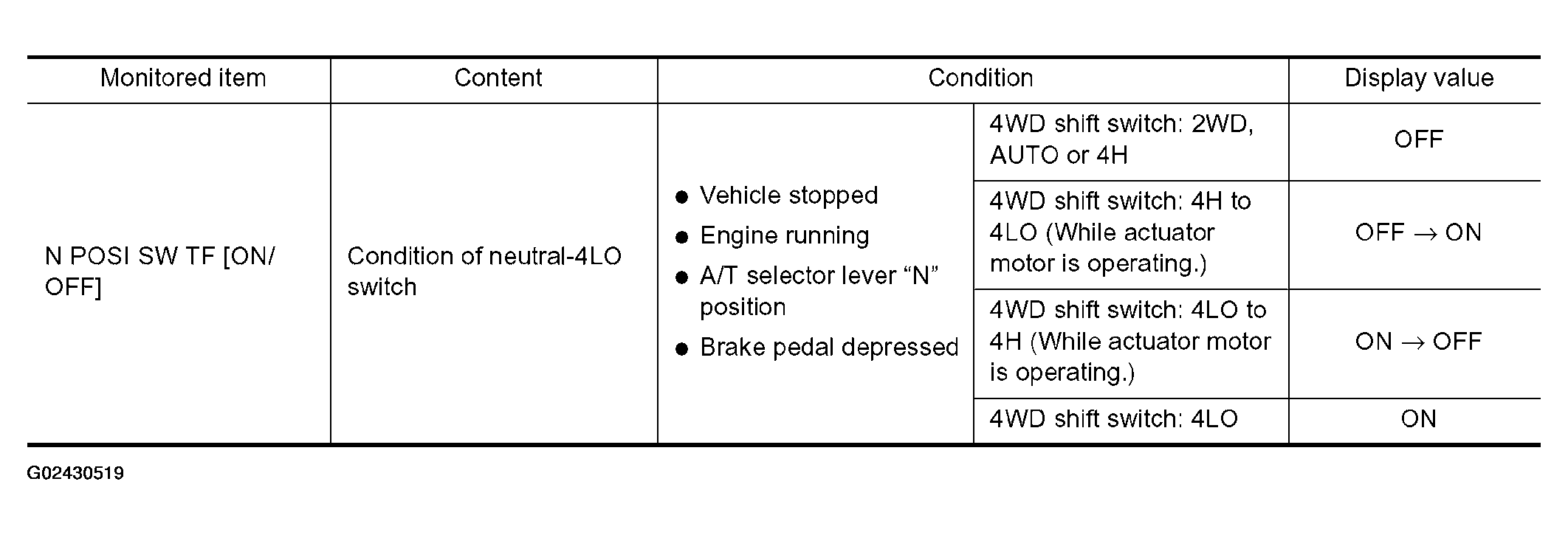

Fig 1: CONSULT-II Neutral-4LO Switch Reference Value Chart (Data Monitor Mode)

G02430519

Courtesy of NISSAN MOTOR CO., U.S.A.
