Consult-II Reference Value In Data Monitor Mode

Data are reference value.

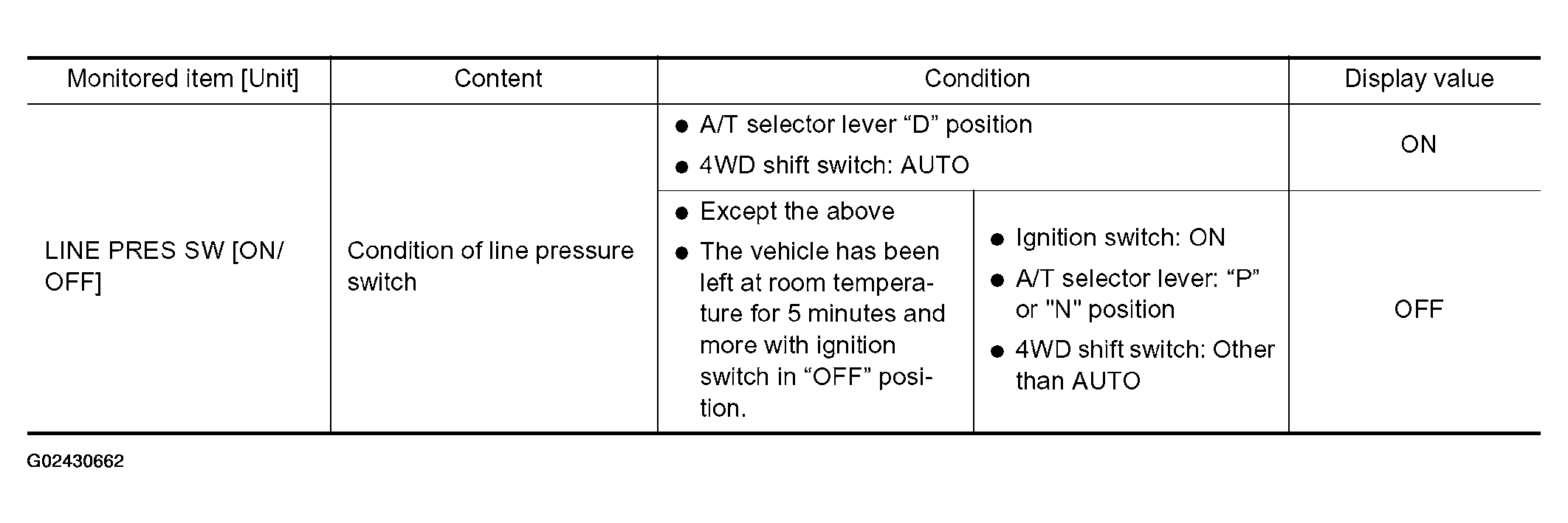

Fig 1: CONSULT-II Monitored Item (Data Monitor Mode) - Line Pressure Switch

G02430662

Courtesy of NISSAN MOTOR CO., U.S.A.
