Consult-II Reference Value In Data Monitor Mode

Data are reference value.

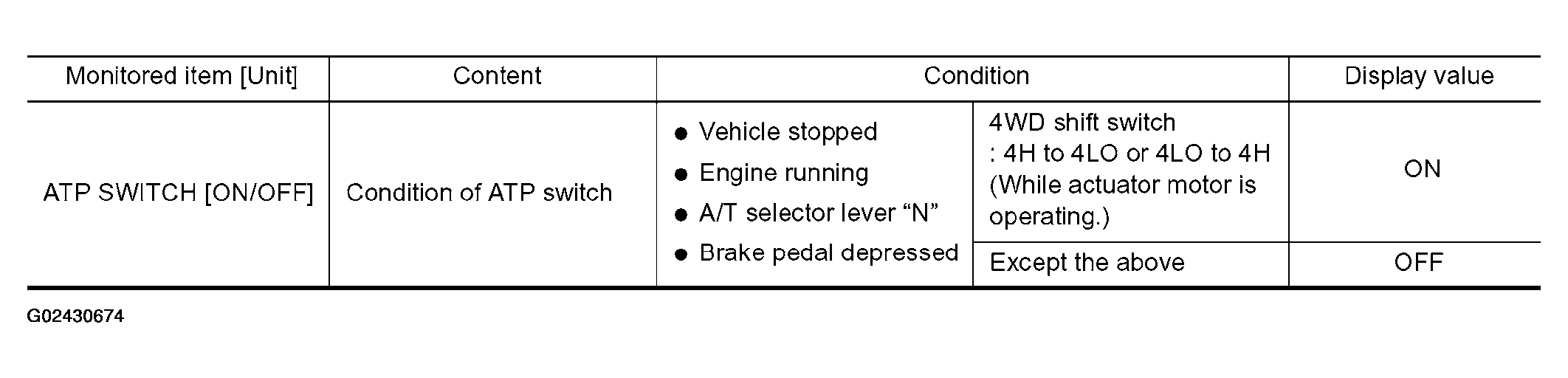

Fig 1: CONSULT-II Monitored Item Chart (Data Monitor Mode) - ATP Switch
G02430674Courtesy of NISSAN MOTOR CO., U.S.A.
