Consult-II Reference Value In Data Monitor Mode

Data are reference value.

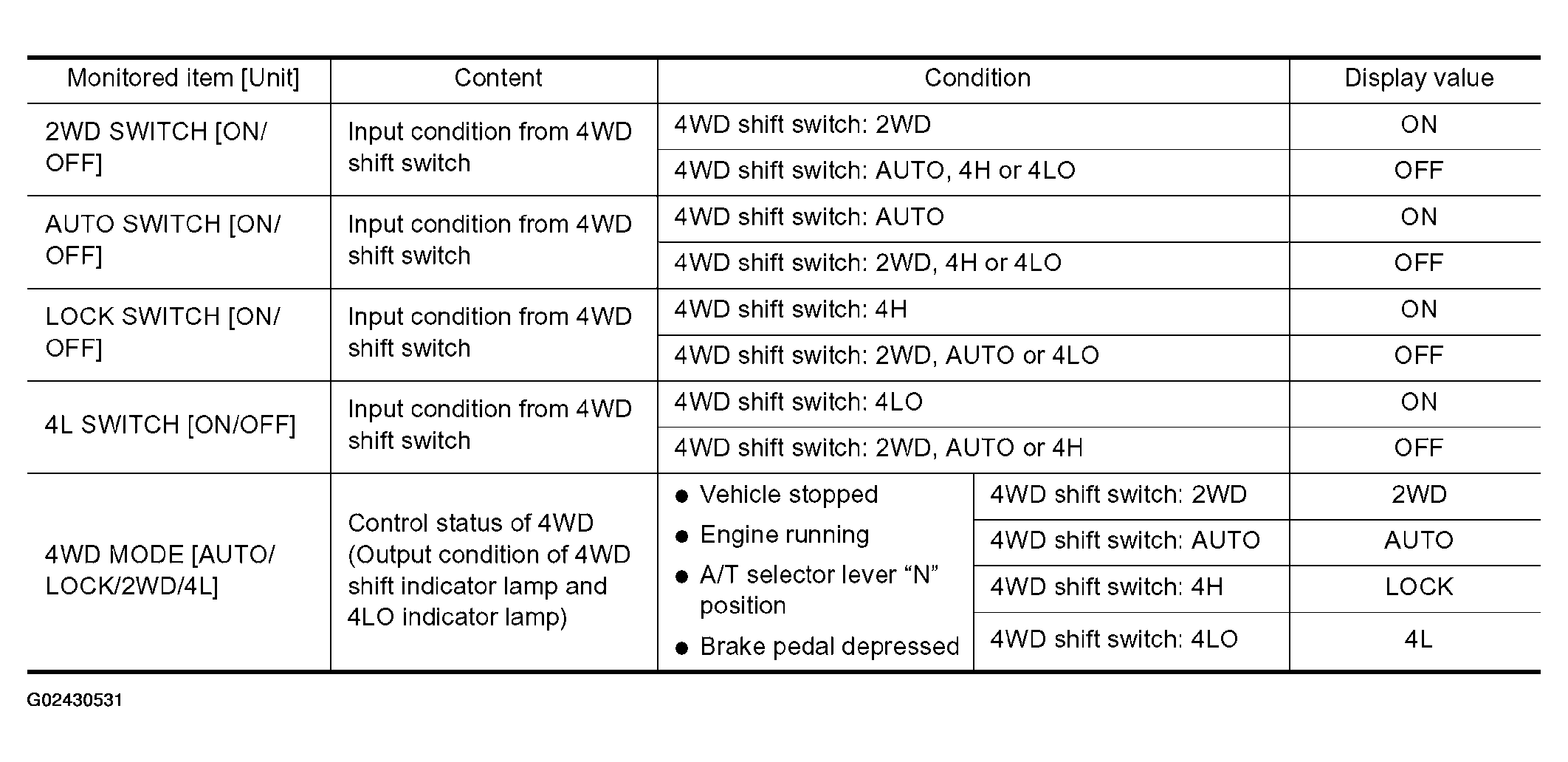

Fig 1: CONSULT-II Reference Value Chart (Data Monitor Mode) - 4WD Shift Switch

G02430531

Courtesy of NISSAN MOTOR CO., U.S.A.
