Disassembly and Assembly: Components

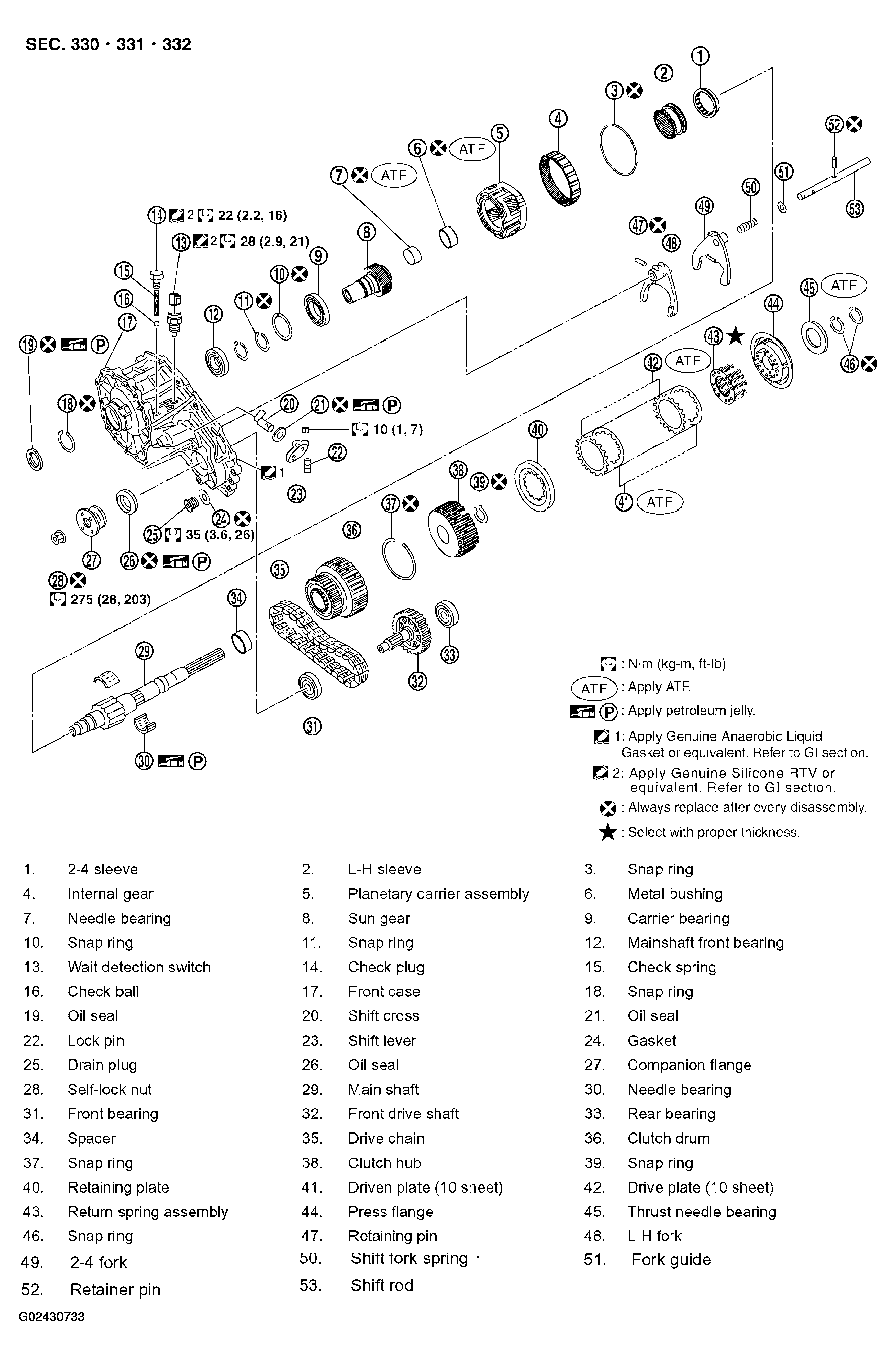

Fig 1: Exploded View Of Transfer Assembly Components - ATX14B (1 Of 2)
G02430733Courtesy of NISSAN MOTOR CO., U.S.A.

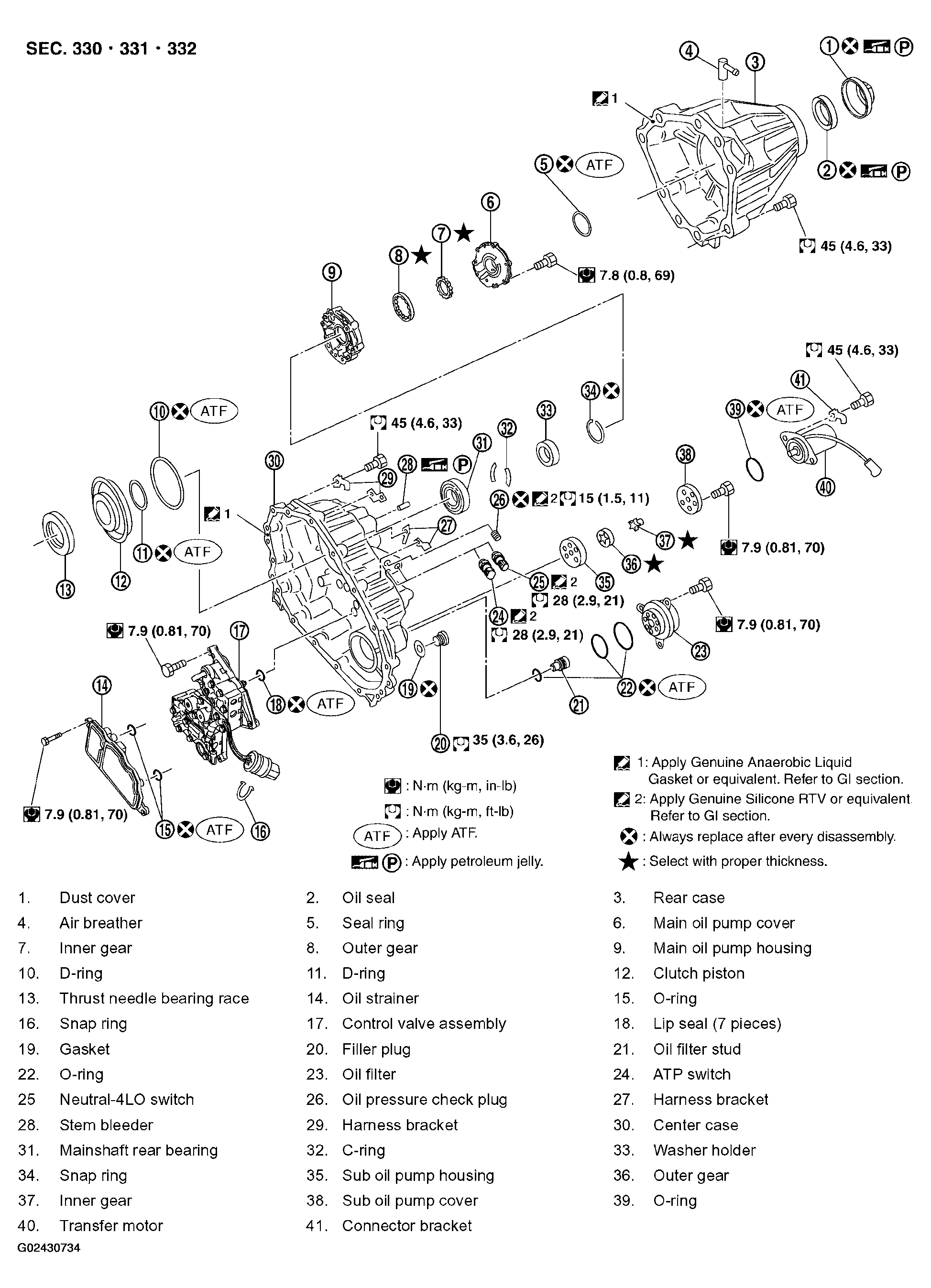

Fig 2: Exploded View Of Transfer Assembly Components - ATX14B (2 Of 2)
G02430734Courtesy of NISSAN MOTOR CO., U.S.A.
