Components Function

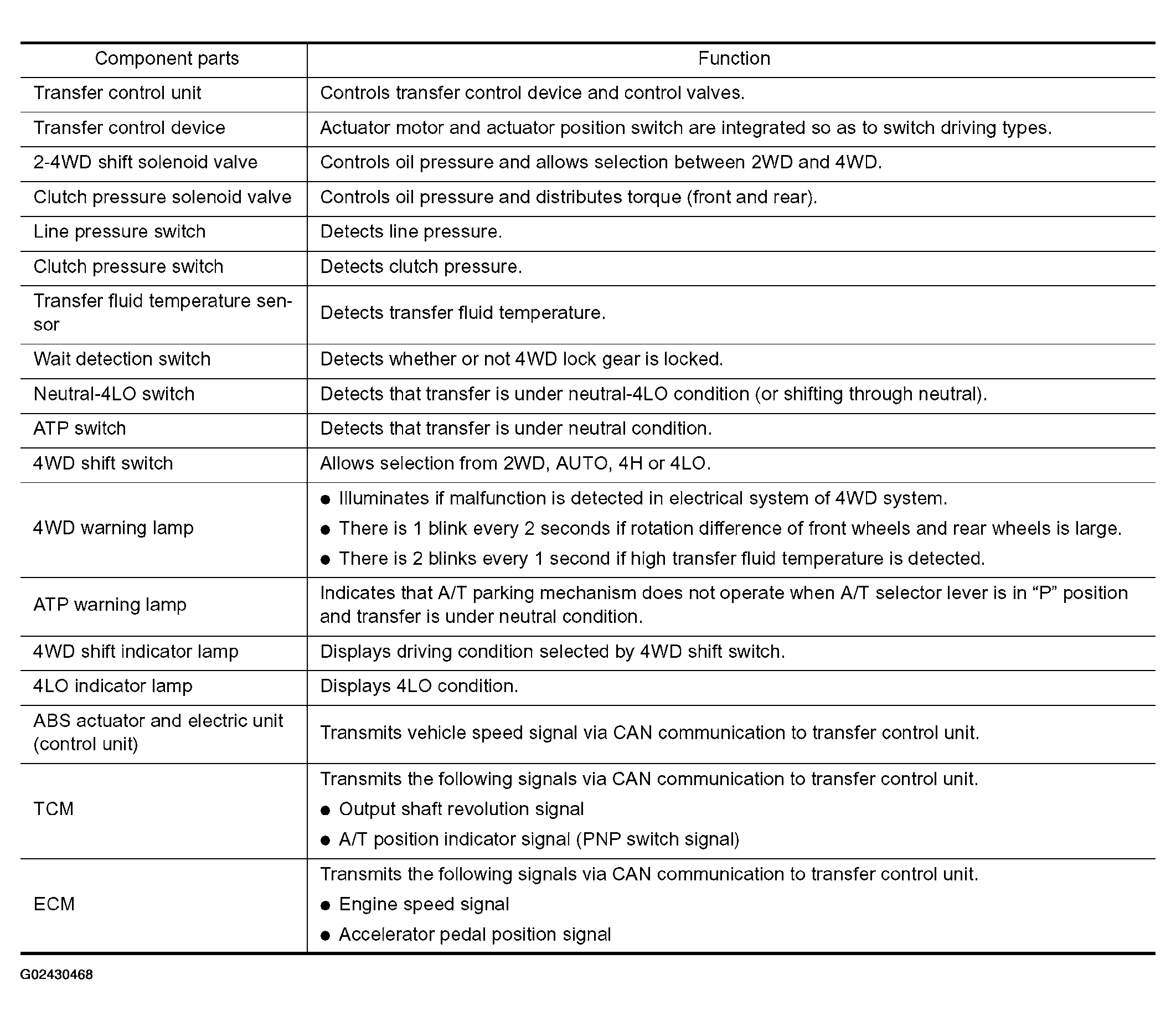

Fig 1: Components Function Chart - ATX14B

G02430468

Courtesy of NISSAN MOTOR CO., U.S.A.
