Control System: Notes

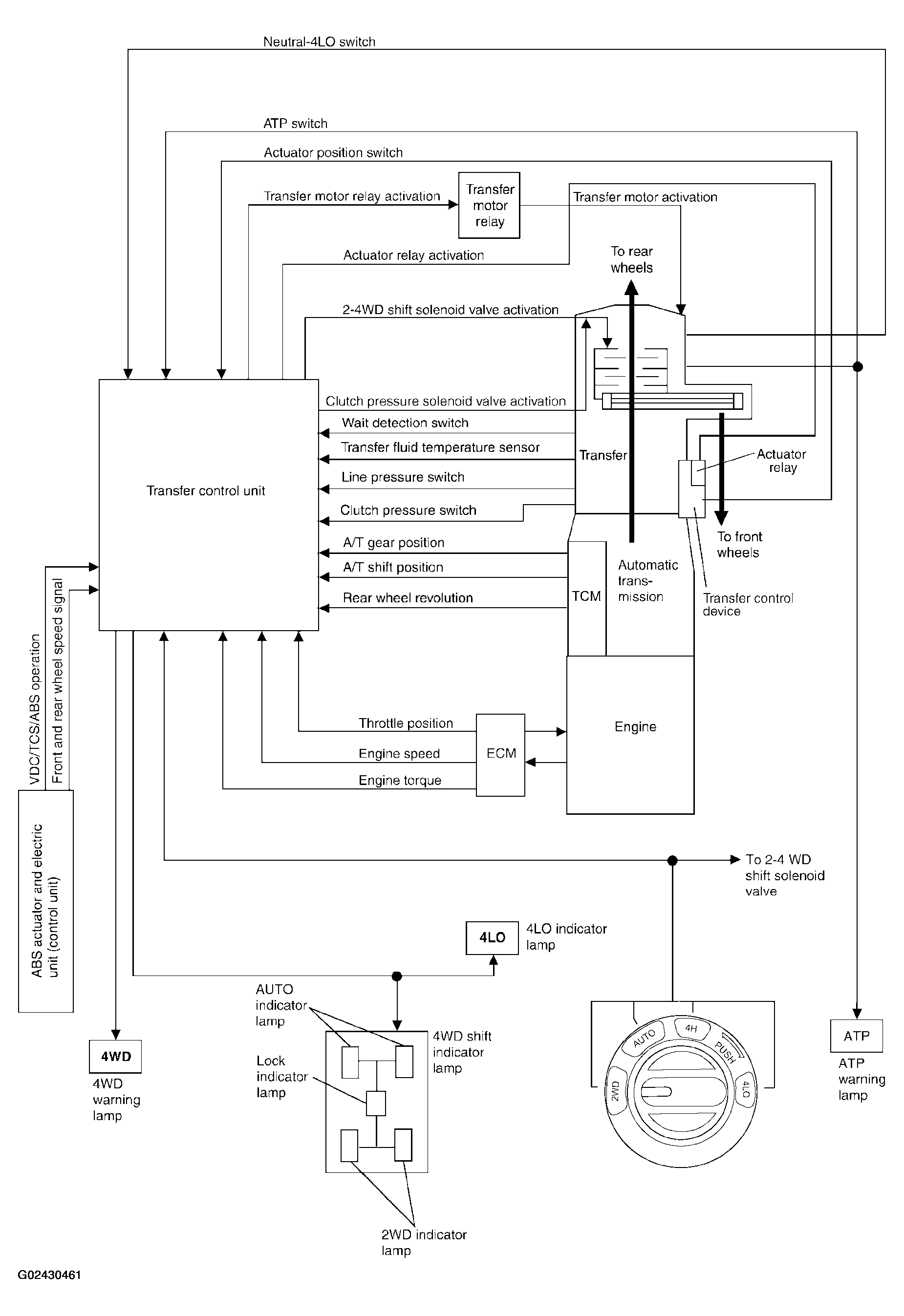

Fig 1: Control System Diagram (Transfer Case) - ATX14B

G02430461

Courtesy of NISSAN MOTOR CO., U.S.A.
