Checking Fluid Level

Check fluid level, referring to the scale on the reservoir tank.

Use HOT range for fluid temperatures of 50° - 80°C (122° - 176°F).

Use COLD range for fluid temperatures of 0deg; - 30°C (32deg; - 86°F).

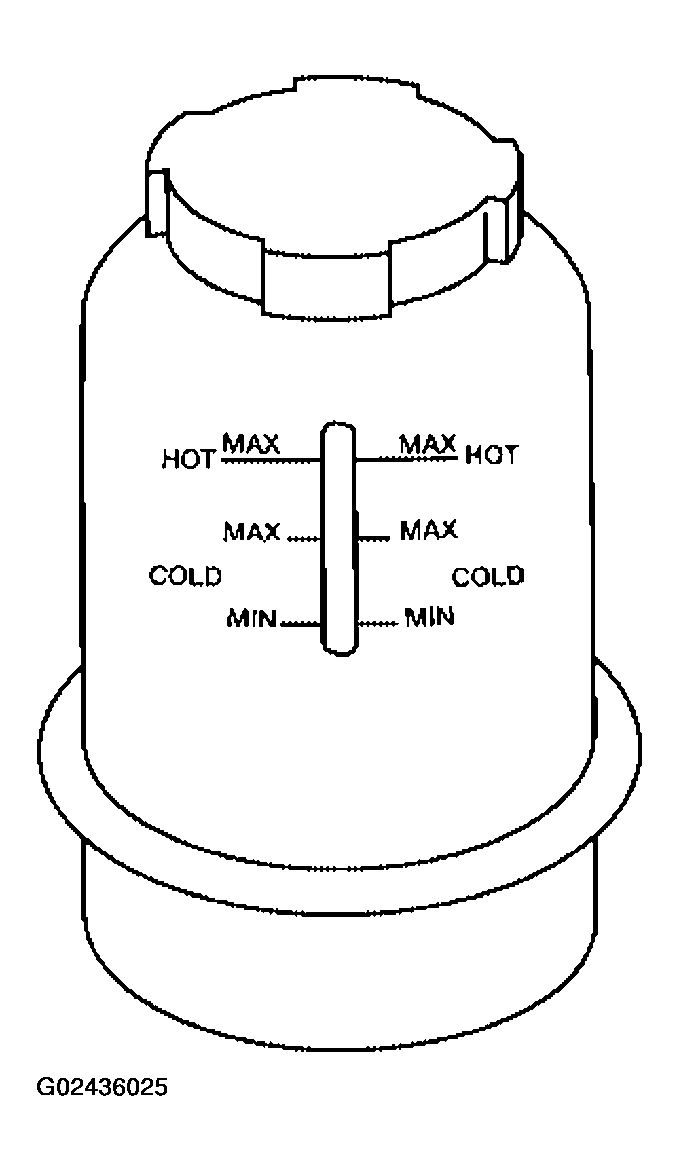

Fig 1: Identifying Power Steering Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.
