Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/T Device (M156) | Under center console. See Figure. |
| BOSE Speaker Amp (B74 & B75) | Under driver's seat. See Figure. |
| Condenser-1 (F21) | On top of engine. See Figure. |
| Data Link Connector (M22) | On lower left dash panel. See Figure. |
| Diode 1 (M139) | Behind left side of dash. See Figure. |
| Diode 2 (M140) | Behind left side of dash. See Figure. |
| Diode 5 (M157) | Behind left side of dash. See Figure. |
| Electric Brake (Pre-Wiring) (M76) | Under left side of dash. See Figure. |
| Front Blower Motor Resistor (With MTC) | Behind right side of dash. See Figure. |
| Front Left Seat Belt Pre-Tensioner (B14) | At left "B" pillar. See Figure. |
| Front Left Side Air Bag Module (B10) | In driver's seat. See Figure. |
| Front Passenger Air Bag Module (M106 & M106) | Behind right side of dash. See Figure. |
| Front Passenger Air Bag Module (Service Replacement) (M77) | Behind right side of dash. See Figure. |
| Front Right Seat Belt Pre-Tensioner (B127) | At right "B" pillar. See Figure. |
| Front Right Side Air Bag Module (B126) | In passenger's seat. See Figure. |
| Horn (E3 & E162) | At front of engine compartment. See Figure. |
| Ignition Coil No. 1 (With Power Transistor) (F126) | At top right of engine. See Figure. |
| Ignition Coil No. 2 (With Power Transistor) (F6) | At top left of engine. See Figure. |
| Ignition Coil No. 3 (With Power Transistor) (F127) | At top right of engine. See Figure. |
| Ignition Coil No. 4 (With Power Transistor) (F7) | At top left of engine. See Figure. |
| Ignition Coil No. 5 (With Power Transistor) (F128) | At top right of engine. See Figure. |
| Ignition Coil No. 6 (With Power Transistor) (F8) | At top left of engine. See Figure. |
| LH Side Front Curtain Air Bag Module (B38) | At top of left "A" pillar. See Figure. |
| LH Side Rear Curtain Air Bag Module (B54) | At left "C" pillar. See Figure. |

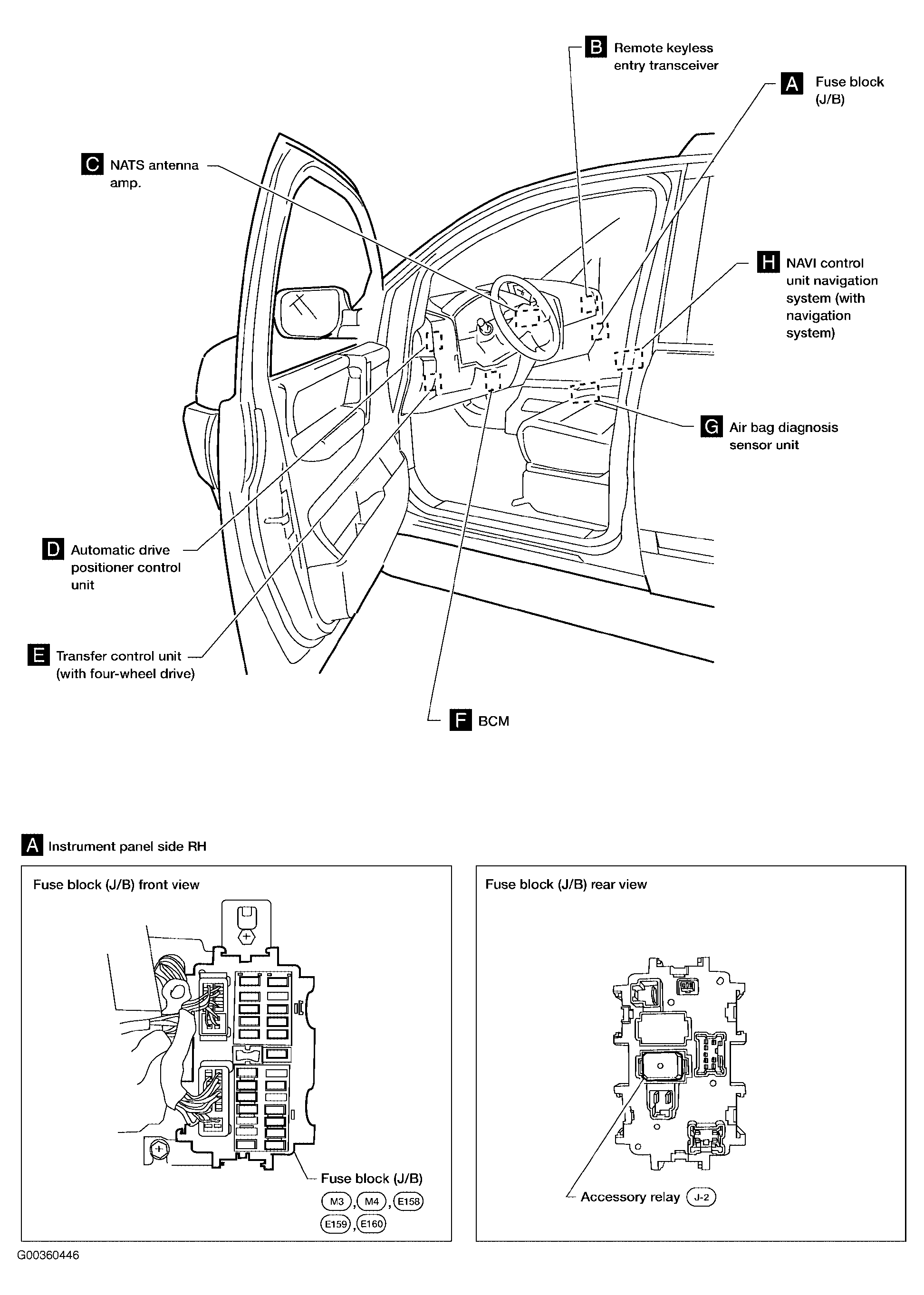

| NATS Antenna Amp | Behind center of dash. See Figure. |
| Rear Blower Motor Resistor (B133) | Right side of cargo area. See Figure. |
| RH Side Front Curtain Air Bag Module (B82) | At top of right "A" pillar. See Figure. |
| RH Side Rear Curtain Air Bag Module (B128) | On right "C" pillar. See Figure. |
| Terminal Cord Assembly (All-Mode 4WD) (F56) | At top rear of transmission. See Figure. |
| Tire Pressure Warning Check Connector (M123) | Under left side of dash. See Figure. |

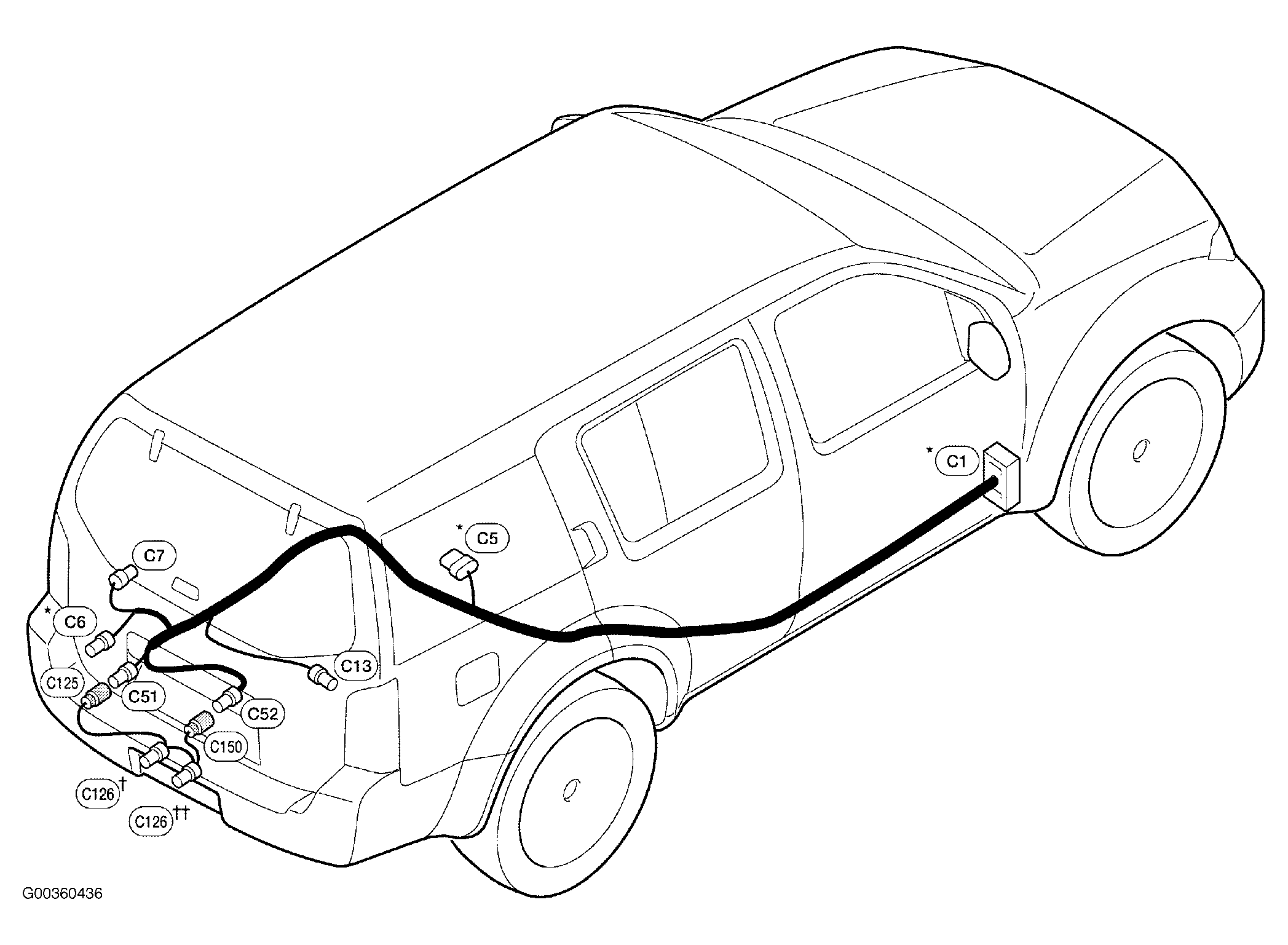

| Trailer Connector (C126) | At rear of vehicle. See Figure. |
| Transfer Control Device (F58) | On left side of transfer case. See Figure. |
| Transfer Dropping Resistor (E135) | At left side of engine compartment. See Figure. |
