Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

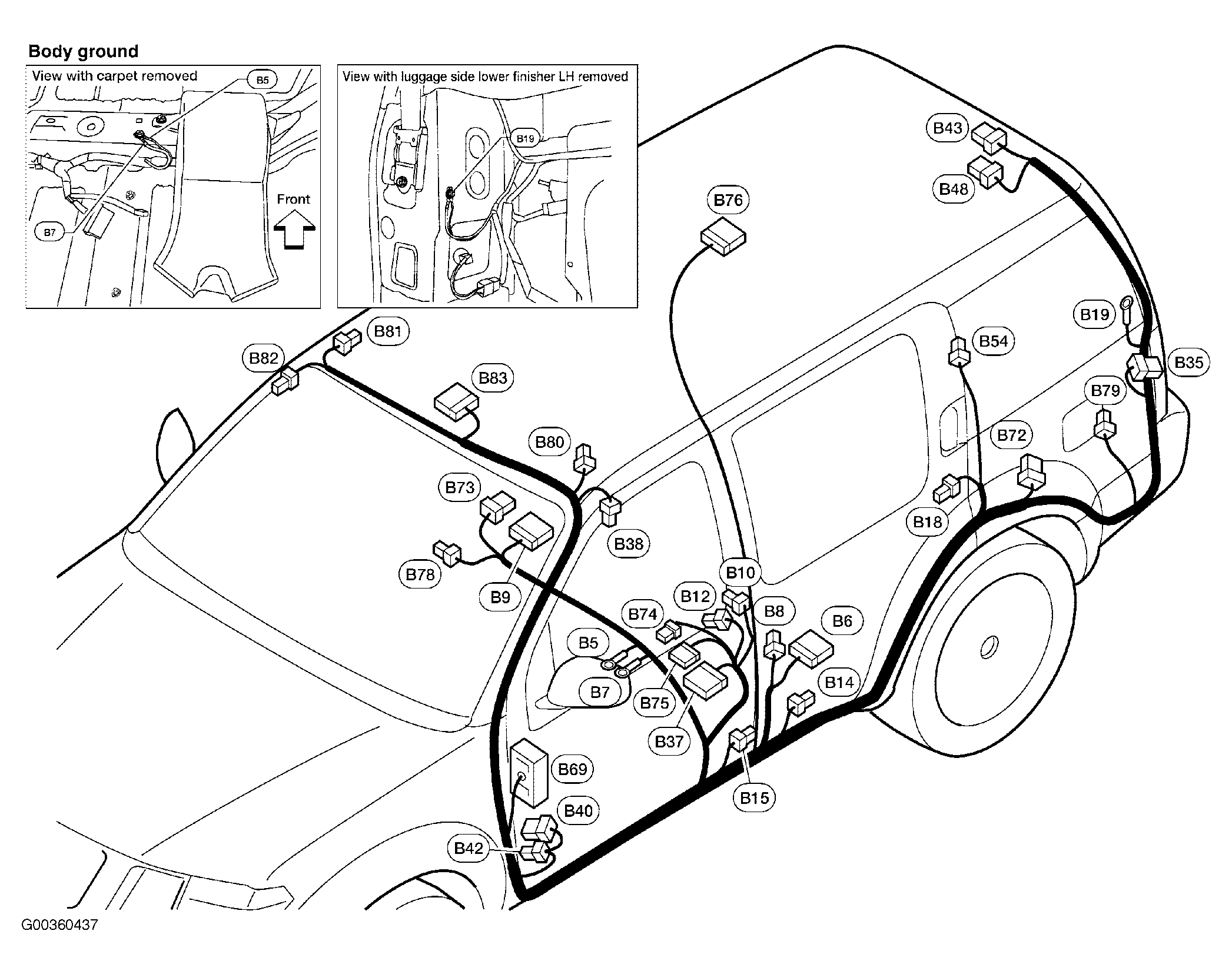

| B5 | Under driver's seat. See Figure. |
| B7 | Under driver's seat. See Figure. |
| B19 | Left "D" pillar. See Figure. |

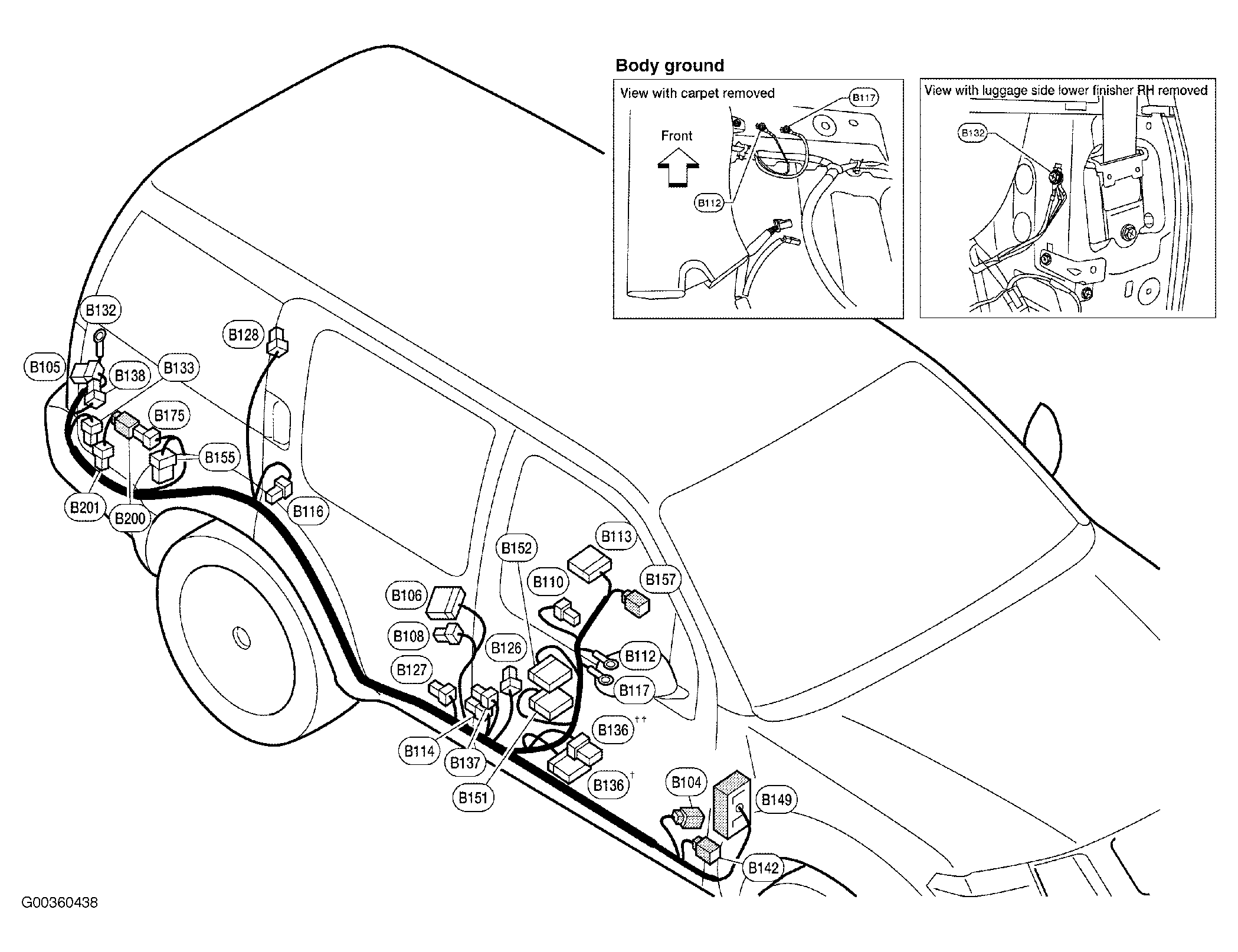

| B112 | Under passenger's seat. See Figure. |
| B117 | Under passenger's seat. See Figure. |
| B132 | At right "D" pillar. See Figure. |

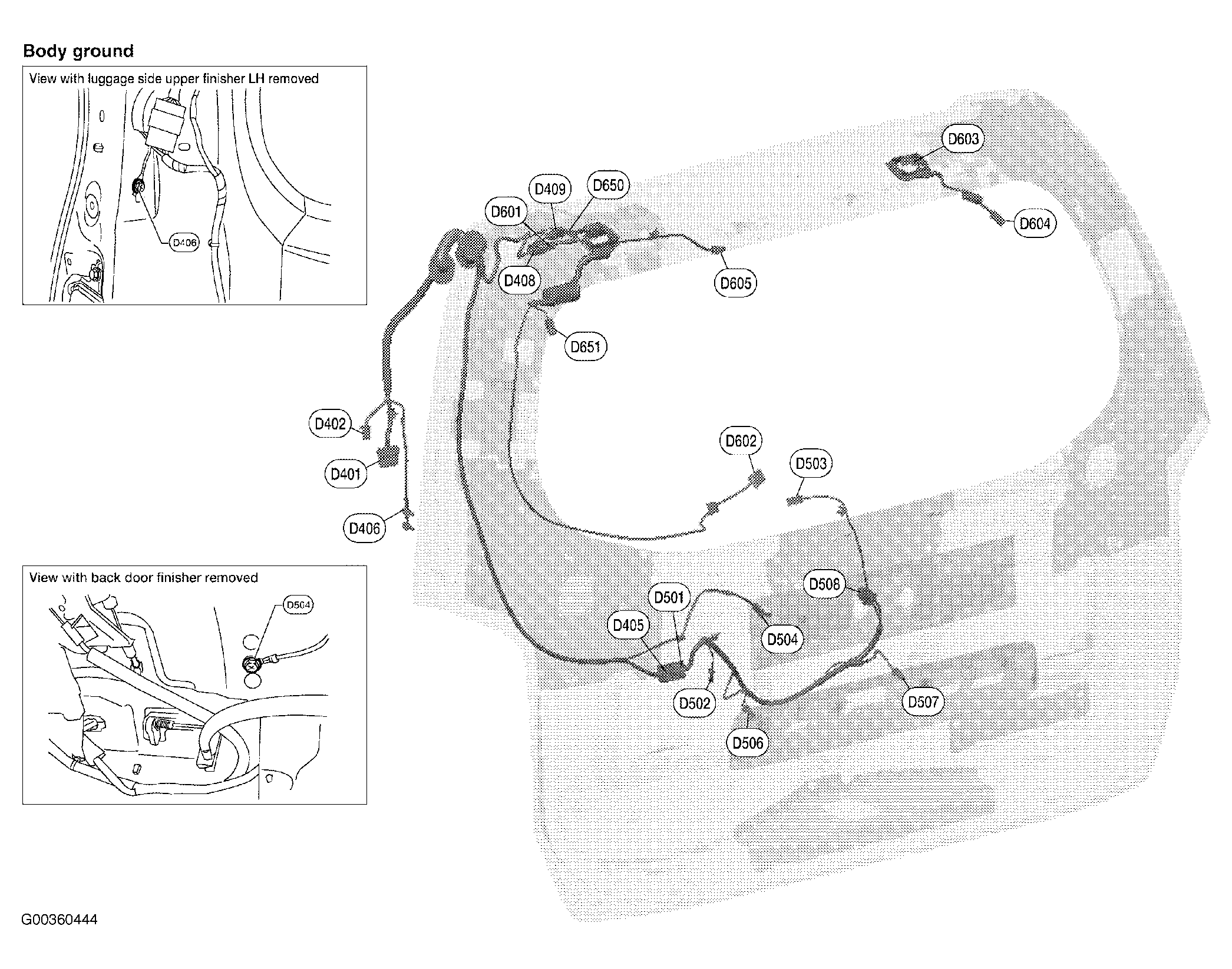

| D406 | At right "D" pillar. See Figure. |
| D504 | In back door. See Figure. |
| D603 | Top of back door. See Figure. |

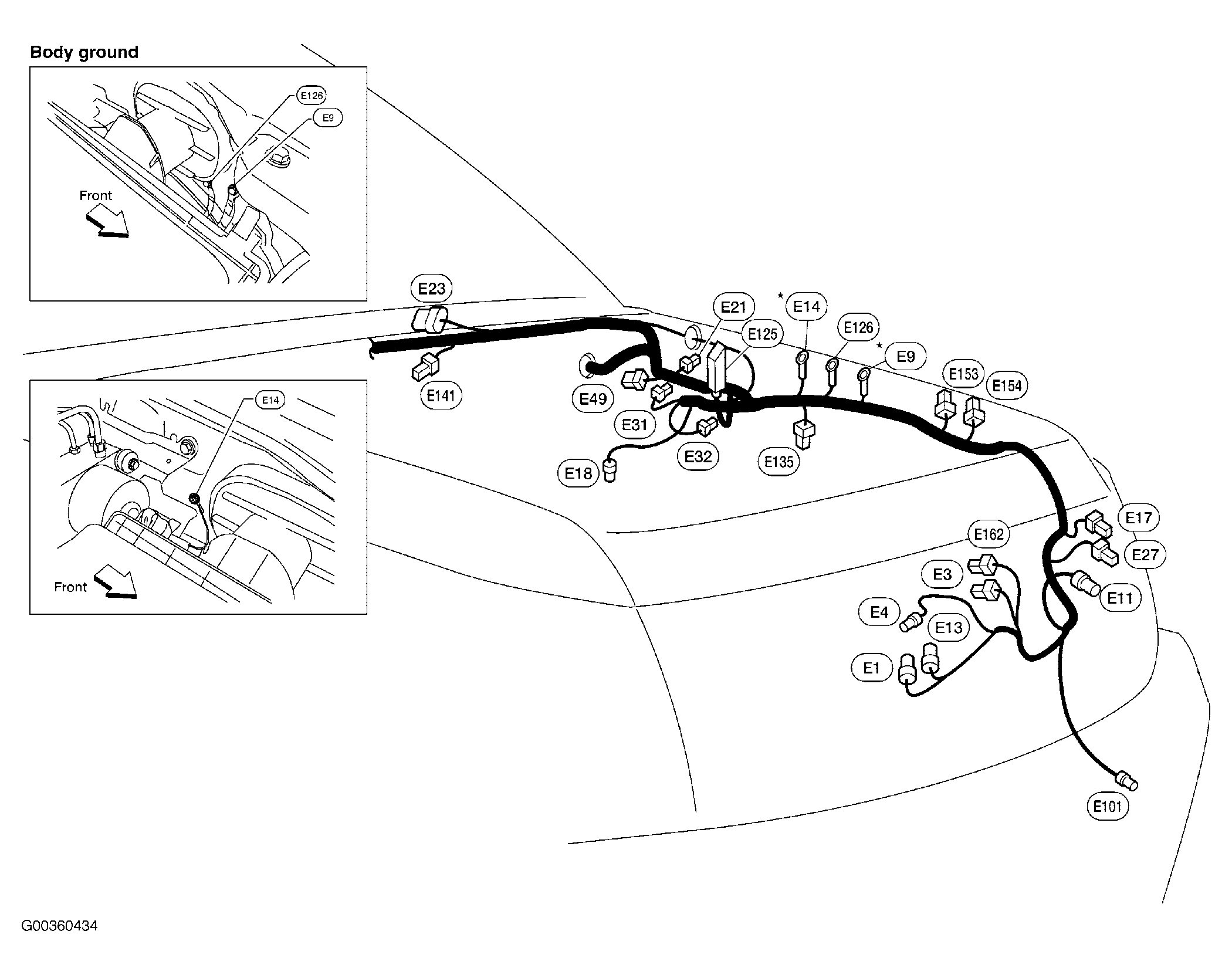

| E9 | Left side of engine compartment. See Figure. |
| E14 | Left side of engine compartment. See Figure. |

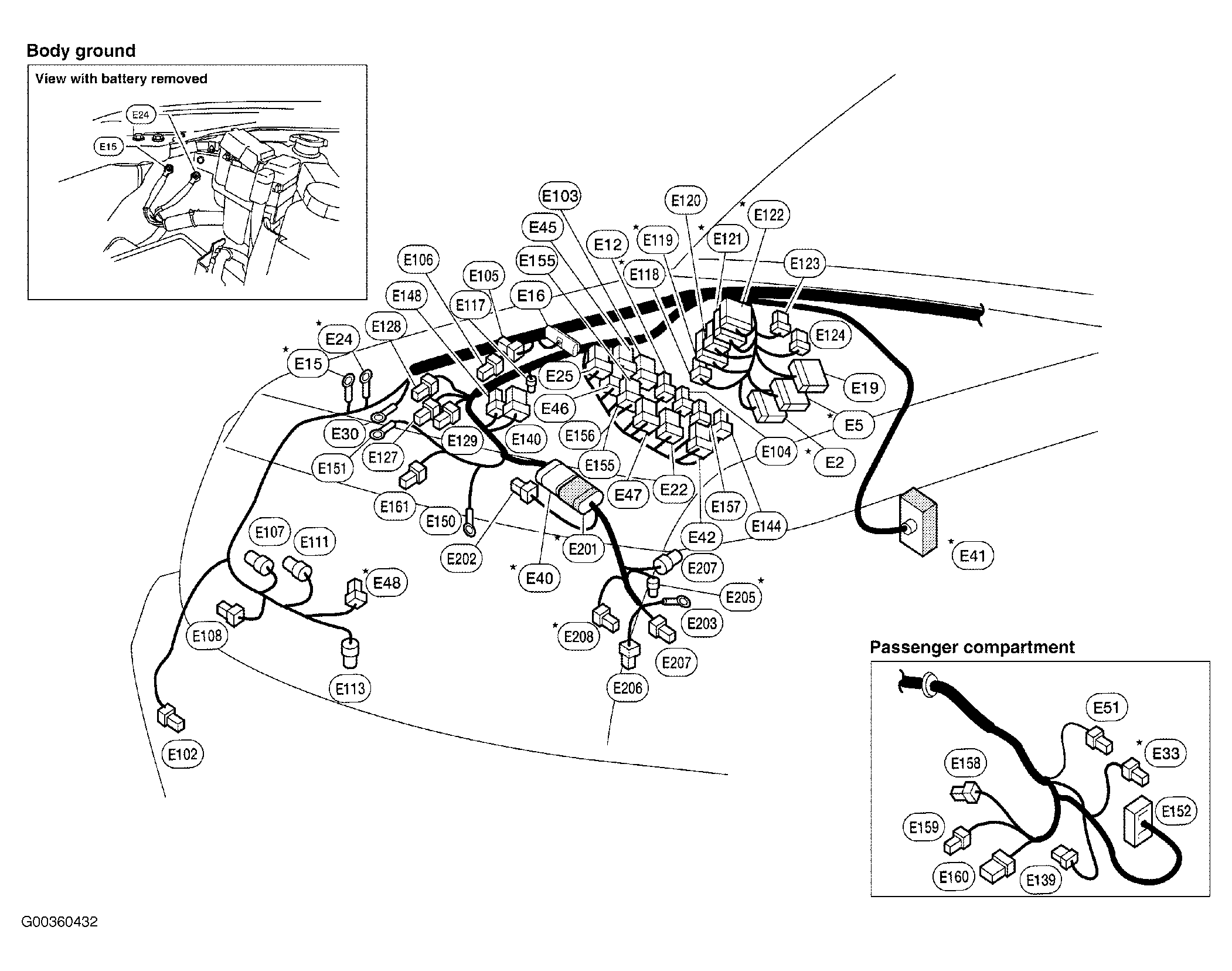

| E15 | Right front of engine compartment. See Figure. |
| E24 | Right front of engine compartment. See Figure. |
| E126 | Left side of engine compartment. See Figure. |
| E150 | Right front of engine compartment. See Figure. |
| E203 | Right side of engine compartment. See Figure. |

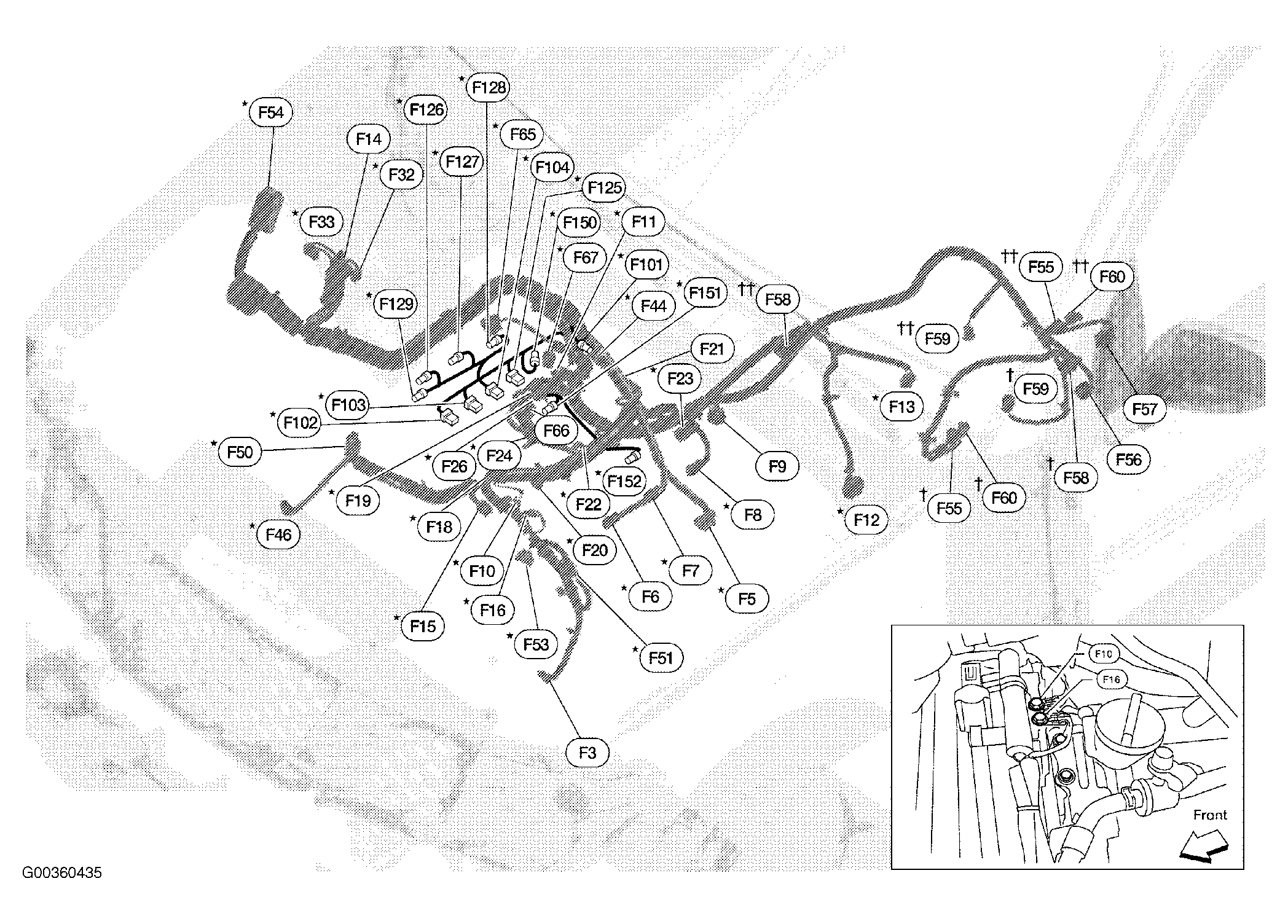

| F10 | Left side of engine. See Figure. |
| F16 | On left side of engine. See Figure. |

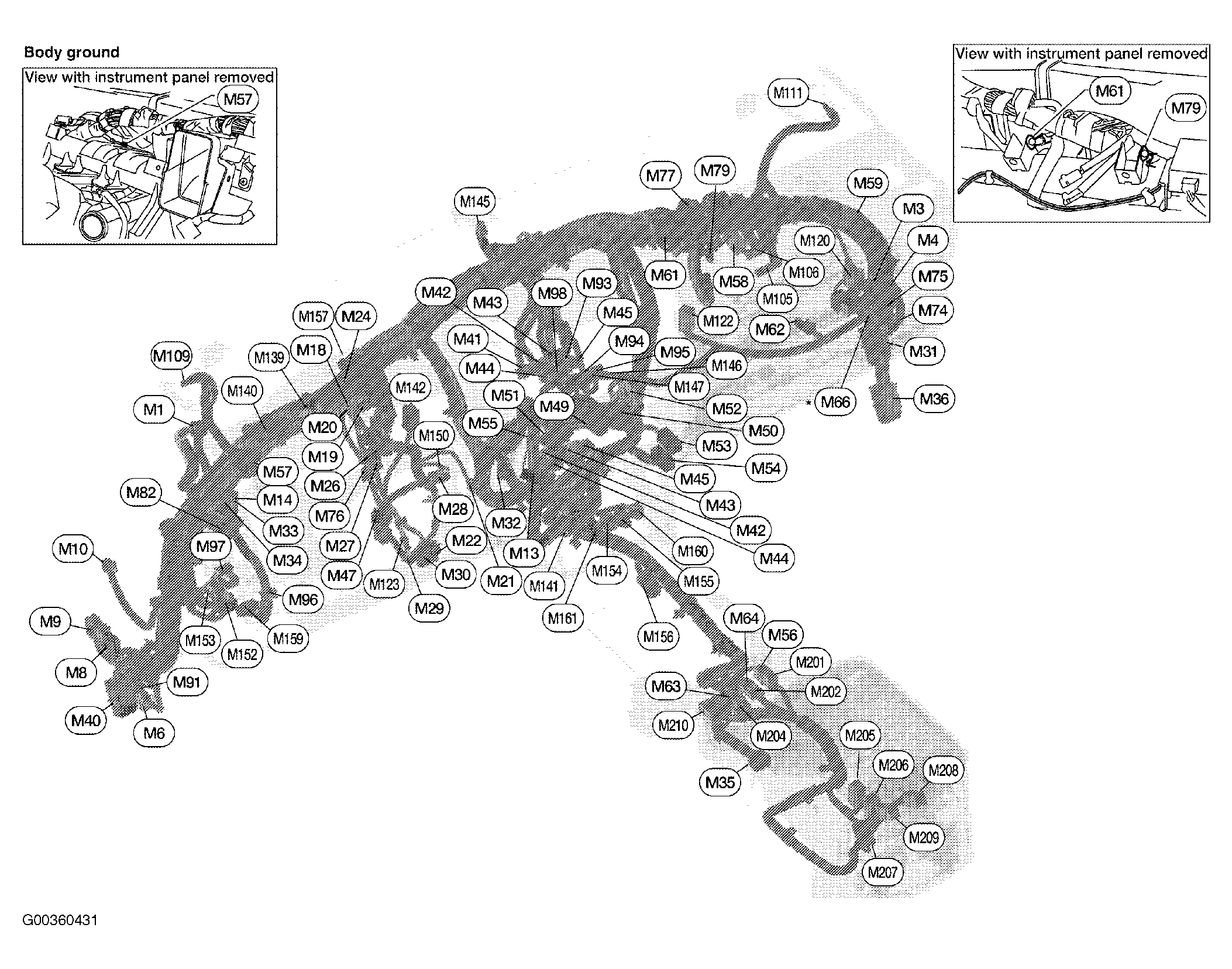

| M57 | Behind left side of dash. See Figure. |
| M61 | Behind right side of dash. See Figure. |
| M79 | Behind right side of dash. See Figure. |
