Control Units

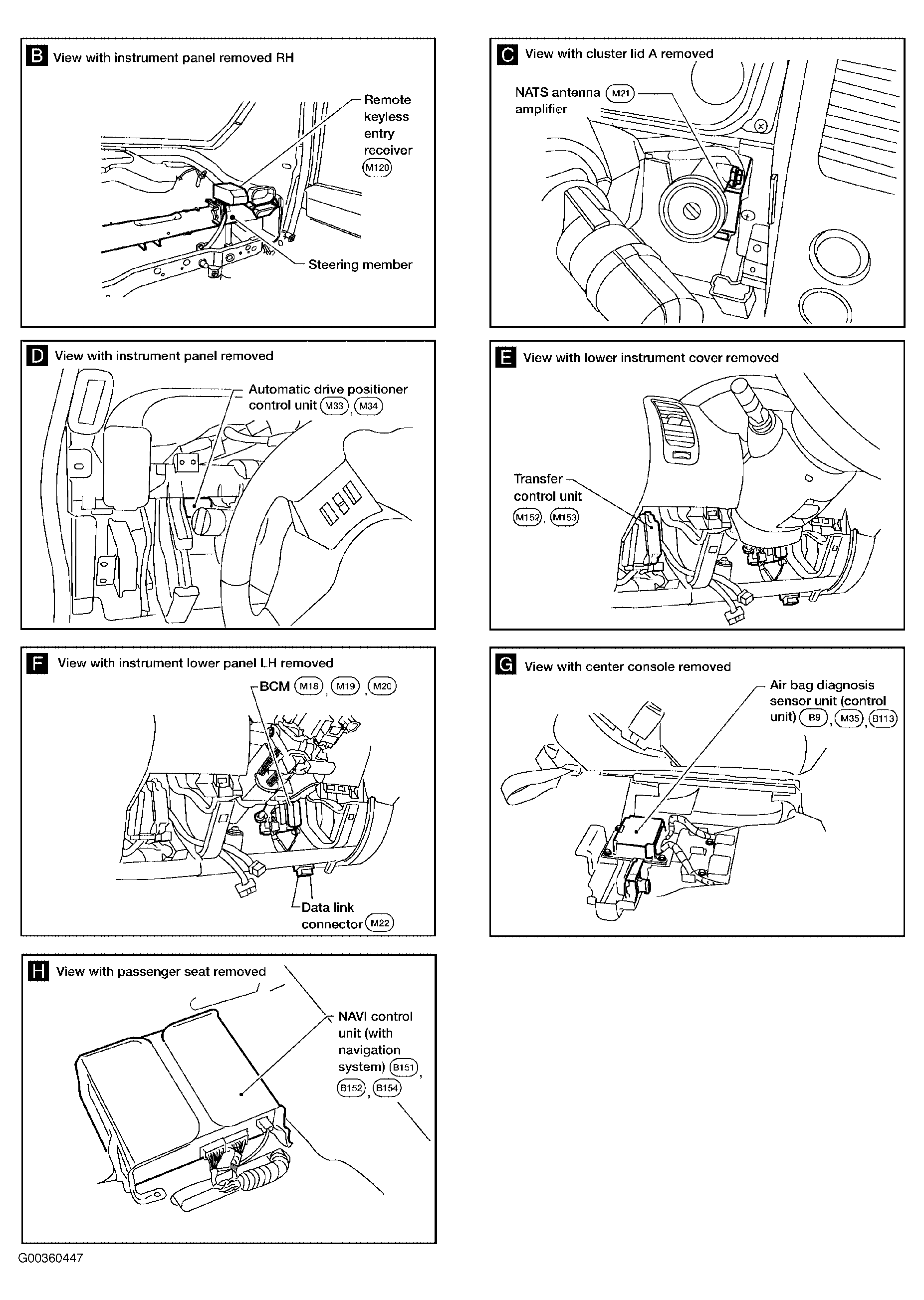

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit | On left side of engine compartment. See Figure. |
| Air Bag Diagnosis Sensor Unit | Under center console. See Figure. |
| Automatic Driver Positioner Control Unit | Behind left side of dash. See Figure. |
| BCM | Under left side of dash. See Figure. |
| ECM | Right rear of engine compartment. See Figure. |
| NAVI Control Unit | Under passenger's seat. See Figure. |
| Pedal Adjusting Control Unit (M14) | Behind left side of dash. See Figure. |
| Remote Keyless Entry Transceiver | Behind right side of dash. See Figure. |
| Transfer Case Control Unit (M152) | Near left kick panel. See Figure. |
| Transfer Control Unit | Behind left side of dash panel. See Figure. |
