Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| B6 (White, 12 Pin) | Under left rear seat. See Figure. |
| B37 (White, 16 Pin) | Under driver's seat. See Figure. |
| B40 (White, 8 Pin) | At left kick panel. See Figure. |
| B42 (White, 2 Pin) | At left kick panel. See Figure. |
| B43 (White, 8 Pin) | At rear of roof. See Figure. |
| B48 (White, 6 Pin) | At rear of roof. See Figure. |
| B69 (SMJ) | At left kick panel. See Figure. |
| B78 (Yellow, 2 Pin) | Under center console. See Figure. |
| B104 (White, 2 Pin) | At right kick panel. See Figure. |
| B106 (White, 12 Pin) | In right "B" pillar. See Figure. |
| B136 (Without Power Seat) (White, 8 Pin) | Under passenger's seat. See Figure. |
| B136 (With Power Seat) (White, 16 Pin) | Under passenger's seat. See Figure. |
| B142 (White, 4 Pin) | At right kick panel. See Figure. |
| B149 (SMJ) | At right kick panel. See Figure. |
| B157 (Yellow, 2 Pin) | Under center console. See Figure. |
| B175 (White, 2 Pin) | Right side of cargo area. See Figure. |
| B200 (White, 2 Pin) | Right side of cargo area. See Figure. |
| C1 (SMJ) | At right kick panel. See Figure. |
| C51 (Gray, 6 Pin) | Under rear of vehicle. See Figure. |
| C52 (Black, 2 Pin) | At rear of vehicle. See Figure. |
| C125 (Gray, 6 Pin) | At rear of vehicle. See Figure. |
| C150 (Black, 2 Pin) | At rear of vehicle. See Figure. |

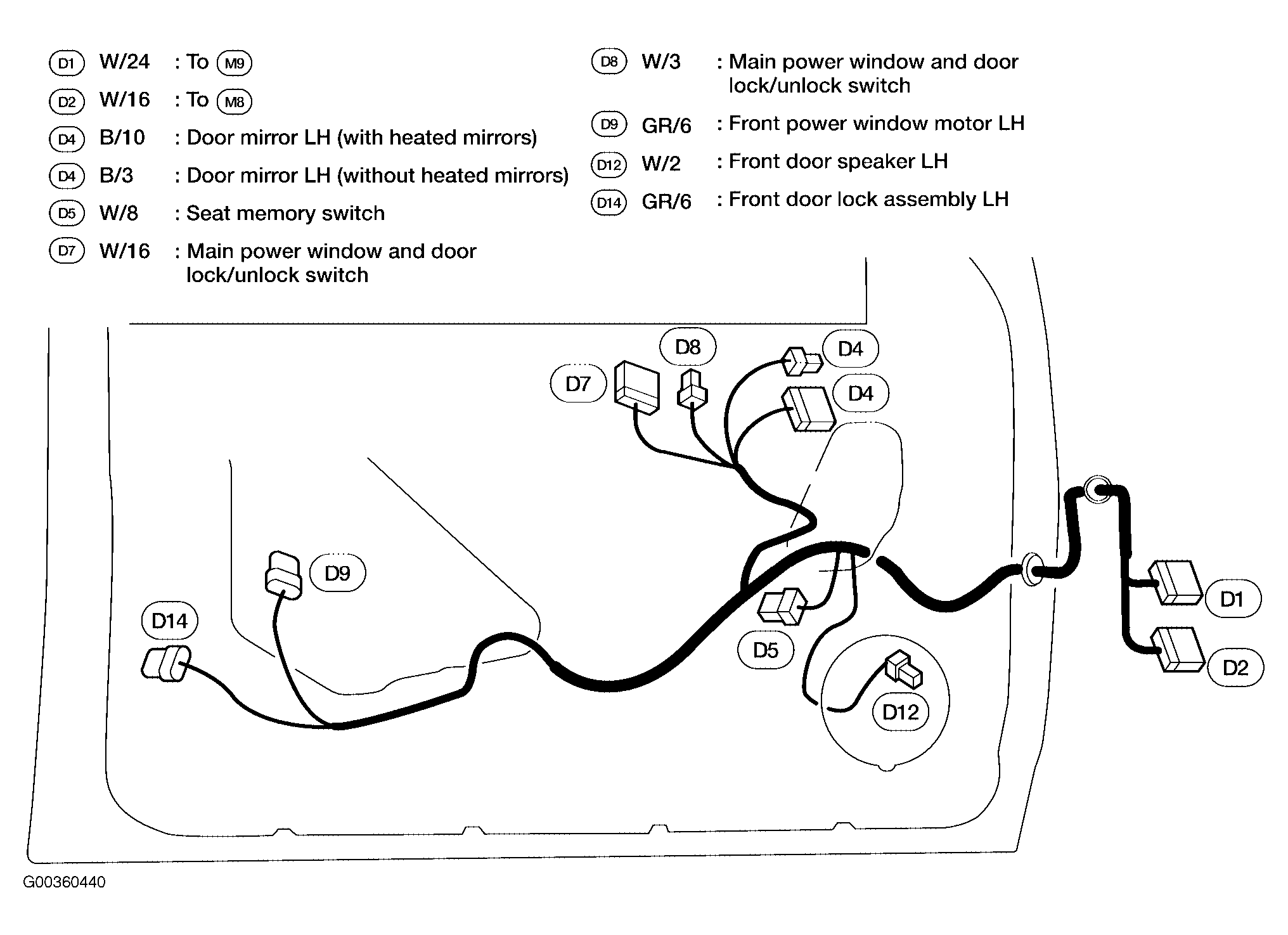

| D1 (White, 24 Pin) | At left kick panel. See Figure. |
| D2 (White, 16 Pin) | At left kick panel. See Figure. |

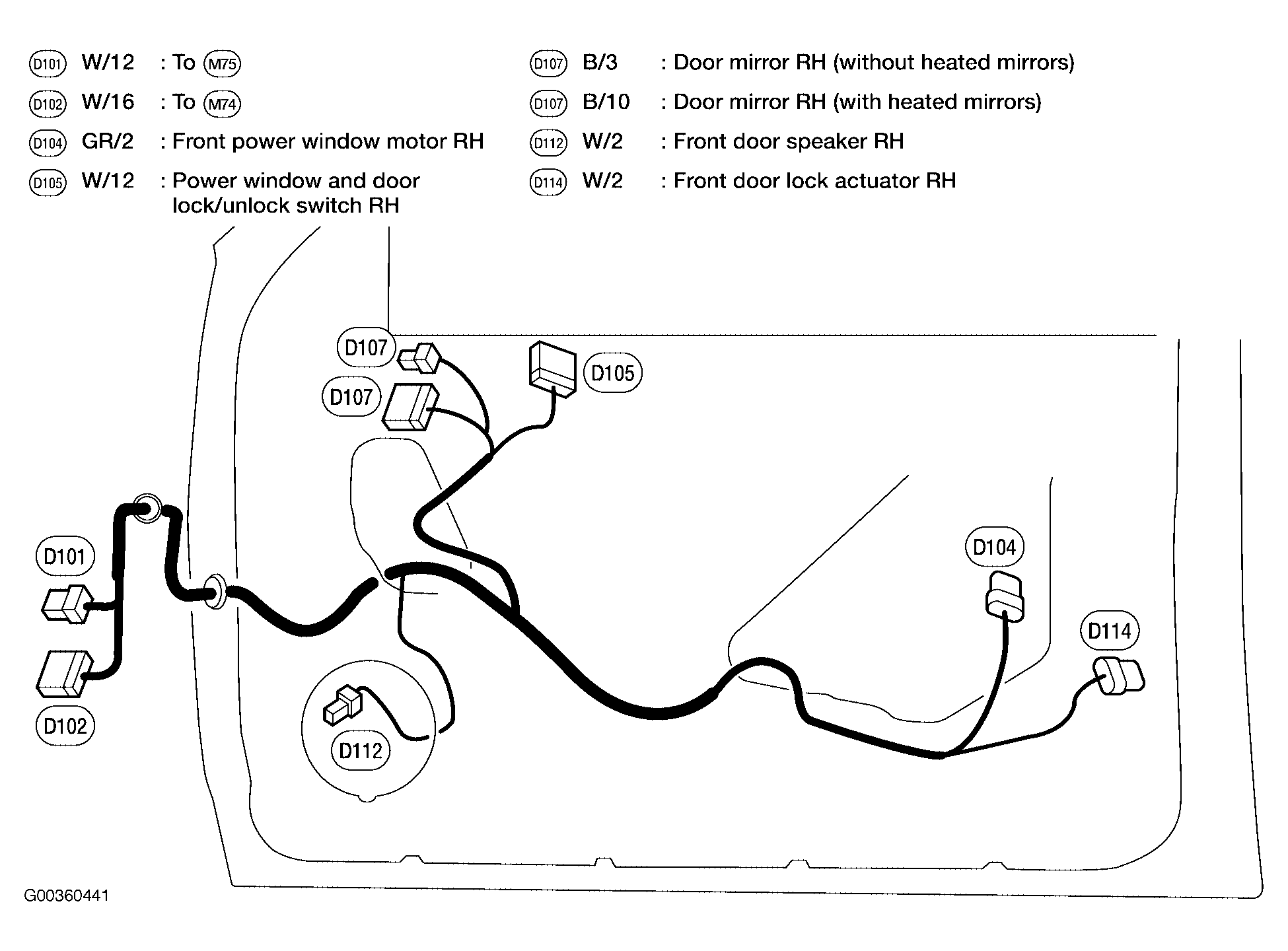

| D101 (White, 12 Pin) | At right kick panel. See Figure. |
| D102 (White, 16 Pin) | At right kick panel. See Figure. |

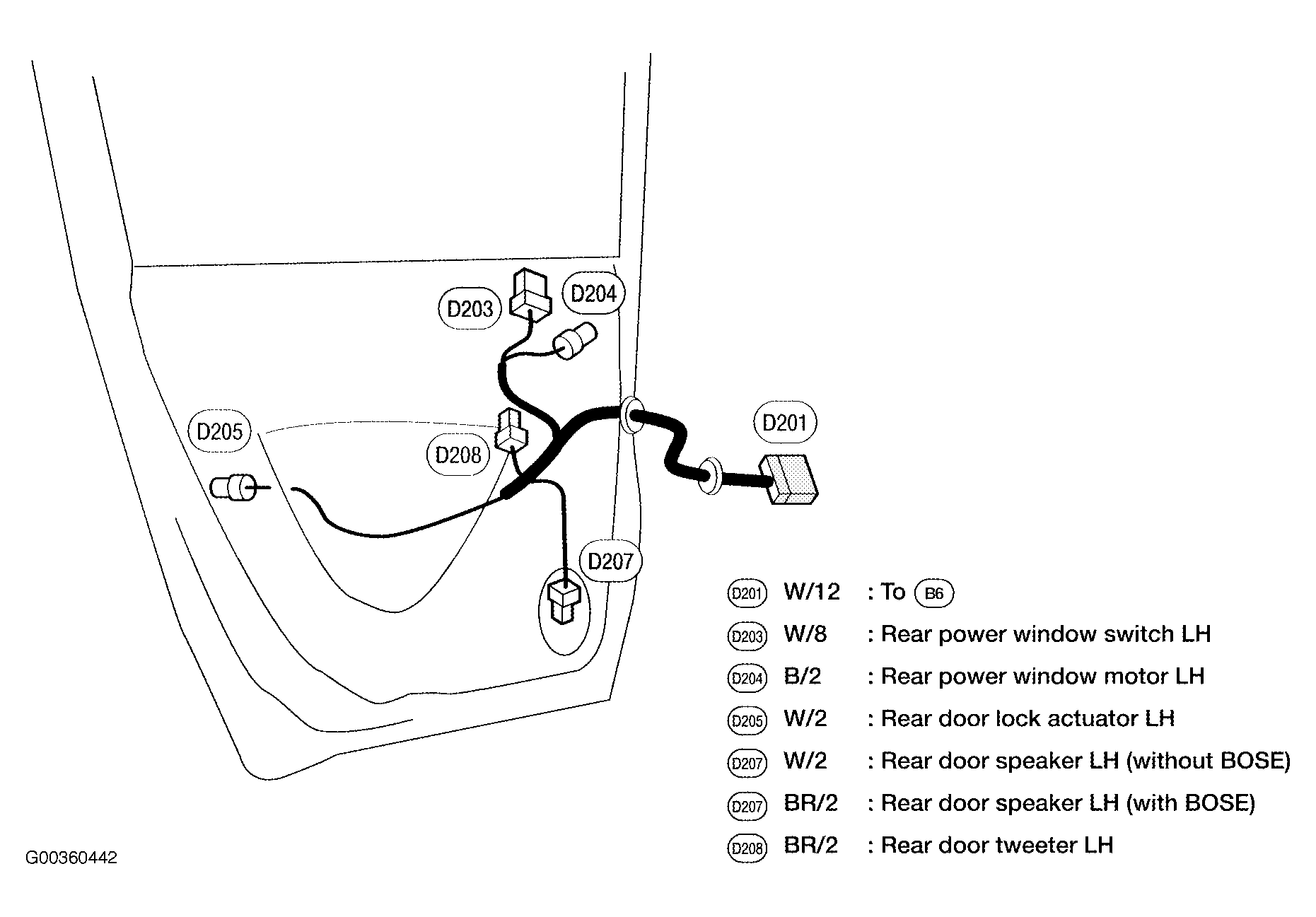

| D201 (White, 12 Pin) | In left "B" pillar. See Figure. |

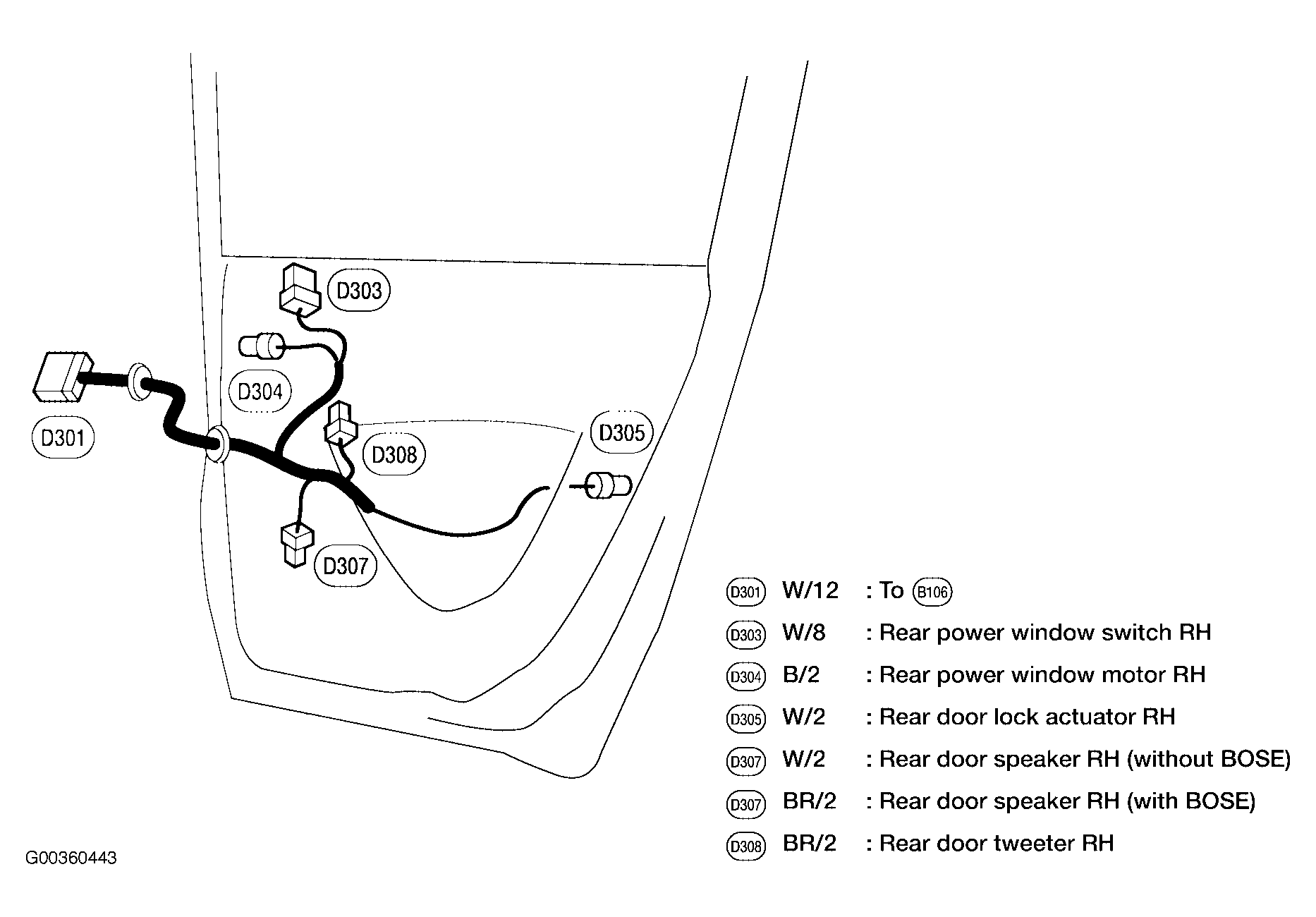

| D301 (White, 12 Pin) | In right "B" pillar. See Figure. |
| D401 (White, 8 Pin) | At left "D" pillar. See Figure. |
| D402 (White, 6 Pin) | At left "D" pillar. See Figure. |
| D405 (White, 8 Pin) | In back door. See Figure. |
| D408 (White, 4 Pin) | Top left side of back door. See Figure. |
| D409 (White, 1 Pin) | Top left side of back door. See Figure. |
| D501 (White, 8 Pin) | In back door. See Figure. |
| D601 (White, 4 Pin) | Top left side of back door. See Figure. |
| D650 (White, 1 Pin) | Top left side of back door. See Figure. |
| E2 (White, 16 Pin) | Right rear of engine compartment. See Figure. |
| E5 (White, 24 Pin) | Right rear of engine compartment. See Figure. |

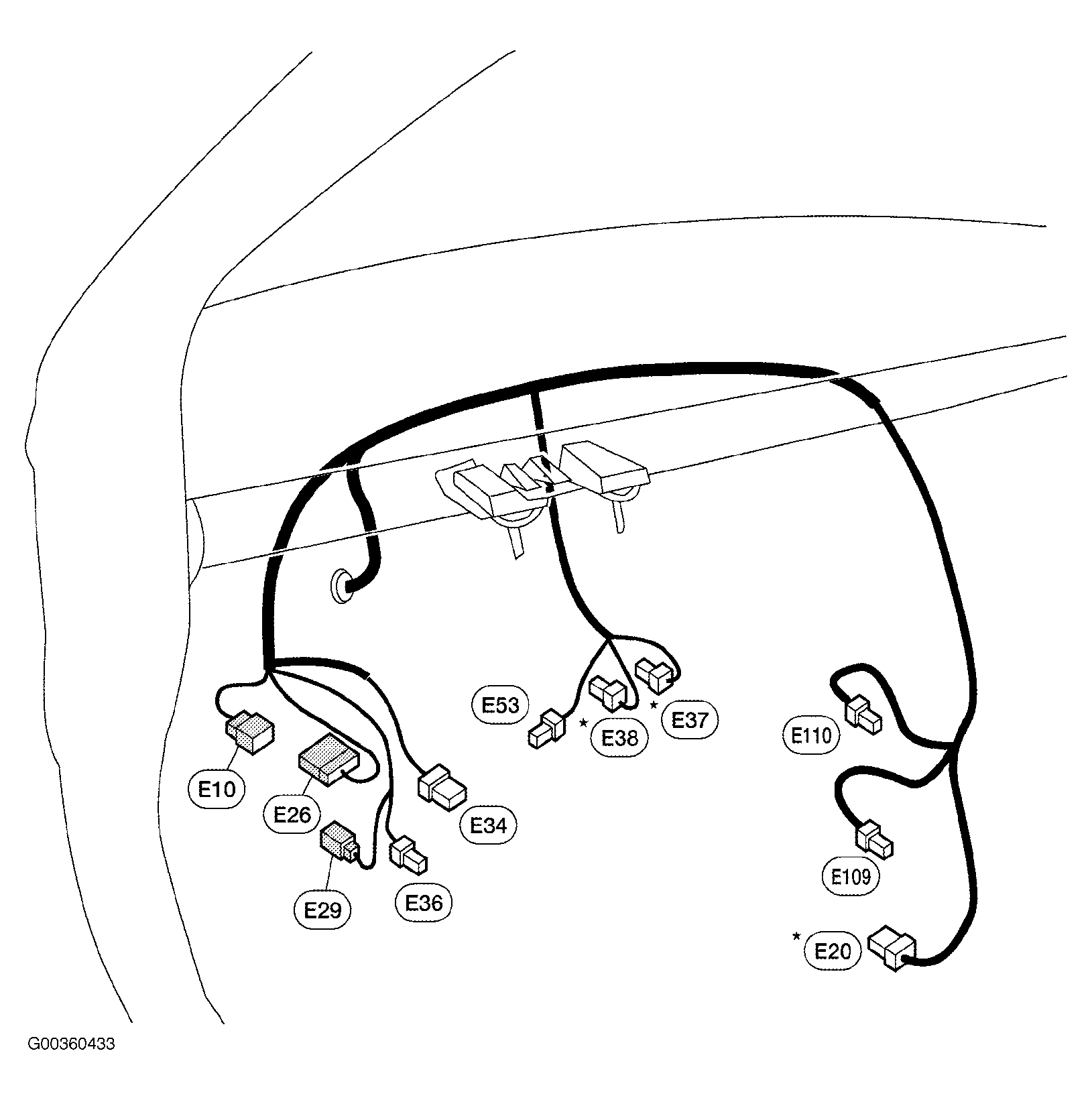

| E10 (White, 6 Pin) | Under left side of dash. See Figure. |
| E19 (White, 16 Pin) | Right rear of engine compartment. See Figure. |
| E26 (White, 16 Pin) | Under left side of dash. See Figure. |
| E29 (Yellow, 4 Pin) | Under left side of dash. See Figure. |
| E33 (Black, 1 Pin) | Under right side of dash. See Figure. |
| E34 (White, 8 Pin) | Under left side of dash. See Figure. |
| E36 (White, 2 Pin) | Under left side of dash. See Figure. |
| E40 (Gray, 9 Pin) | Right side of engine compartment. See Figure. |
| E41 (SMJ) | Right rear of engine compartment. See Figure. |
| E51 (White, 2 Pin) | Under right side of dash. See Figure. |
| E139 (White, 8 Pin) | Under right side of dash. See Figure. |
| E152 (SMJ) | Under right side of dash. See Figure. |
| E201 (Gray, 9 Pin) | Near generator. See Figure. |
| F14 (White, 24 Pin) | Top right side of engine. See Figure. |
| F26 (Green, 8 Pin) | On left side of engine. See Figure. |
| F32 (White, 16 Pin) | Right side of engine compartment. See Figure. |
| F33 (White, 16 Pin) | Right side of engine compartment. See Figure. |
| F44 (Gray, 4 Pin) | Left rear of engine. See Figure. |
| F67 (Blue, 4 Pin) | At rear of engine. See Figure. |
| F101 (Gray, 4 Pin) | At left rear of engine. See Figure. |
| F125 (Green, 8 Pin) | On top of engine. See Figure. |
| F150 (Blue, 4 Pin) | On top of engine. See Figure. |
| M1 (White, 12 pin) | At left "A" pillar. See Figure. |
| M6 (White, 6 Pin) | Left kick panel. See Figure. |
| M8 (White, 16 Pin) | Left kick panel. See Figure. |
| M9 (White, 24 Pin) | Left kick panel. See Figure. |
| M10 (Yellow, 4 Pin) | Left kick panel. See Figure. |
| M31 (SMJ) | Right kick panel. See Figure. |
| M36 (SMJ) | Right kick panel. See Figure. |
| M40 (SMJ) | Left kick panel. See Figure. |
| M56 (White, 16 Pin) | In center console. See Figure. |
| M63 (White, 6 Pin) | Under center console. See Figure. |
| M64 (White, 6 Pin) | In center console. See Figure. |
| M66 (Black, 1 Pin) | At right end of dash. See Figure. |
| M74 (White, 16 Pin) | At right kick panel. See Figure. |
| M75 (White, 12 Pin) | At right kick panel. See Figure. |
| M91 (White, 16 Pin) | At left kick panel. See Figure. |
| M201 (White, 16 Pin) | Under center console. See Figure. |
| M202 (White, 6 Pin) | In center console. See Figure. |
| M204 (White, 6 Pin) | In center console. See Figure. |
| M210 (White, 18 Pin) | In center console. See Figure. |
