With CONSULT-II

  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.

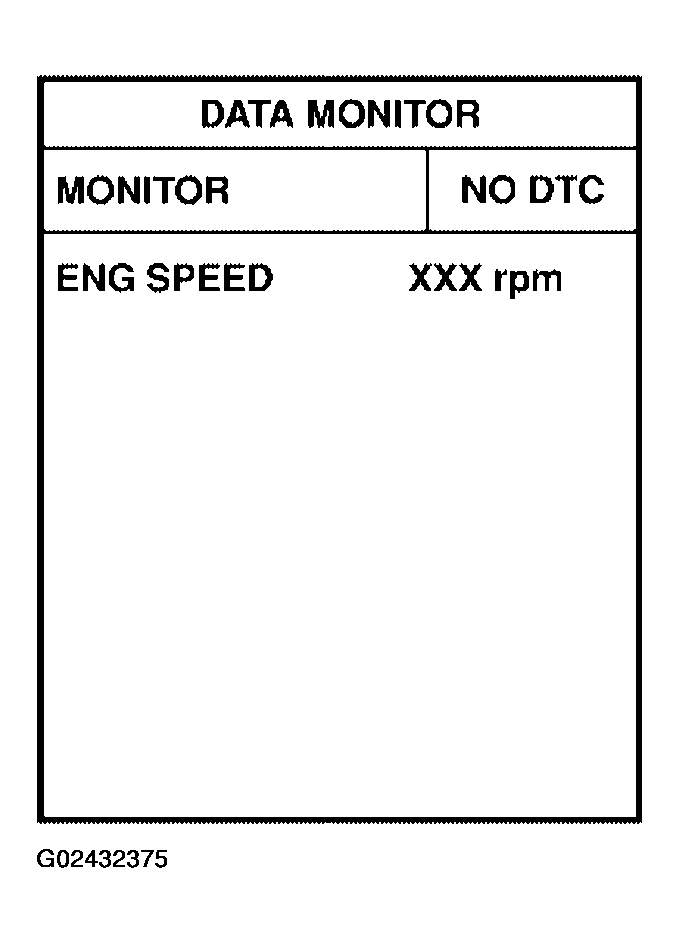

    Fig 1: CONSULT-II Display - Data Monitor Mode
    G02432375Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive the vehicle at more than 40 km/h (25 MPH).
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
