DTC P1217: Engine Over Temperature
>>
Description
>>
System Description
>>
Cooling Fan Operation
Cooling Fan Operation

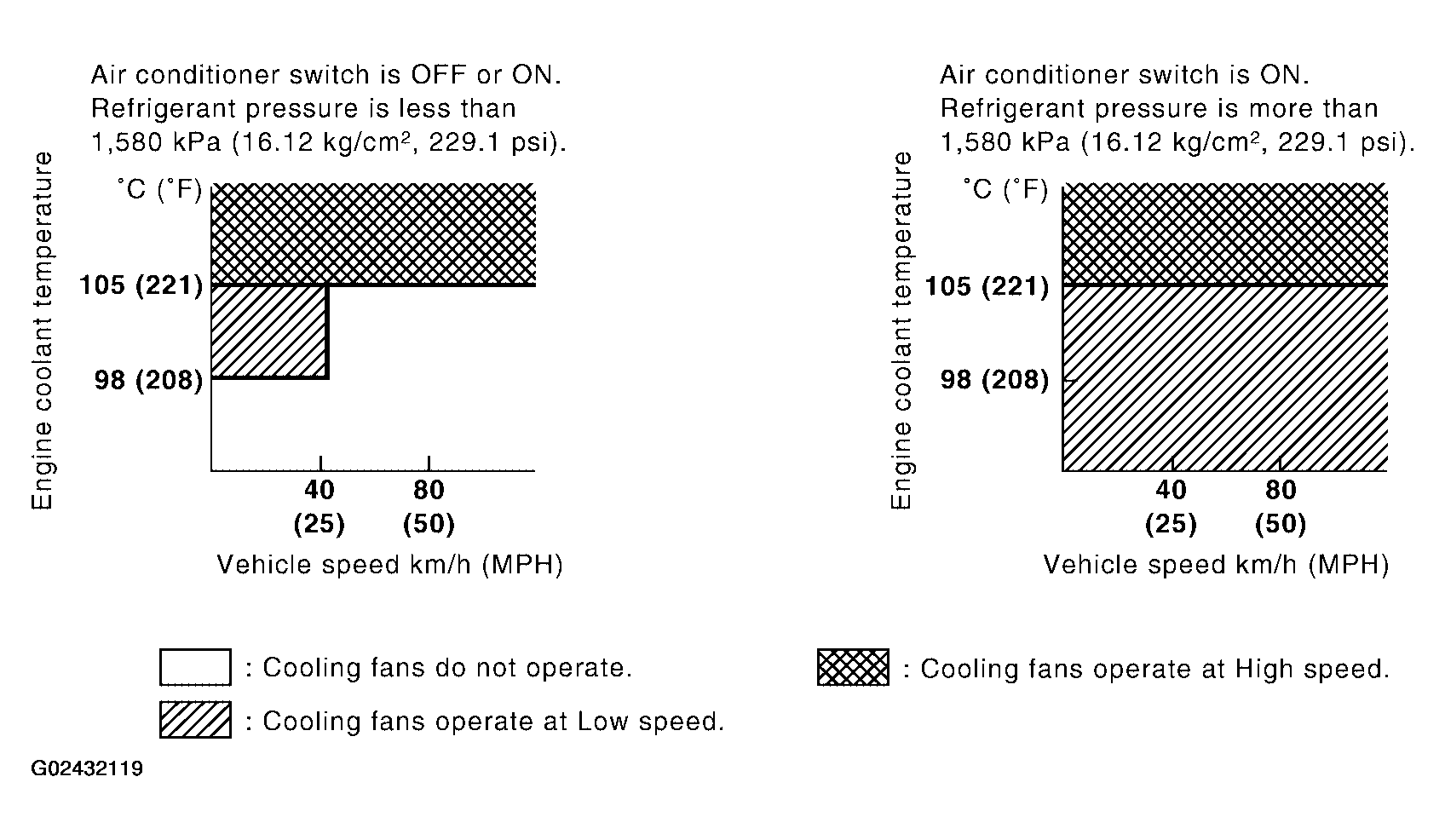

Fig 1: Engine Cooling Fan Operation Based On Engine Temperature & A/C System Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
