DTC P0112, P0113: IAT Sensor: Wiring Diagram

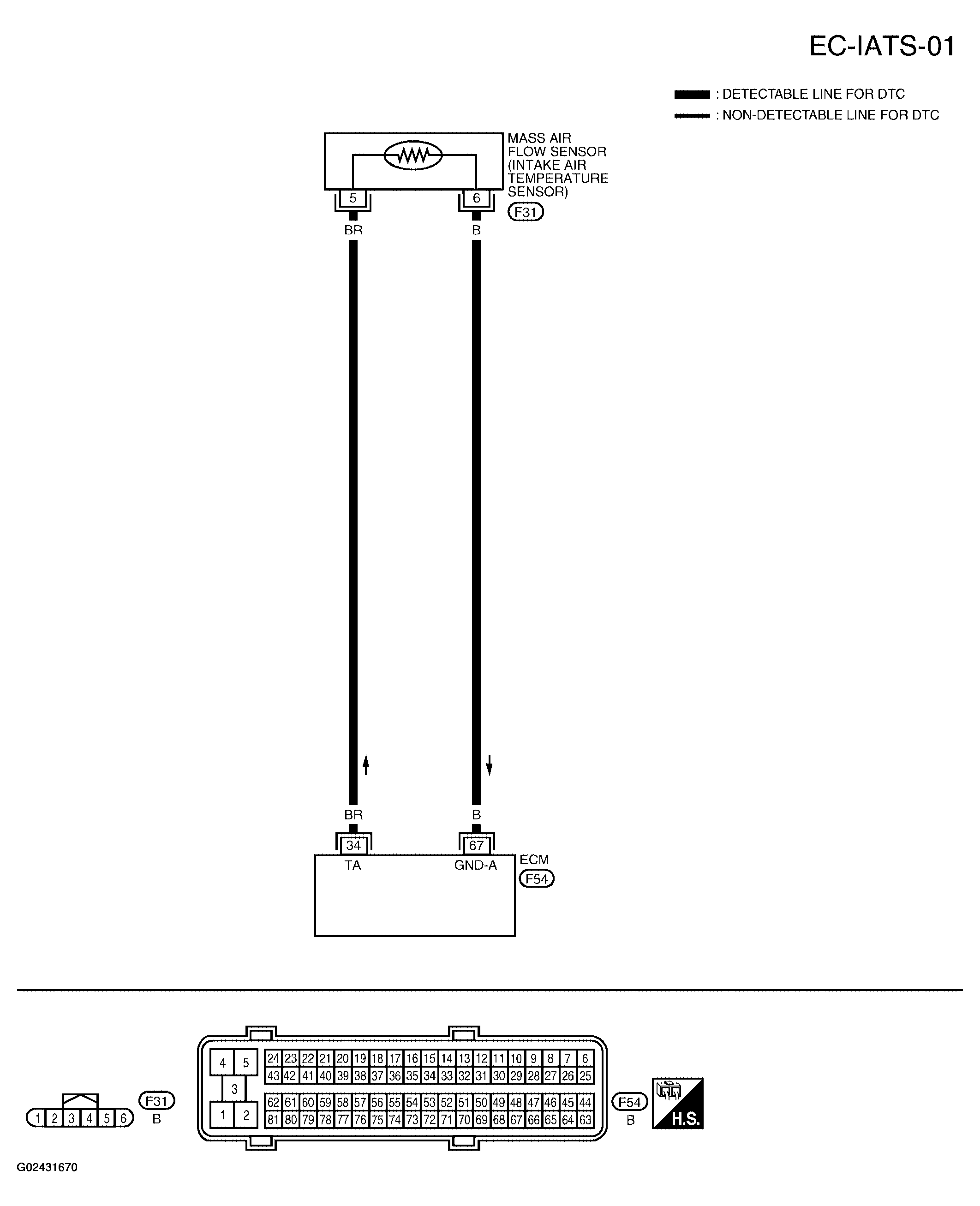

Fig 1: Wiring Diagram - Intake Air Temperature Sensor (EC-IATS-01)

G02431670

Courtesy of NISSAN MOTOR CO., U.S.A.
