Disassembly and Assembly: Disassembly

  1. Remove spring from steering column assembly and tilt lever.
  2. Remove fixing bolt of upper joint, then remove upper joint from steering column assembly.

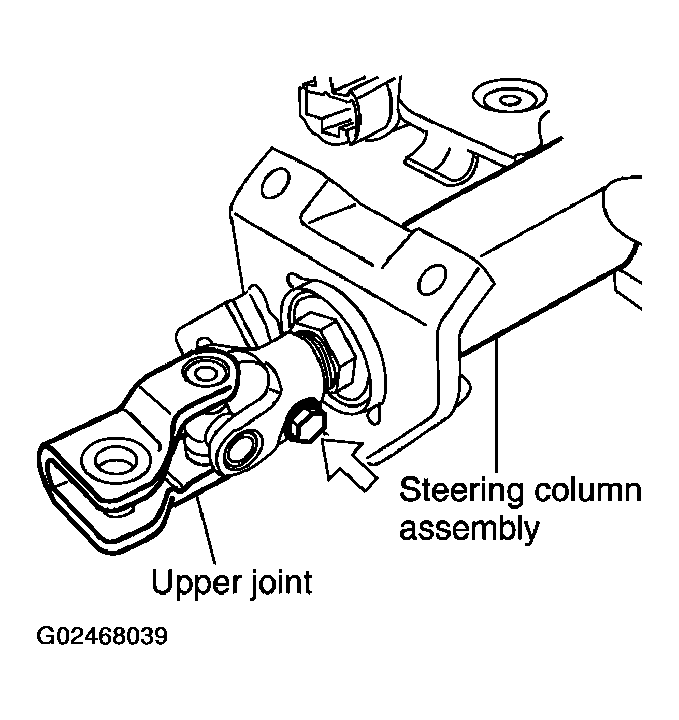

    Fig 1: Removing Fixing Bolt Of Upper Joint
    G02468039Courtesy of NISSAN MOTOR CO., U.S.A.
