Component Inspection

  1. Turn ignition switch "OFF".
  2. Disconnect AWD lock switch harness connector.
  3. Operate AWD lock switch and check continuity between AWD lock switch harness connector M55 terminals 1 and 3.

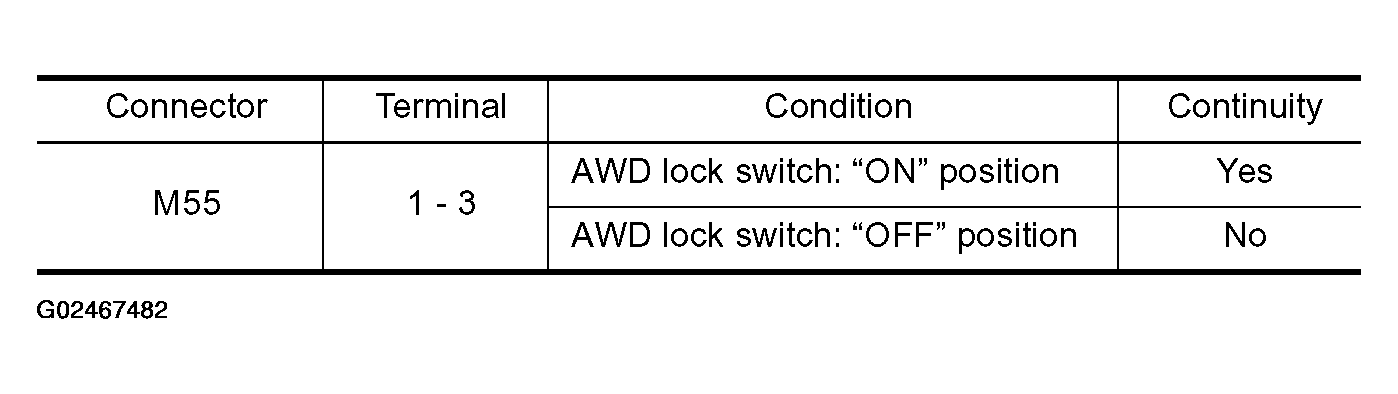

    Fig 1: Connector Terminal Condition Specification Chart
    G02467482Courtesy of NISSAN MOTOR CO., U.S.A.

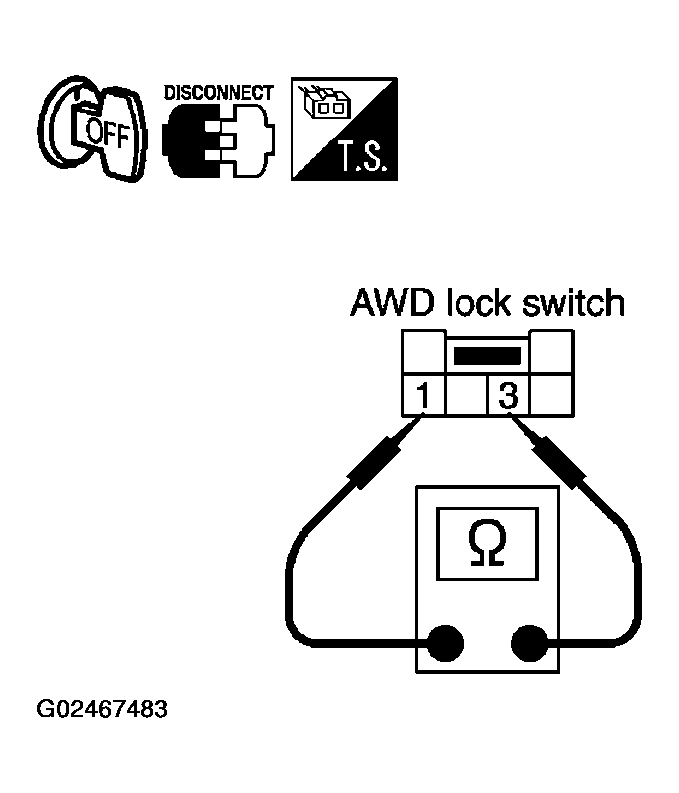

    Fig 2: Checking AWD Lock Switch Harness Connector Terminals
    G02467483Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace AWD lock switch.
