Transfer Oil: Replacement: Filling

Remove filler plug and add gear oil until oil level reaches the specified limit near filler plug mounting hole.
1. Oil capacity: Approx. 0.31 l (5/8 US pt, 1/2 Imp pt)

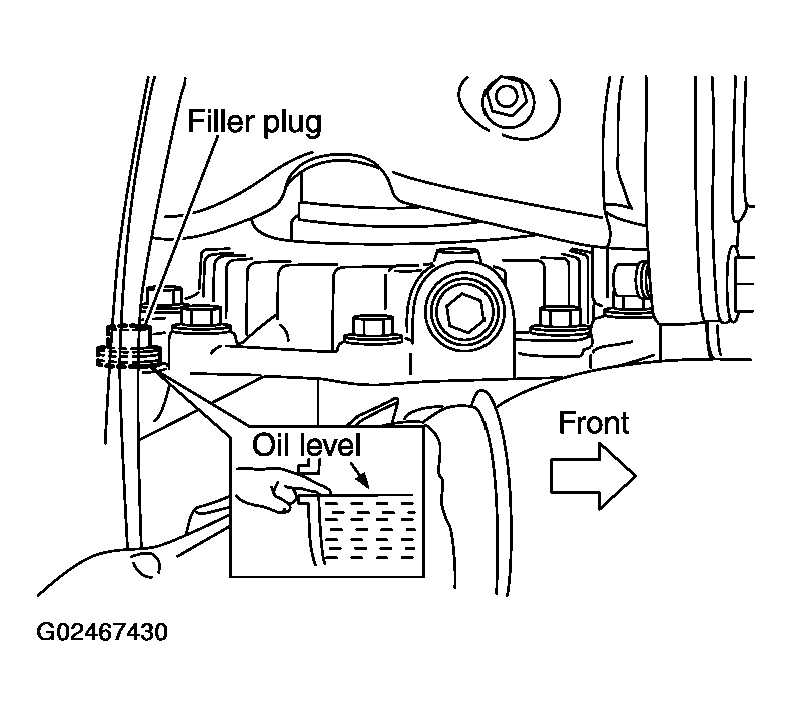

  Fig 1: Removing Filler Plug & Add Gear Oil
  Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Carefully fill the oil. (Fill up for approx. 3 minutes)
Leave the vehicle for 3 minutes, and check the oil level again.
Apply sealant to filler plug. Install filler plug to transfer and tighten to the specified torque. Refer to COMPONENTS .
- Use Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

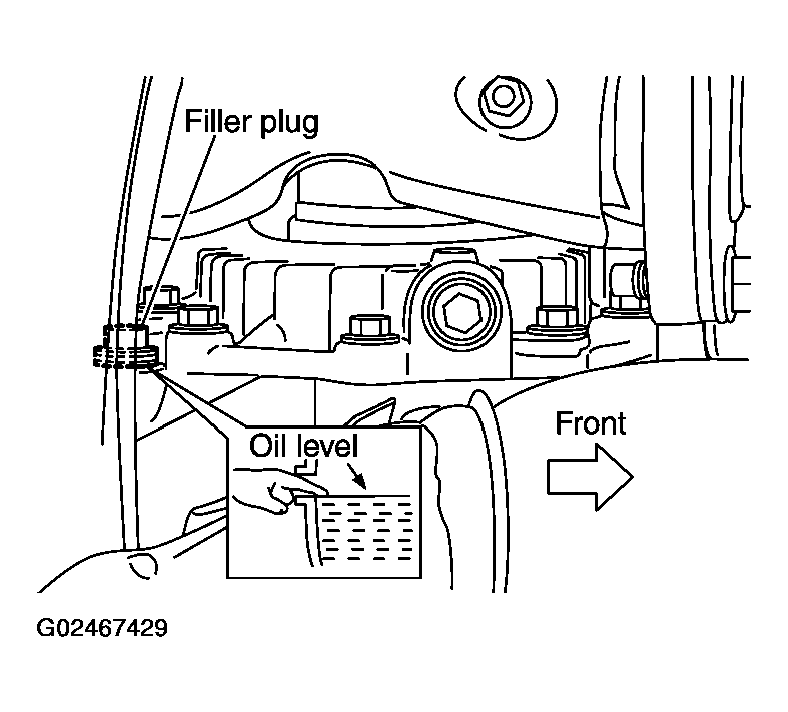

Fig 2: Check Oil Level From Filler Plug Mounting Frame
Courtesy of NISSAN MOTOR CO., U.S.A.
